Description

Price

1

MASTER CYLINDER SUB ASSY

4NK-W2587-02-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

HOSE, BRAKE 1

4NK-25872-01-00

$99.99

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

JOINT

4NK-25885-00-00

Unavailable

18

BOLT,SOCKET

91317-06020-00

Unavailable

19

HOSE, BRAKE 2

4NK-25873-01-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

$11.49

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

HOLDER, BRAKE HOSE 1

4NK-25875-00-00

Unavailable

23

HOLDER, BRAKE HOSE

4NK-25886-00-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

$11.49

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

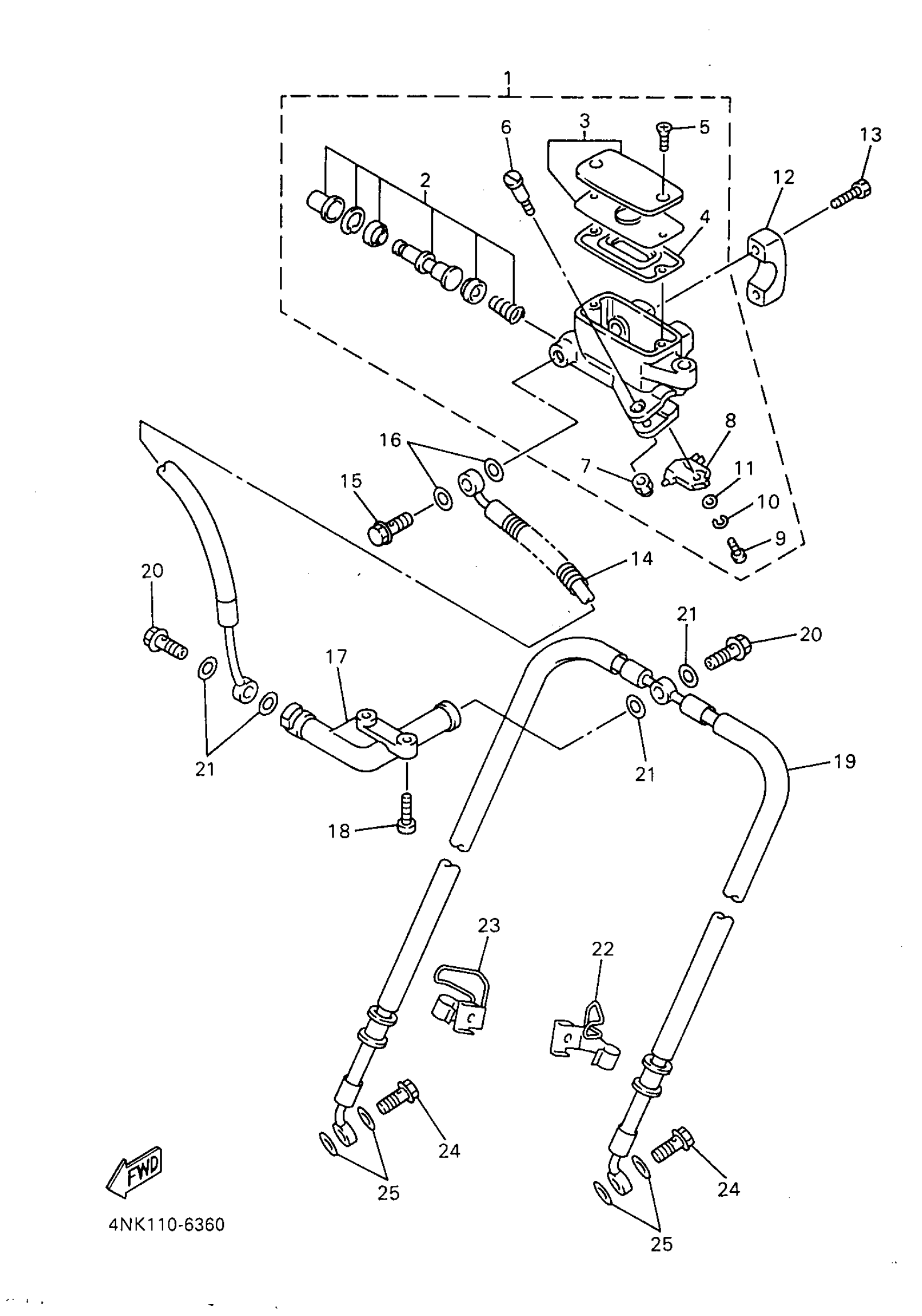

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MASTER

RESERVOIR CAP SET

DIAPHRAGM, RESERVOIR

SCREW

BOLT, LEVER

NUT, U(4NK)

FRONT STOP SWITCH ASSY

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

WASHER, PLAIN (646)

BRACKET, MASTER CYLINDER

BOLT,SOCKET HEAD

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

JOINT

BOLT,SOCKET

HOSE, BRAKE 2

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

HOLDER, BRAKE HOSE

BOLT, UNION(3GM)

WASHER, PLATE(481)
