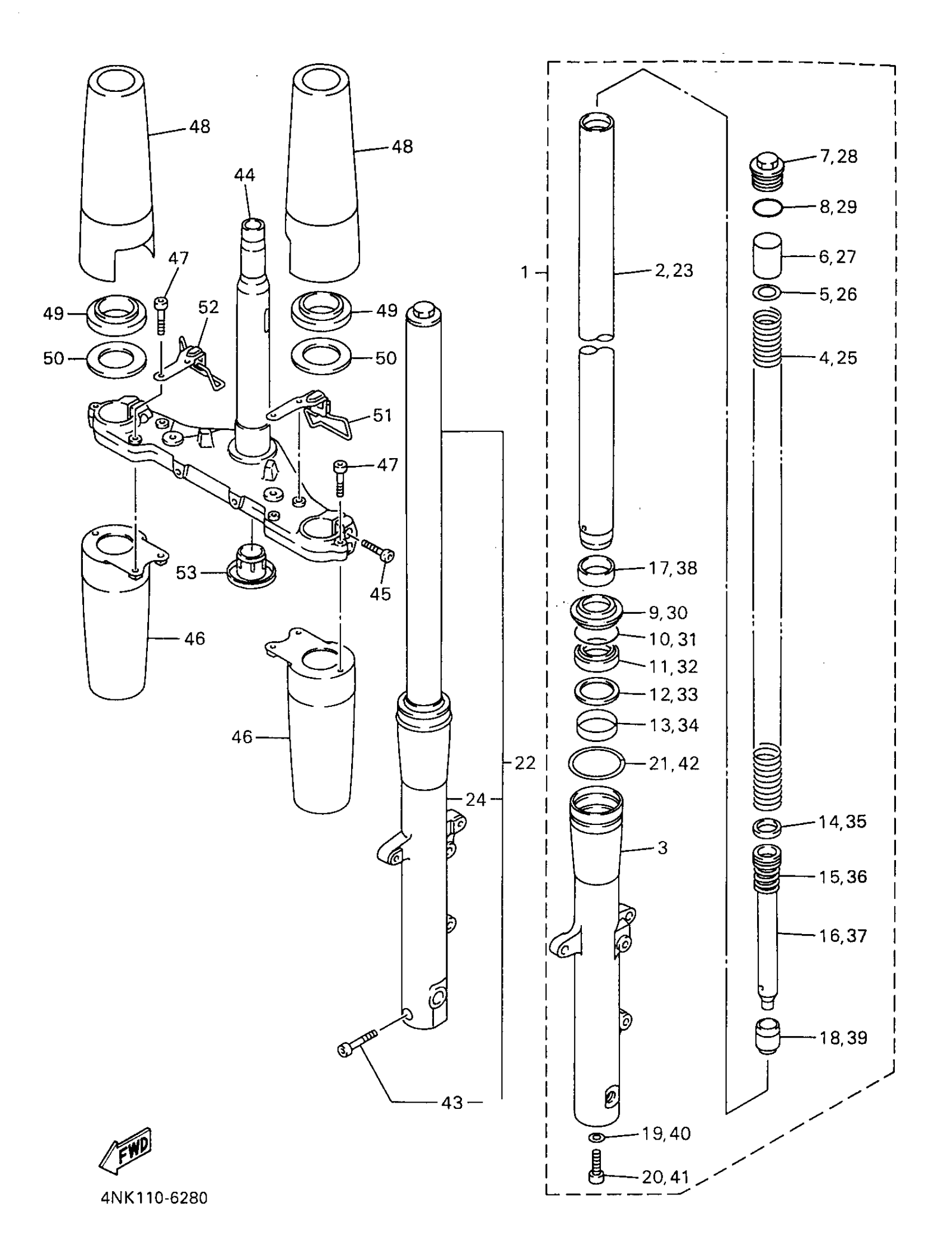

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY L

4NK-23102-01-00

Unavailable

2

. INNER TUBE COMP 1

4NK-23110-00-00

Unavailable

3

. TUBE, OUTER (LEFT)

4NK-23126-00-00

Unavailable

4

SPRING, FRONT FORK

4NK-23141-01-00

Unavailable

5

. SEAT, SPRING UPPER

4NK-23142-00-00

Unavailable

6

. SPACER

4NK-23118-00-00

Unavailable

7

. BOLT, CAP

4NK-23111-00-00

Unavailable

8

O-RING

4NK-23147-00-00

$6.99

9

SEAL, DUST

4NK-23144-00-00

Unavailable

10

RING, SNAP

34L-23153-00-00

Unavailable

11

OIL SEAL

4NK-23145-00-00

$27.99

12

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

13

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

14

RING, PISTON

4NK-23157-00-00

$9.99

15

SPRING, REBOUND

4NK-23151-00-00

Unavailable

16

. PISTON, FRONT FORK

4NK-23171-00-00

Unavailable

17

METAL, SLIDE 2

4NK-23135-01-00

Unavailable

18

. SPACER, OIL LOCK

4NK-23166-00-00

Unavailable

19

GASKET

3MA-23163-10-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

21

GUIDE, BOOT

4NK-23193-00-00

Unavailable

22

FRONT FORK ASY R

4NK-23103-01-00

Unavailable

23

. INNER TUBE COMP 1

4NK-23110-00-00

Unavailable

24

. TUBE, OUTER (RIGHT)

4NK-23136-00-00

Unavailable

25

SPRING, FRONT FORK

4NK-23141-01-00

Unavailable

26

. SEAT, SPRING UPPER

4NK-23142-00-00

Unavailable

27

. SPACER

4NK-23118-00-00

Unavailable

28

. BOLT, CAP

4NK-23111-00-00

Unavailable

29

O-RING

4NK-23147-00-00

$6.99

30

SEAL, DUST

4NK-23144-00-00

Unavailable

31

RING, SNAP

34L-23153-00-00

Unavailable

32

OIL SEAL

4NK-23145-00-00

$27.99

33

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

34

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

35

RING, PISTON

4NK-23157-00-00

$9.99

36

SPRING, REBOUND

4NK-23151-00-00

Unavailable

37

. PISTON, FRONT FORK

4NK-23171-00-00

Unavailable

38

METAL, SLIDE 2

4NK-23135-01-00

Unavailable

39

. SPACER, OIL LOCK

4NK-23166-00-00

Unavailable

40

GASKET

3MA-23163-10-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

42

GUIDE, BOOT

4NK-23193-00-00

Unavailable

43

BOLT, SOCKET

91314-08035-00

Unavailable

44

UNDER BRACKET COMP.

4YP-23340-00-00

Unavailable

45

BOLT, SOCKET

91317-08030-00

Unavailable

46

COVER, LOWER 1

4NK-23123-00-00

Unavailable

47

BOLT, HEXAGON SOCKET HEAD

4NK-23181-10-00

Unavailable

48

COVER, UPPER 1

4NK-23121-00-00

Unavailable

49

GASKET

4NK-23163-00-00

Unavailable

50

WASHER, FELT

4NK-23165-00-00

Unavailable

51

GUIDE, CABLE

4NK-2331E-00-00

Unavailable

52

GUIDE, CABLE

4NK-23389-00-00

Unavailable

53

COVER, LOWER 1

4KM-23123-01-00

Unavailable
