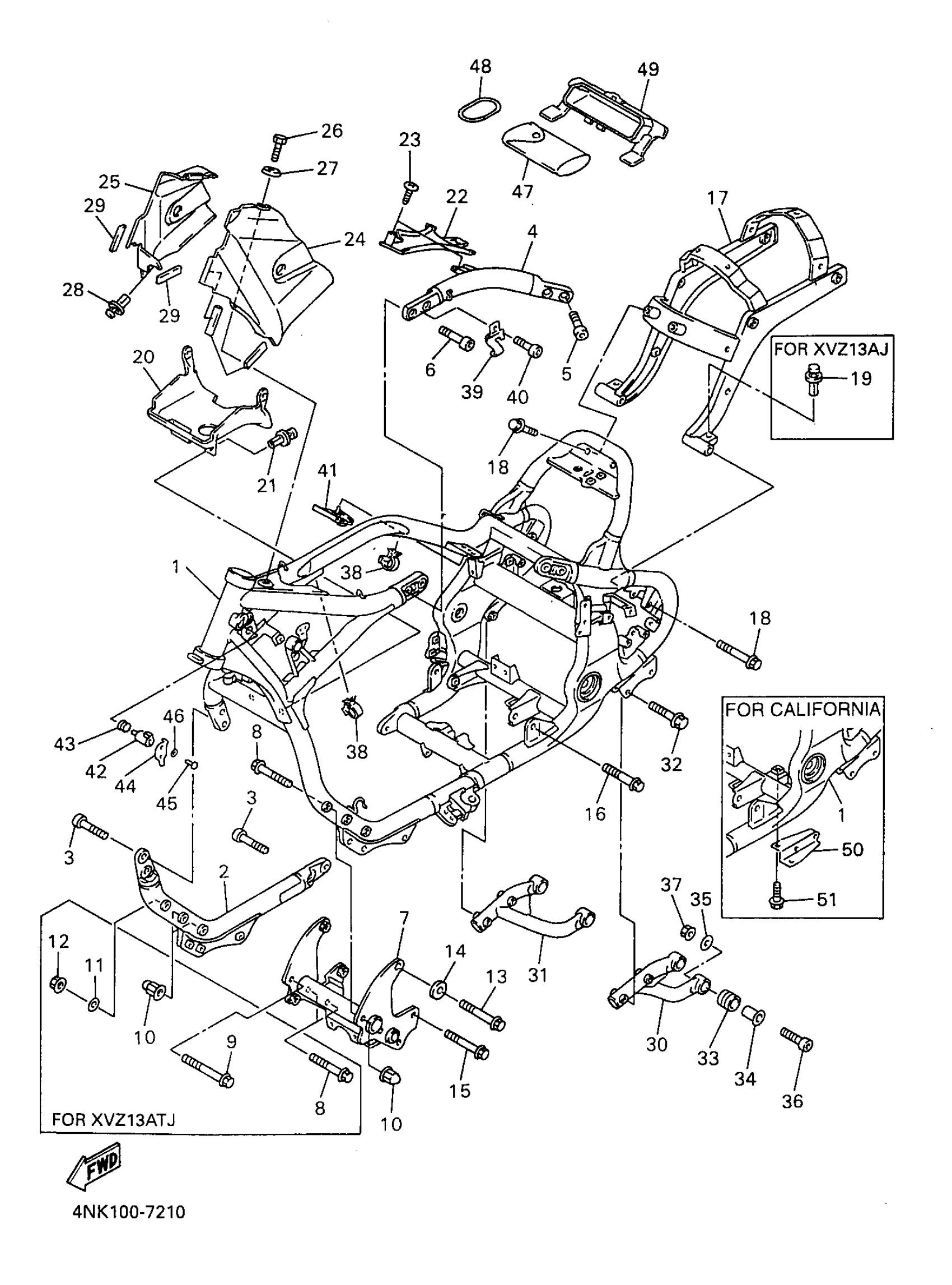

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 FRAME Diagram
#
1
FRAME COMP.
4YU-21110-01-33
Unavailable
1
FRAME COMP.
4NK-21110-11-33
Unavailable
2
DOWN TUBE COMP. 2
4NK-21150-00-33
Unavailable
4
FRAME, REAR
4NK-21120-00-33
Unavailable
7
CROSS BAR COMPLETE
4NK-2141V-00-00
Unavailable
8
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
8
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
13
BOLT, WASHER BASED(4EB)
90105-10788-00
Unavailable
14
WASHER(4NK)
90209-12341-00
Unavailable
15
BOLT, WASHER BASED(4EB)
90105-10788-00
Unavailable
16
BOLT, WASHER BASED (26H)
90105-12252-00
Unavailable
17
REAR FRAME COMP.
4XY-21190-02-00
Unavailable
18
BOLT, FLANGE
95817-10035-00
Unavailable
19
RIVET(4JH)
90269-07076-00
Unavailable
20
COVER
4NK-2117F-00-00
Unavailable
21
RIVET(52W)
90269-05049-00
Unavailable
22
COVER 2
4NK-2117M-01-00
Unavailable
23
SCREW, TRUSS TAP.
97707-60016-00
Unavailable
24
COVER, SIDE 5
4NK-2171E-00-33
Unavailable
25
COVER, SIDE 6
4NK-2171X-00-33
Unavailable
26
BOLT(4TW)
97017-05016-00
Unavailable
27
WASHER
90209-06012-00
Unavailable
28
RIVET(4JH)
90269-07076-00
Unavailable
29
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
30
STAY, MUFFLER 1
4NK-21445-00-00
Unavailable
31
STAY, MUFFLER 2
4NK-21446-00-00
Unavailable
32
BOLT, WASHER BASED(36Y)
90105-08310-00
Unavailable
33
DAMPER, FOOTREST 2
36Y-27424-01-00
Unavailable
34
COLLAR
90387-10048-00
Unavailable
35
WASHER, PLATE (4X7)
90201-105A2-00
Unavailable
36
BOLT,SOCKET
91317-10040-00
Unavailable
37
NUT(6TD)
95337-10600-00
Unavailable
38
CLAMP(4GY)
90464-20191-00
Unavailable
39
CLAMP
4NK-82594-00-00
Unavailable
40
BOLT,SOCKET
91317-06010-00
Unavailable
41
PROTECTOR
4NK-2117G-00-00
Unavailable
42
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
43
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
44
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
45
RIVET 214234830000
90269-04003-00
Unavailable
46
WASHER, CONICAL SPRING (3J3)
90208-04029-00
Unavailable
47
TOOL KIT
4NK-28100-00-00
Unavailable
48
O-RING (70E)
93210-54534-00
Unavailable
49
BOX, TOOL
4NK-28173-00-00
Unavailable
50
BRACKET, CANISTER
4NK-2134X-00-00
Unavailable
51
BOLT, FLANGE
95817-06012-00
Unavailable
51
TOOL
UNA-VAILA-BL-EI
Unavailable
