Description

Price

1

FRONT FLASHER LIGHT ASSY 2

4WM-83320-01-00

$118.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-09-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

. SCREW, PAN HEAD

98507-03020-00

Unavailable

7

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

8

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$117.99

9

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

10

LENS, FLASHER

42X-83312-09-00

Unavailable

11

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

12

. LENS, RIM

42X-83363-00-00

Unavailable

13

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

14

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

15

NUT, FLANGE(7NB)

95780-06500-00

$2.60

16

STAY, 8

4NK-2317V-00-00

Unavailable

17

BOLT,SOCKET

91314-08016-00

Unavailable

18

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

19

PLUG, BLIND

4NK-83345-00-00

Unavailable

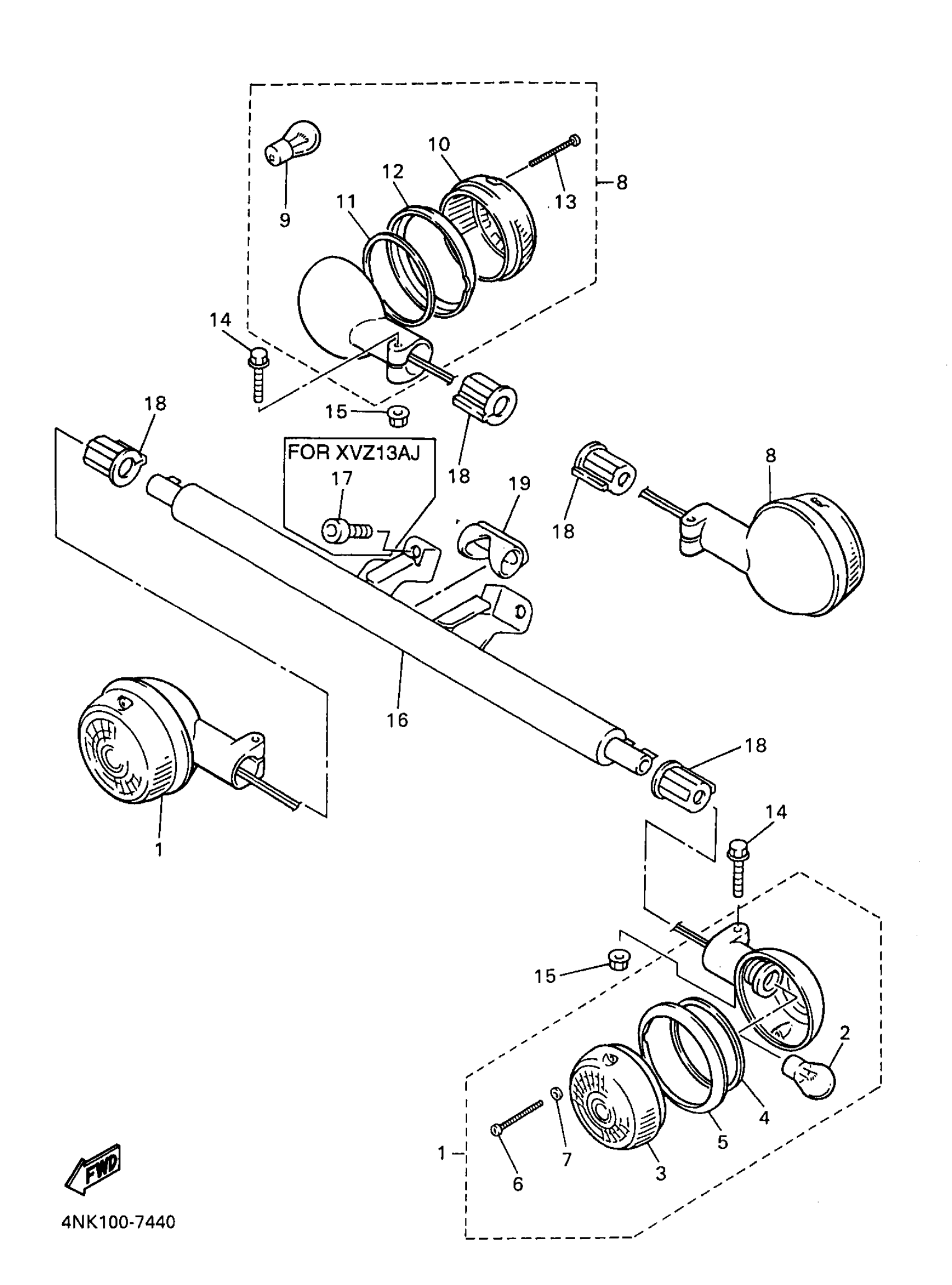

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 FLASHER LIGHT Diagram

FRONT FLASHER LIGHT ASSY 2

BULB, TAIL LAMP (12V 32/3CP)

LENS, FLASHER

GASKET, FLASHER LENS

. LENS, RIM

. SCREW, PAN HEAD

WASHER, SPECIAL

REAR FLASHER LIGHT ASSY 1

. BULB (12V-32CP)

LENS, FLASHER

GASKET, FLASHER LENS

. LENS, RIM

SCREW, COUNTERSUNK

BOLT, FLANGE(4AS)

NUT, FLANGE(7NB)

STAY, 8

BOLT,SOCKET

DAMPER, FLASHER 1

PLUG, BLIND
