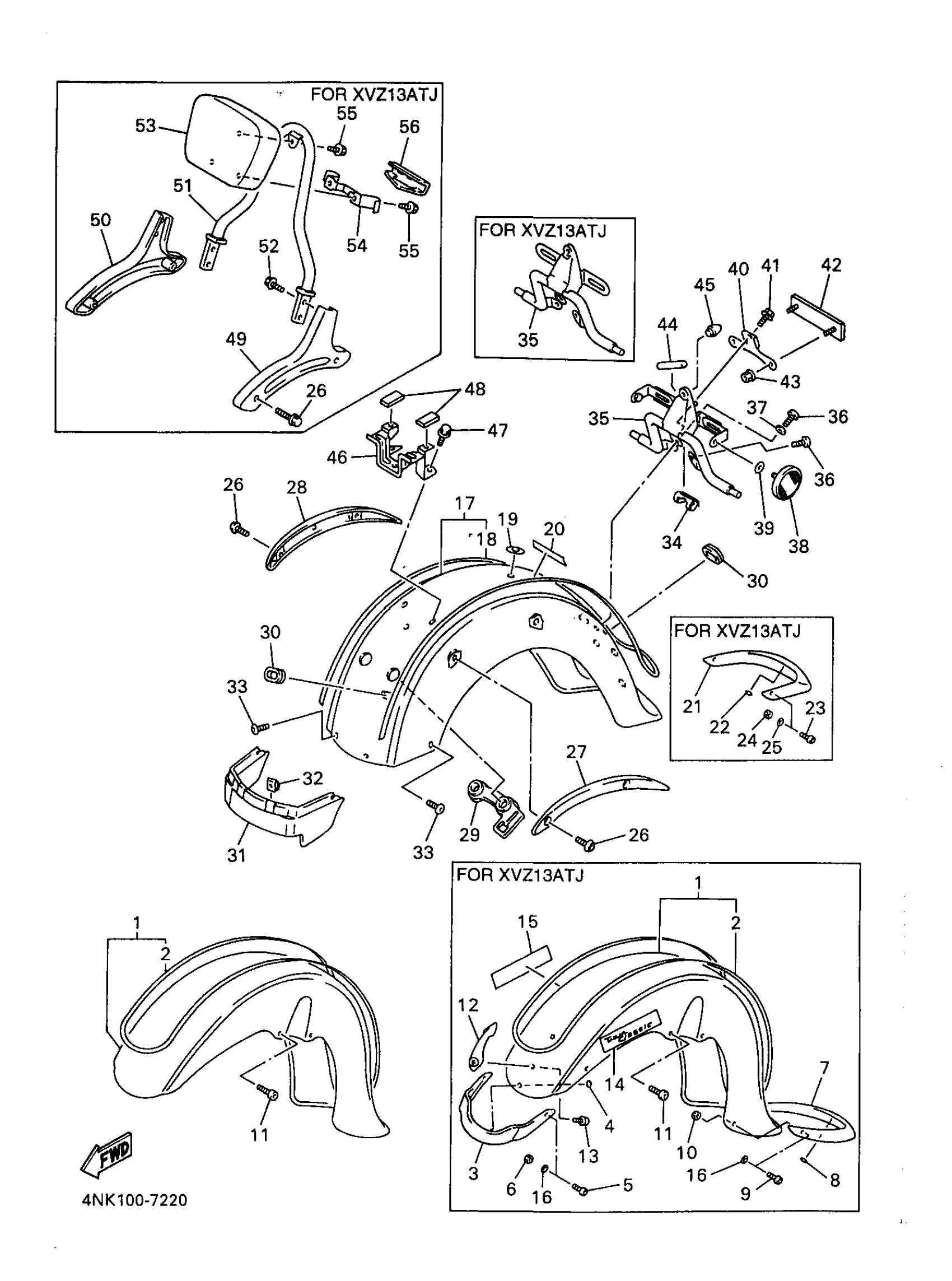

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 FENDER Diagram
#
1
FRONT FENDER ASSEMBLY (ENTICER MAROON) (SHIROBAI WHITE)
4NK-Y2150-40-3X
Unavailable
1
FRONT FENDER ASSEMBLY (MILKY BROWN) (URUSHI BLACK)
4NK-Y2150-50-2X
Unavailable
1
FRONT FENDER ASSEMBLY (URUSHI BLACK)
4NK-Y2150-60-JW
Unavailable
1
FRONT FENDER ASSEMBLY (MATURE RED) (NEW WHITE)
4NL-Y2150-60-2X
Unavailable
1
FRONT FENDER ASSY
4NL-Y2150-70-3X
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MATURE RED)
4NK-21570-01-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (STAR BLUE METALLIC)
4NK-21570-11-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (URUSHI BLACK)
4NK-21570-30-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MILKY BROWN)
4NL-21570-10-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (ELEGANT BROWN)
4NL-21570-20-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
11
BOLT,SOCKET
91314-08025-00
Unavailable
12
MASCOT
4NL-21577-00-00
Unavailable
13
SCREW, PAN
98517-06012-00
Unavailable
14
EMBLEM 3
4NL-2152A-10-00
Unavailable
15
EMBLEM
4NL-21578-10-00
Unavailable
16
SEAL 1
4NL-21575-10-00
Unavailable
17
REAR FENDER C0MP. (MILKY BROWN) (URUSHI BLACK)
4NK-Y2161-60-4X
Unavailable
17
REAR FENDER C0MP. (ENTICER MAROON) (SHIROBAI WHITE)
4NK-Y2161-70-5X
Unavailable
17
REAR FENDER C0MP. (URUSHI BLACK)
4NK-Y2161-A0-JW
Unavailable
17
REAR FENDER C0MP. (MATURE RED) (NEW WHITE)
4NL-Y2161-00-0X
Unavailable
17
REAR FENDER C0MP. (ELEGANT BROWN) (BLACK 2)
4NL-Y2161-10-6X
Unavailable
18
. GRAPHIC SET, REAR FENDER (MATURE RED)
4NK-2165A-01-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (STAR BLUE METALLIC)
4NK-2165A-11-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (URUSHI BLACK)
4NK-2165A-30-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (MILKY BROWN)
4NL-2165A-10-00
Unavailable
18
. GRAPHIC SET, REAR FENDER (ELEGANT BROWN)
4NL-2165A-20-00
Unavailable
19
SEAL 2
4NK-21735-00-00
Unavailable
20
EMBLEM, YAMAHA
99241-00080-00
Unavailable
20
EMBLEM, YAMAHA
99246-00080-00
Unavailable
20
EMBLEM, YAMAHA
99247-00080-00
Unavailable
21
FLAP
4NL-21621-10-00
Unavailable
25
SEAL 1
4NL-21575-10-00
Unavailable
26
BOLT, WITH WASHER
97527-08516-00
Unavailable
26
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
27
STAY 1
4NK-2164F-00-00
Unavailable
28
STAY 2
4NK-2164G-00-00
Unavailable
29
DAMPER
4NK-21649-00-00
Unavailable
30
GROMMET (438)
90480-15061-00
Unavailable
31
FLAP (MILKY BROWN)
4NK-21621-00-3G
Unavailable
31
FLAP (MATURE RED)
4NK-21621-00-FE
Unavailable
31
FLAP (URUSHI BLACK)
4NK-21621-00-JW
Unavailable
31
FLAP (ELEGANT BROWN)
4NK-21621-00-TY
Unavailable
31
FLAP (SHIROBAI WHITE)
4NK-21621-00-Y5
Unavailable
32
NUT, SPRING(4ES)
90183-06069-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
PLUG, BLIND
4NK-83345-00-00
Unavailable
35
STAY, 9
4NK-2317W-00-00
Unavailable
35
STAY, 9
4NL-2317W-00-00
Unavailable
36
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
37
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
38
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
39
WASHER PLATE 829771780000
90201-05033-00
Unavailable
40
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
41
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
42
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
HOSE (583)
90446-07114-00
Unavailable
45
DAMPER 2
5A8-21639-00-00
Unavailable
46
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
47
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
48
DAMPER, SEAT
509-24724-00-00
Unavailable
49
GRIP 1
4NL-F164A-00-00
Unavailable
50
GRIP 2
4NL-F164E-00-00
Unavailable
51
STAY 1
4NL-F164F-10-00
Unavailable
52
BOLT, FLANGE (3JPE)
95024-08016-00
Unavailable
53
BACK REST ASSEMBLY
4NL-2840F-10-00
Unavailable
54
STAY 2
4NL-F164G-00-00
Unavailable
55
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
56
EMBLEM
4NL-24786-00-00
Unavailable
