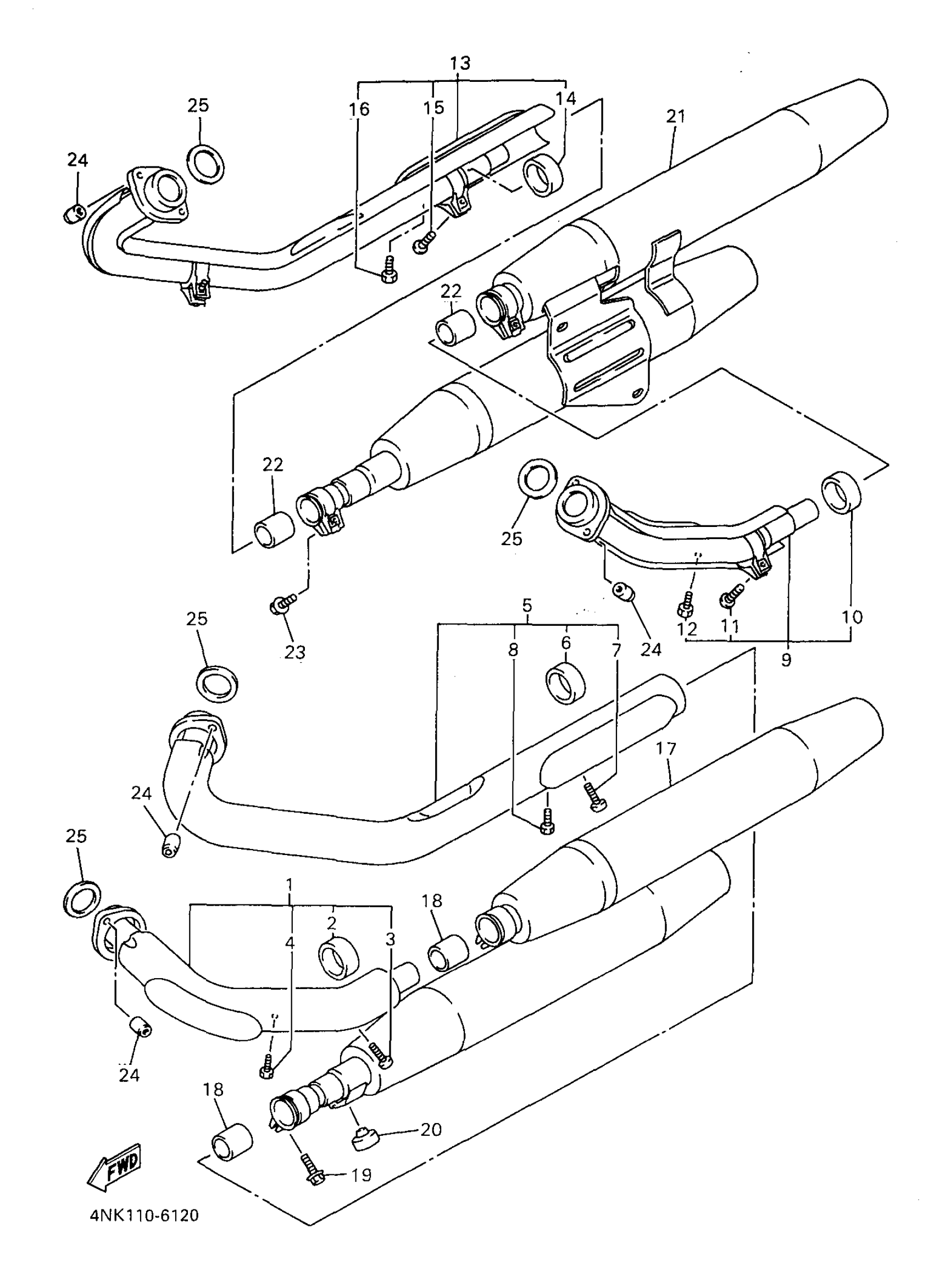

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

4NK-14610-01-00

Unavailable

2

GASKET, MUFFLER

4NK-14714-00-00

$20.47

3

BOLT, BUTTON

92017-08020-00

$5.47

4

BOLT (11T)

90101-06576-00

$6.03

5

EXHAUST PIPE ASSY 2

4NK-14620-01-00

$349.38

6

GASKET, MUFFLER

4NK-14714-00-00

$20.47

7

BOLT, BUTTON

92017-08025-00

$5.75

8

BOLT (11T)

90101-06576-00

$6.03

9

EXHAUST PIPE ASSY 3

4NK-14630-00-00

Unavailable

10

GASKET, MUFFLER

4NK-14714-00-00

$20.47

11

BOLT, BUTTON

92017-08020-00

$5.47

12

BOLT (11T)

90101-06576-00

$6.03

13

EXHAUST PIPE ASSY 4

4NK-14650-01-00

Unavailable

14

GASKET, MUFFLER

4NK-14714-00-00

$20.47

15

BOLT, BUTTON

92017-08025-00

$5.75

16

BOLT (11T)

90101-06576-00

$6.03

17

MUFFLER COMP. 1

4NK-14703-02-00

Unavailable

18

GASKET, MUFFLER

4BH-14714-00-00

Unavailable

19

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

20

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

21

MUFFLER COMP. 2

4NK-14704-02-00

Unavailable

22

GASKET, MUFFLER

4BH-14714-00-00

Unavailable

23

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

24

NUT (371)

90179-08004-00

Unavailable

25

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable
