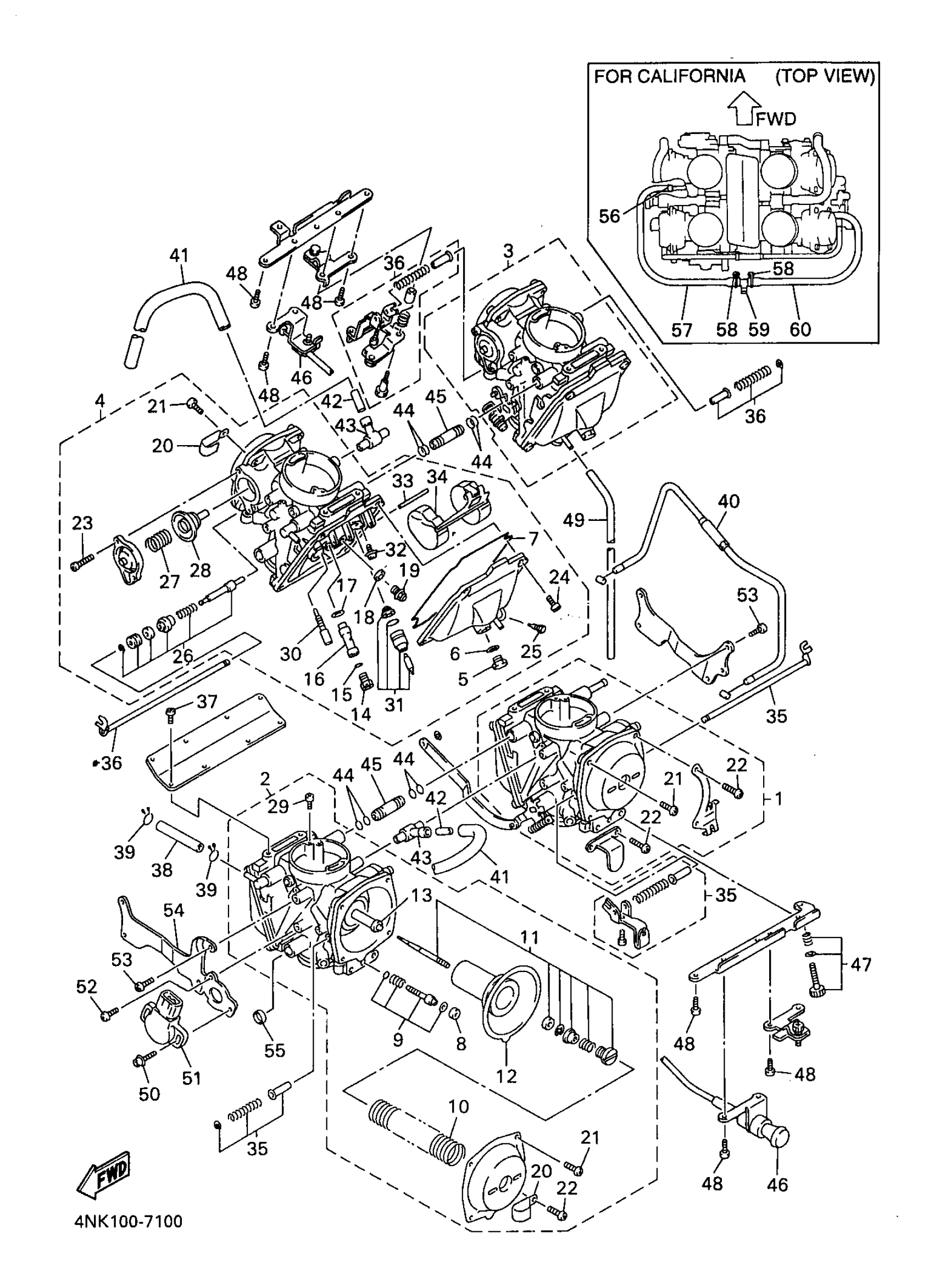

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
4NK-14901-01-00
Unavailable
1
CARBURETOR ASSY 1
4NK-14901-11-00
Unavailable
2
CARBURETOR ASSY 2
4NK-14902-01-00
Unavailable
2
CARBURETOR ASSY 2
4NK-14902-10-00
Unavailable
3
CARBURETOR ASSY 3
4NK-14903-01-00
Unavailable
3
CARBURETOR ASSY 3
4NK-14903-11-00
Unavailable
4
CARBURETOR ASSY 4
4NK-14904-01-00
Unavailable
4
CARBURETOR ASSY 4
4NK-14904-11-00
Unavailable
6
.. O-RING
22U-14561-00-00
Unavailable
8
CAP
3F9-14118-00-00
Unavailable
10
. SPRING, DIAPHRAGM
4NK-14933-00-00
Unavailable
11
. NEEDLE SET
4NK-1490J-00-00
Unavailable
12
DIAPHRAGM ASSY
4NK-14940-00-00
Unavailable
13
MAIN NOZZLE(0-0)
3DM-14141-30-00
Unavailable
14
JET, MAIN (# 95)
3G2-14231-19-00
Unavailable
15
O-RING
1AE-14227-00-00
Unavailable
16
HOLDER
1AE-14261-00-00
Unavailable
17
GASKET
1AE-14237-00-00
Unavailable
18
WASHER,MAIN JET
137-14153-00-00
Unavailable
19
SCREW
1HX-14565-00-00
Unavailable
20
PLATE
3XV-14243-00-00
Unavailable
21
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
21
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
21
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
22
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
22
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
22
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
23
SCREW, PAN HEAD
98517-04012-00
Unavailable
24
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
25
PLUG, DRAIN
12R-14191-00-00
Unavailable
26
STARTER SET
4DN-1410A-01-00
Unavailable
27
. SPRING
4NK-14935-00-00
Unavailable
28
DIAPHRAGM ASSY
22V-14940-00-00
Unavailable
29
. JET, MAIN (#115)
1HX-14231-23-00
Unavailable
30
JET, PILOT (# 20)
22F-14142-20-00
Unavailable
31
NEEDLE VALVE SET
3CF-14107-15-00
Unavailable
32
SCREW
1FN-14565-00-00
Unavailable
33
PIN, FLOAT
353-14186-00-00
Unavailable
34
FLOAT
1HX-14985-00-00
Unavailable
35
STARTER LEVER SET, 1
4NK-1490L-00-00
Unavailable
36
STARTER LEVER SET, 1
4NK-1490L-10-00
Unavailable
37
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
38
PIPE
4NK-14396-00-00
Unavailable
39
CLIP
4NK-14137-00-00
Unavailable
40
CABLE
4NK-14130-00-00
Unavailable
41
PIPE
4NK-14349-00-00
Unavailable
42
. RING
1FN-14918-00-00
Unavailable
43
. PIPE
1AE-14197-00-00
Unavailable
44
O-RING
36Y-14147-00-00
Unavailable
45
NIPPLE
1WG-14251-00-00
Unavailable
46
CABLE
4NK-14130-12-00
Unavailable
47
THROTTLE SCREW SET
4NK-14103-00-00
Unavailable
48
SCREW, PAN
98517-05012-00
Unavailable
49
PIPE
3JD-14197-00-00
Unavailable
50
SCREW
4HM-14216-00-00
Unavailable
51
THROTTLE SENSOR ASSY
4NK-85885-00-00
Unavailable
52
SCREW,FLAT
98707-05008-00
Unavailable
53
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
54
BRACKET
4NK-14867-00-00
Unavailable
55
SEAL
4HM-14239-00-00
Unavailable
56
CLIP
55X-14937-00-00
Unavailable
57
HOSE
4NK-14987-00-00
Unavailable
58
CLIP
90467-100A1-00
Unavailable
59
PIPE, JOINT
3H3-24376-00-00
Unavailable
60
HOSE
4NK-14987-10-00
Unavailable
