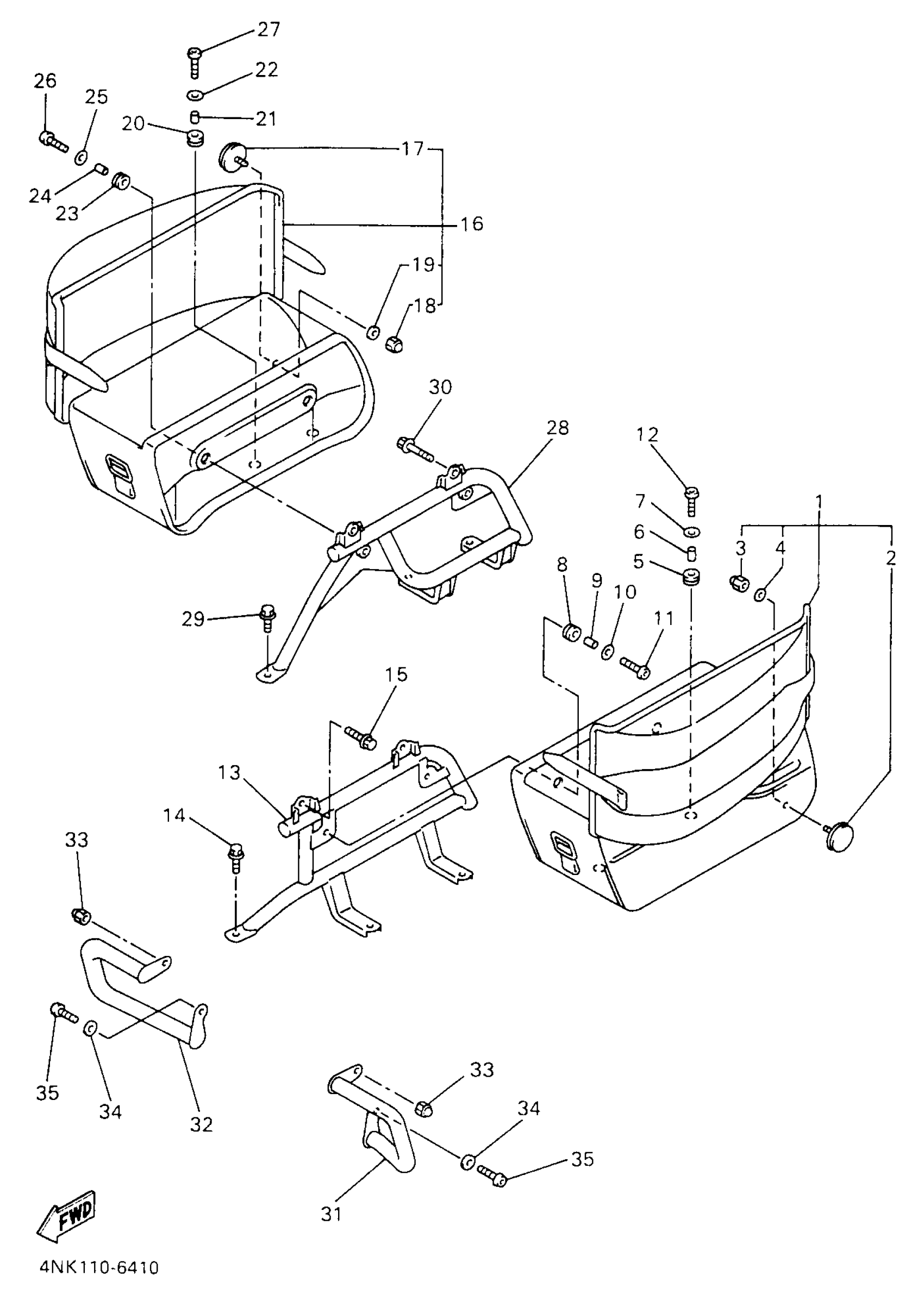

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 SADDLEBAG 1 XVZ13ATH Diagram

#

Description
Price

1

SADDLEBAG COMP. 1

4NL-F8430-00-00

Unavailable

2

REFLECTOR, REAR 1

449-85131-02-00

$24.04

3

NUT, CROWN(8V0)

90176-05059-00

$2.12

4

WASHER(1RW)

92907-05600-00

$0.77

5

GROMMET 437147470000

90480-20132-00

$6.97

6

COLLAR(88R)

90387-061Y7-00

$4.08

7

WASHER PLATE 248217570000

90201-06074-00

$5.86

8

GROMMET

90480-20338-00

$2.84

9

COLLAR (8A7)

90387-06518-00

$6.29

10

WASHER, PLATE

90201-06086-00

$5.47

11

BOLT, BUTTON HEAD

92017-06025-00

$6.22

12

BOLT, BUTTON

92017-06030-00

$6.22

13

FRAME, SADDLEBAG 1

4NL-F8473-00-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$3.71

15

BOLT, FLANGE

95817-08050-00

$2.93

16

SIDE BAG COMP.

4NL-F8440-00-00

Unavailable

17

REFLECTOR, REAR 1

449-85131-02-00

$24.04

18

NUT, CROWN(8V0)

90176-05059-00

$2.12

19

WASHER(1RW)

92907-05600-00

$0.77

20

GROMMET 437147470000

90480-20132-00

$6.97

21

COLLAR(88R)

90387-061Y7-00

$4.08

22

WASHER PLATE 248217570000

90201-06074-00

$5.86

23

GROMMET

90480-20338-00

$2.84

24

COLLAR (8A7)

90387-06518-00

$6.29

25

WASHER, PLATE

90201-06086-00

$5.47

26

BOLT, BUTTON HEAD

92017-06025-00

$6.22

27

BOLT, BUTTON

92017-06030-00

$6.22

28

FRAME, SADDLEBAG 2

4NL-F8474-00-00

Unavailable

29

BOLT, FLANGE

95817-08012-00

$3.71

30

BOLT, FLANGE

95817-08050-00

$2.93

31

GUARD, ENGINE 1

4NL-F8418-00-00

Unavailable

32

GUARD, ENGINE 2

4NL-F8419-00-00

Unavailable

33

NUT, CROWN(2GG)

90176-10075-00

Unavailable

34

WASHER(6TA)

92907-10600-00

Unavailable

35

BOLT, BUTTON

92017-10030-00

Unavailable
