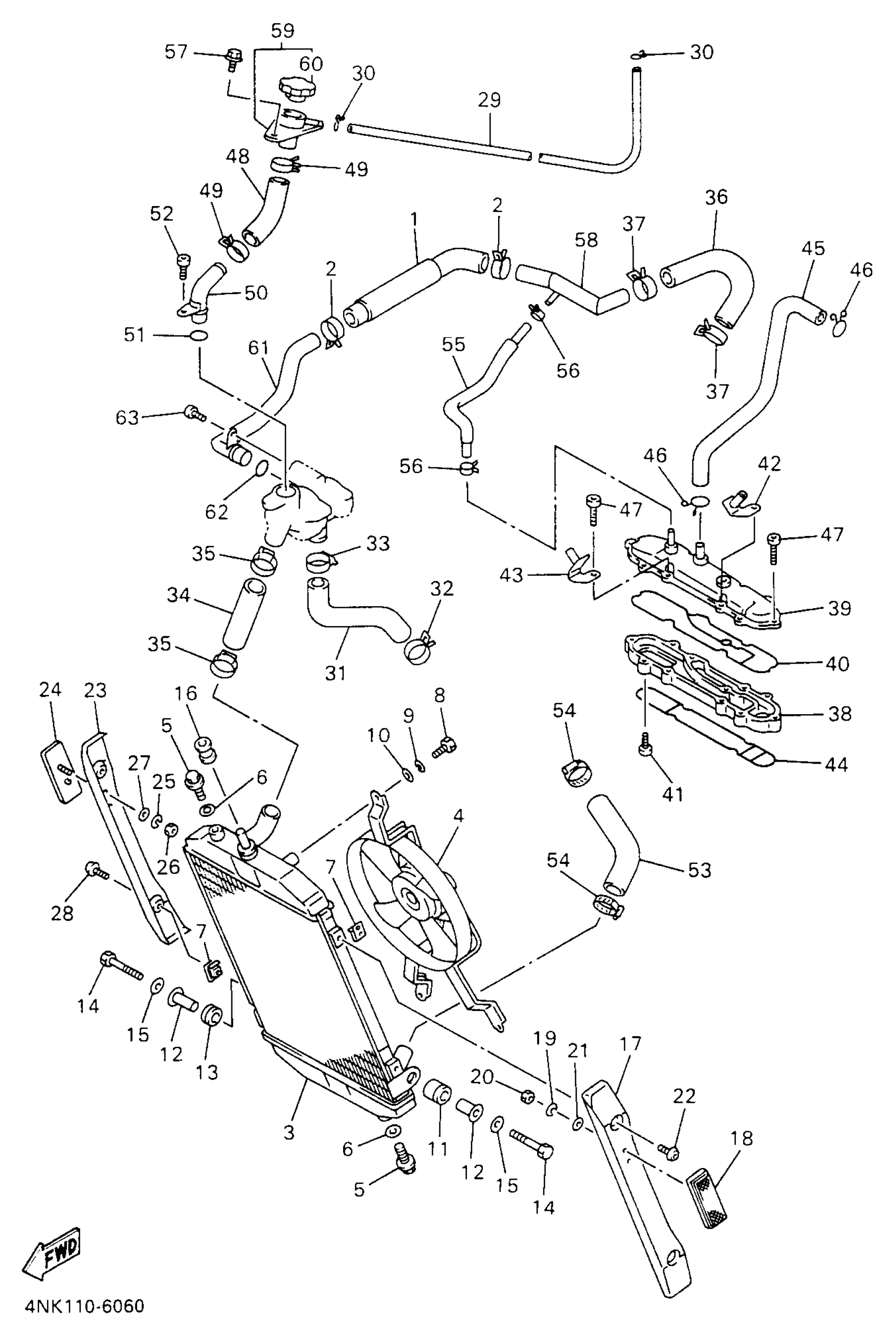

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 3

4NK-12578-00-00

Unavailable

2

CLIP (10V)

90467-23067-00

$7.49

3

RADIATOR ASSY

4NK-12461-02-00

Unavailable

4

BLOWER ASSY

4NK-12405-01-00

Unavailable

5

PLUG,DRAIN COCK

1AA-12561-00-00

$28.99

6

GASKET

1AA-12435-00-00

$8.99

7

NUT 1

4NK-12671-00-00

Unavailable

8

BOLT, HEXAGON

97017-06012-00

$3.76

9

WASHER, SPRING

92907-06100-00

$4.25

10

WASHER(6TA)

92907-06600-00

$2.72

11

DAMPER, RADIATOR

4NK-12465-00-00

Unavailable

12

COLLAR(3GM)

90387-0609L-00

Unavailable

13

GROMMET (4L0)

90480-19283-00

$8.49

14

BOLT(8BC)

97017-06040-00

$9.49

15

WASHER(6TA)

92907-06600-00

$2.72

16

GROMMET

90480-16284-00

Unavailable

17

RADIATOR COVER ASSY 1

4NK-1240J-00-00

Unavailable

18

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

21

. WASHER, PLAIN

92990-05200-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

23

RADIATOR COVER ASSY 2

4NK-1240K-00-00

Unavailable

24

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

27

. WASHER, PLAIN

92990-05200-00

Unavailable

28

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

29

HOSE (L1500)

90445-090F6-00

Unavailable

30

CLIP 101235600

90467-08003-00

Unavailable

31

HOSE 1

4NK-12576-00-00

Unavailable

32

CLIP (10V)

90467-23067-00

$7.49

33

HOSE CLAMP ASSY

90450-32015-00

Unavailable

34

HOSE 4 (L105.6)

4NK-12579-00-00

Unavailable

35

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

36

HOSE 2

4NK-12577-00-00

Unavailable

37

CLIP (10V)

90467-23067-00

$7.49

38

COVER 1

26H-1246A-03-00

Unavailable

39

COVER 2

26H-1246E-03-00

Unavailable

40

GASKET, HOUSING COVER 2

26H-12428-00-00

Unavailable

41

BOLT, SOCKET

91314-06016-00

Unavailable

42

STAY

4NK-14413-00-00

Unavailable

43

STAY 2

4NK-14414-00-00

Unavailable

44

GASKET, HOUSING COVER 1

26H-12427-00-00

Unavailable

45

PIPE, BREATHER 1

4NK-11166-00-00

Unavailable

46

CLIP (371)

90467-14015-00

Unavailable

47

BOLT, SOCKET

91314-06040-00

Unavailable

48

HOSE 6

4NK-12589-00-00

Unavailable

49

CLIP (10V)

90467-23067-00

$7.49

50

PIPE 4

4NK-12484-00-00

Unavailable

51

O-RING (716)

93210-18417-00

Unavailable

52

BOLT,SOCKET

91317-06010-00

Unavailable

53

HOSE 5

4NK-12588-00-00

Unavailable

54

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

55

HOSE 7

4NK-12551-00-00

Unavailable

56

CLIP(3BM)

90467-10135-00

Unavailable

57

BOLT, FLANGE

95817-06012-00

Unavailable

58

PIPE 1

4NK-12481-00-00

Unavailable

59

CONDUCTION ASSY

4NK-12590-00-00

Unavailable

60

CAP, RADIATOR

1B3-12462-00-00

Unavailable

61

PIPE 2

4NK-12482-00-00

Unavailable

62

O-RING (716)

93210-18417-00

Unavailable

63

BOLT,SOCKET

91317-06012-00

Unavailable
