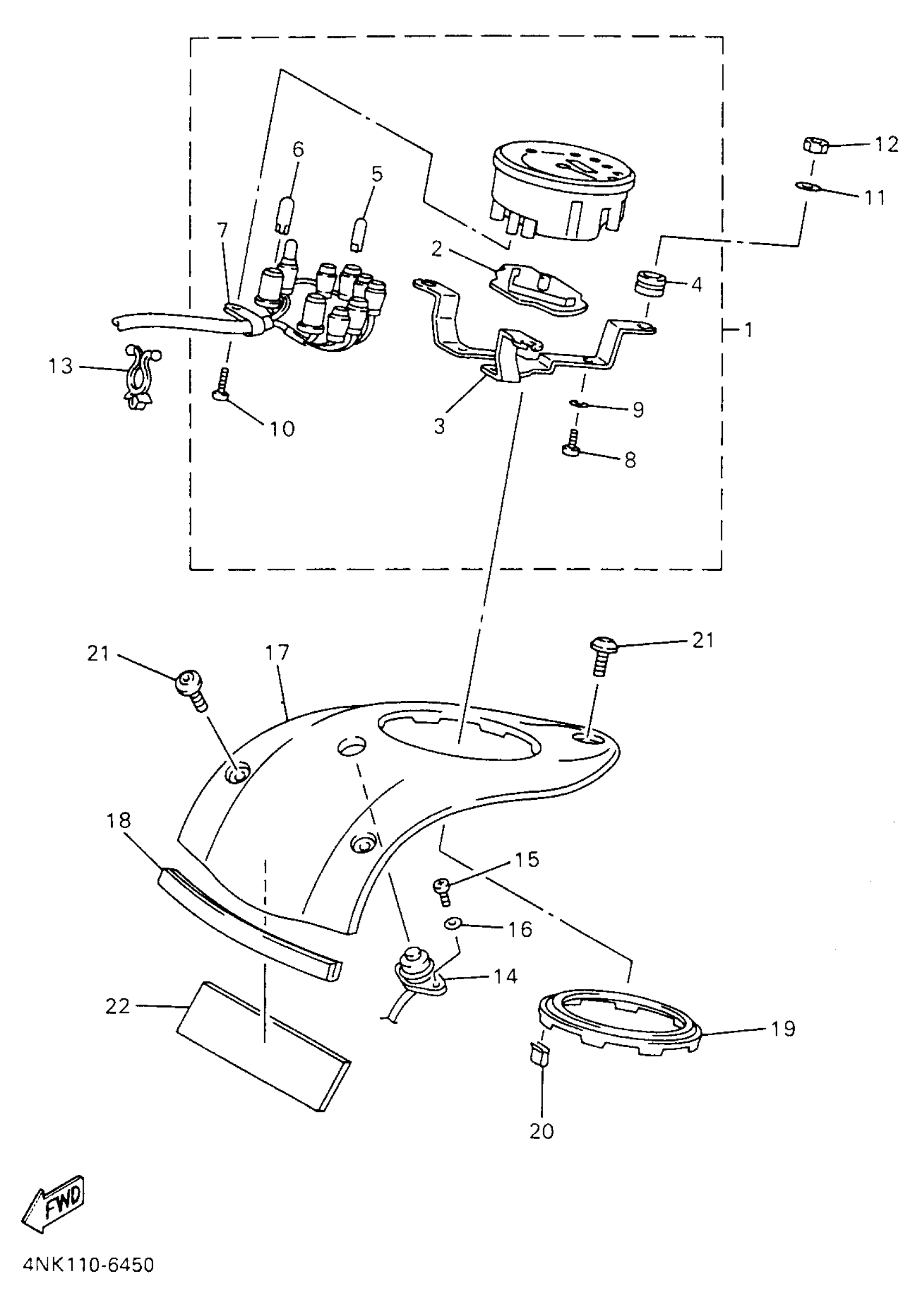

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 METER Diagram

#

Description
Price

1

SPEEDOMETER ASY

4NK-83500-01-00

Unavailable

2

COVER, METER 2

4NK-83579-00-00

$7.99

3

. BRACKET, METER

4NK-83519-00-00

Unavailable

4

DAMPER

4NK-83523-00-00

Unavailable

5

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

6

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

7

CLAMP

4NK-8357E-00-00

Unavailable

8

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

9

WASHER(6TA)

92907-04100-00

$8.49

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

12

NUT, HEXAGON

95317-05600-00

$2.34

13

CLAMP(J38)

90464-13066-00

$1.22

14

SWITCH, METER CONTROL

4NK-8358J-00-00

$148.99

15

SCREW, PAN

98517-05012-00

$4.73

16

WASHER(1RW)

92907-05600-00

Unavailable

17

COVER, METER

4NK-83559-00-00

Unavailable

18

MOLE 1

4NK-28345-00-00

Unavailable

19

MOLE 2

4NK-28346-00-00

Unavailable

20

GUIDE

1FK-2171H-00-00

Unavailable

21

SCREW(1XL)

90149-06264-00

Unavailable

22

DAMPER

11H-21747-00-00

Unavailable
