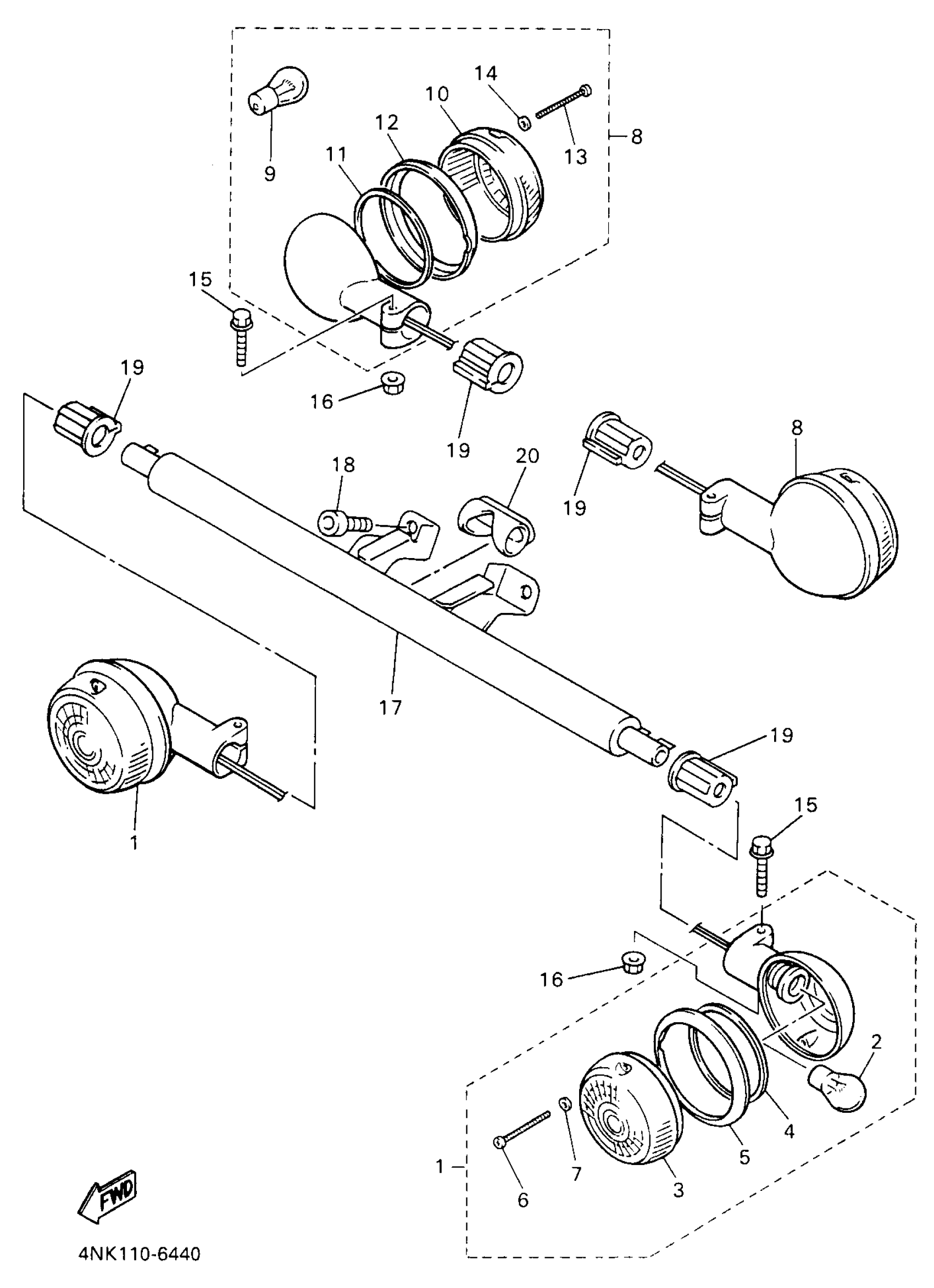

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 FLASHER LIGHT Diagram

FRONT FLASHER LIGHT ASSY 2

4WM-83320-01-00

$118.99

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

LENS, FLASHER

42X-83312-09-00

$14.49

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

. LENS, RIM

42X-83363-00-00

Unavailable

. SCREW, PAN HEAD

98507-03020-00

Unavailable

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$117.99

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

LENS, FLASHER

42X-83312-09-00

$14.49

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

. LENS, RIM

42X-83363-00-00

Unavailable

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

WASHER, SPECIAL

3AA-84327-00-00

Unavailable

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

STAY, 8

4NK-2317V-00-00

Unavailable

BOLT,SOCKET

91314-08016-00

Unavailable

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

PLUG, BLIND

4NK-83345-00-00

Unavailable
