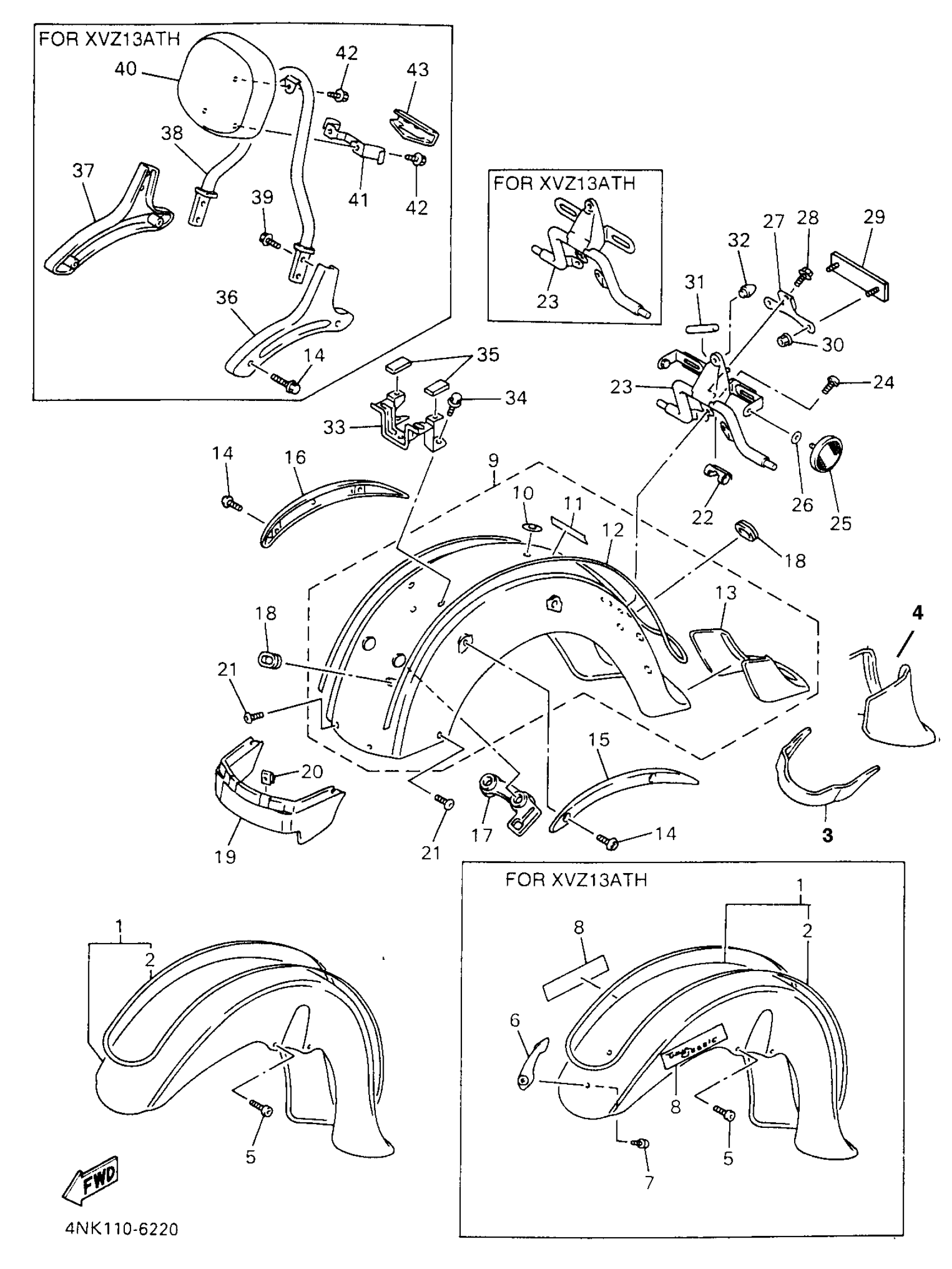

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 FENDER Diagram
#
1
FRONT FENDER ASSEMBLY (MATURE RED)
4NK-Y2150-30-0X
Unavailable
1
FRONT FENDER ASSEMBLY (STAR BLUE METALLIC)
4NK-Y2150-40-1X
Unavailable
1
FRONT FENDER ASSEMBLY
4NK-Y2150-50-33
Unavailable
1
FRONT FENDER ASSEMBLY (DARK BLUE COCKTAIL 2)
4NL-Y2150-20-0X
Unavailable
1
FRONT FENDER ASSEMBLY (MILKY BROWN)
4NL-Y2150-30-1X
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MATURE RED)
4NK-21570-01-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (STAR BLUE METALLIC)
4NK-21570-11-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4NK-21570-21-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK BLUE COCKTAIL 2)
4NL-21570-01-00
Unavailable
2
. GRAPHIC SET, REAR FENDER (MILKY BROWN)
4NL-2165A-10-00
Unavailable
3
. FLAP 2
4NL-21561-00-00
Unavailable
4
. FLAP, FRONT FENDER
4NL-21521-00-00
Unavailable
6
MASCOT
4NL-21577-00-00
Unavailable
8
EMBLEM
4NL-21578-00-00
Unavailable
9
REAR FENDER C0MP. (MATURE RED)
4NK-Y2161-50-0X
Unavailable
9
REAR FENDER C0MP. (YAMAHA BLACK)
4NK-Y2161-60-33
Unavailable
9
REAR FENDER C0MP. (STAR BLUE METALLIC)
4NK-Y2161-70-1X
Unavailable
9
REAR FENDER C0MP. (DARK BLUE COCKTAIL 2)
4NK-Y2161-80-2X
Unavailable
9
REAR FENDER C0MP. (YAMAHA BLACK) (MILKY BROWN)
4NK-Y2161-90-3X
Unavailable
10
SEAL 2
4NK-21735-00-00
Unavailable
11
EMBLEM, YAMAHA
99244-00080-00
Unavailable
11
EMBLEM, YAMAHA
99246-00080-00
Unavailable
11
EMBLEM, YAMAHA
99247-00080-00
Unavailable
12
. GRAPHIC SET, REAR FENDER (MATURE RED)
4NK-2165A-01-00
Unavailable
12
. GRAPHIC SET, REAR FENDER (STAR BLUE METALLIC)
4NK-2165A-11-00
Unavailable
12
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
4NK-2165A-21-00
Unavailable
12
. GRAPHIC SET, REAR FENDER (DARK BLUE COCKTAIL 2)
4NL-2165A-01-00
Unavailable
12
. GRAPHIC SET, REAR FENDER (MILKY BROWN)
4NL-2165A-10-00
Unavailable
13
. FLAP
4NL-21621-00-00
Unavailable
14
BOLT, WITH WASHER
97527-08516-00
Unavailable
14
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
15
STAY 1
4NK-2164F-00-00
Unavailable
16
STAY 2
4NK-2164G-00-00
Unavailable
17
DAMPER
4NK-21649-00-00
Unavailable
18
GROMMET (438)
90480-15061-00
Unavailable
19
FLAP (YAMAHA BLACK) (MILKY BROWN)
4NK-21621-00-33
Unavailable
19
FLAP (STAR BLUE METALLIC)
4NK-21621-00-8E
Unavailable
19
FLAP (MATURE RED)
4NK-21621-00-FE
Unavailable
19
FLAP (DARK BLUE COCKTAIL 2)
4NK-21621-00-P0
Unavailable
20
NUT, SPRING(4ES)
90183-06069-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
22
PLUG, BLIND
4NK-83345-00-00
Unavailable
23
STAY, 9
4NK-2317W-00-00
Unavailable
23
STAY, 9
4NL-2317W-00-00
Unavailable
24
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
25
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
26
WASHER PLATE 829771780000
90201-05033-00
Unavailable
27
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
28
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
29
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
31
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
32
DAMPER 2
5A8-21639-00-00
Unavailable
33
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
34
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
35
DAMPER, SEAT
509-24724-00-00
Unavailable
36
GRIP 1
4NL-F164A-00-00
Unavailable
37
GRIP 2
4NL-F164E-00-00
Unavailable
38
STAY 1
4NL-F164F-10-00
Unavailable
39
BOLT, FLANGE (3JPE)
95024-08016-00
Unavailable
40
BACK REST ASSY
4NL-2840F-00-00
Unavailable
41
STAY 2
4NL-F164G-00-00
Unavailable
42
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
43
EMBLEM
4NL-24786-00-00
Unavailable
