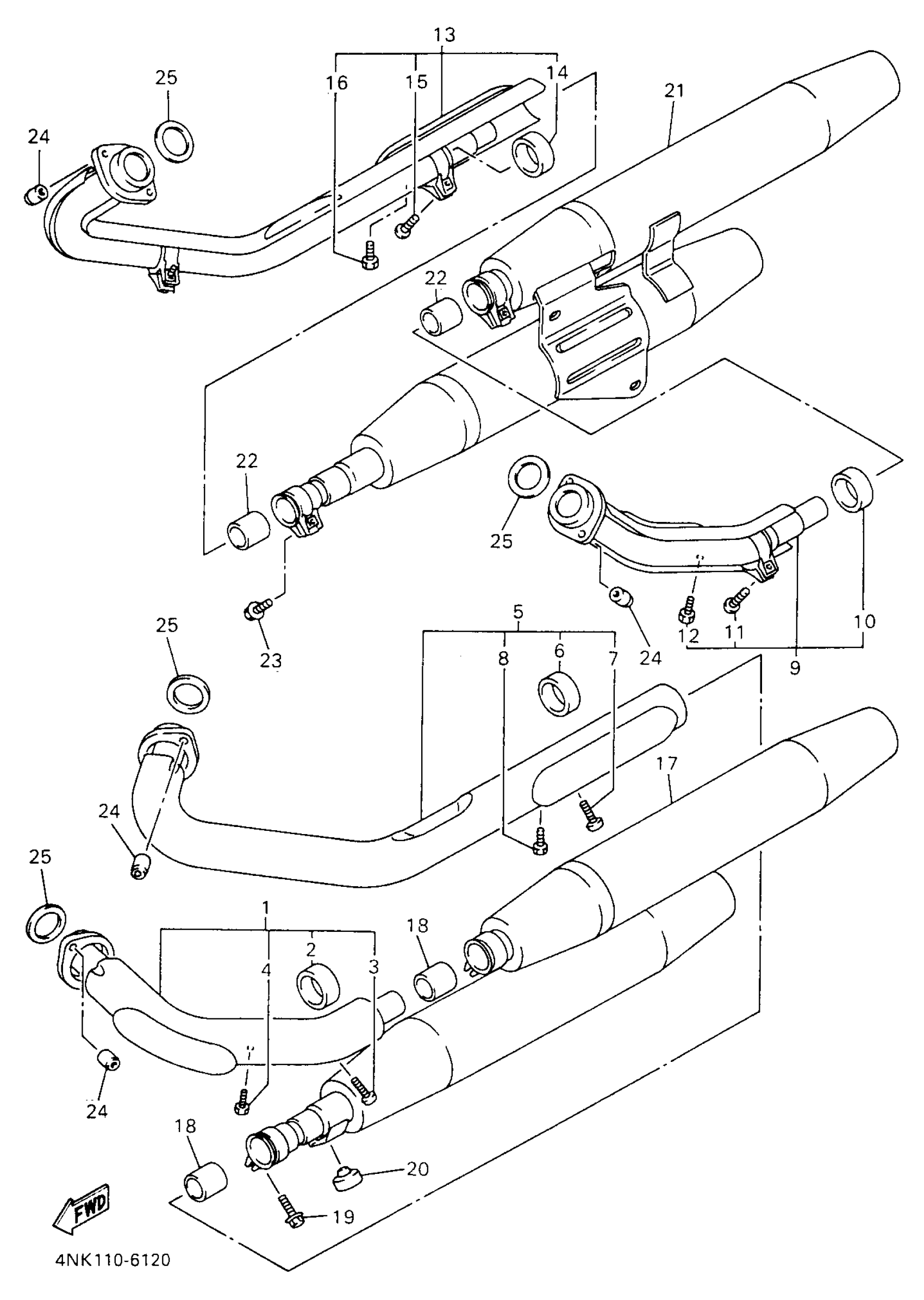

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

4NK-14610-01-00

Unavailable

2

GASKET, MUFFLER

4NK-14714-00-00

$21.92

3

BOLT, BUTTON

92017-08020-00

$5.86

4

BOLT (11T)

90101-06576-00

$6.46

5

EXHAUST PIPE ASSY 2

4NK-14620-01-00

$354.75

6

GASKET, MUFFLER

4NK-14714-00-00

$21.92

7

BOLT, BUTTON

92017-08025-00

$6.17

8

BOLT (11T)

90101-06576-00

$6.46

9

EXHAUST PIPE ASSY 3

4NK-14630-00-00

Unavailable

10

GASKET, MUFFLER

4NK-14714-00-00

$21.92

11

BOLT, BUTTON

92017-08020-00

$5.86

12

BOLT (11T)

90101-06576-00

$6.46

13

EXHAUST PIPE ASSY 4

4NK-14650-01-00

Unavailable

14

GASKET, MUFFLER

4NK-14714-00-00

$21.92

15

BOLT, BUTTON

92017-08025-00

$6.17

16

BOLT (11T)

90101-06576-00

$6.46

17

MUFFLER COMP. 1

4NK-14703-02-00

Unavailable

18

GASKET, MUFFLER

4BH-14714-00-00

Unavailable

19

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

20

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

21

MUFFLER COMP. 2

4NK-14704-02-00

Unavailable

22

GASKET, MUFFLER

4BH-14714-00-00

Unavailable

23

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

24

NUT (371)

90179-08004-00

Unavailable

25

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable
