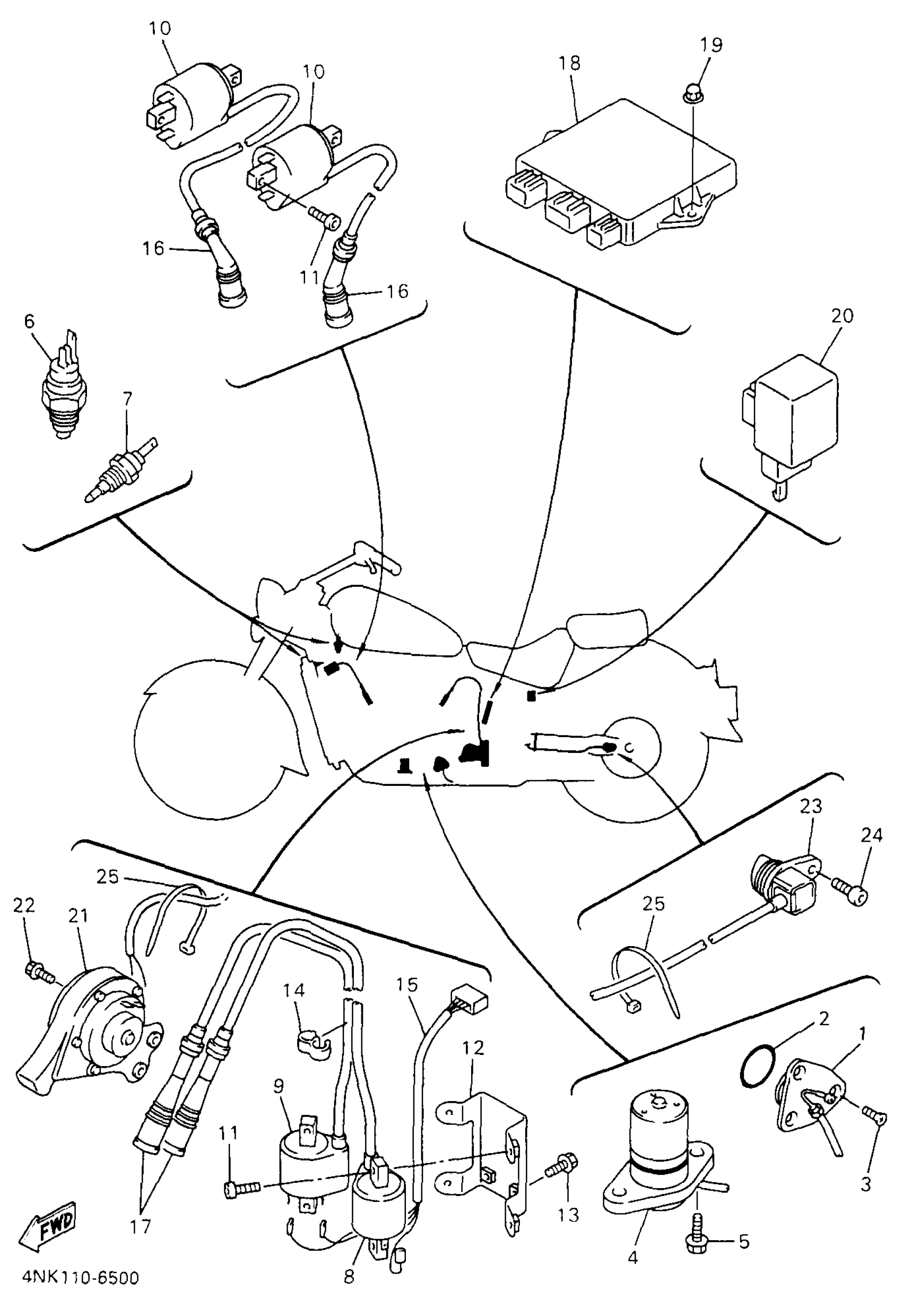

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 ELECTRICAL 2 Diagram

NEUTRAL SWITCH ASSEMBLY

4NK-82540-00-00

Unavailable

O-RING (371)

93210-29196-00

$8.49

SCREW, FLAT

98707-05012-00

$1.71

OIL LEVEL GAUGE ASSY

1FK-85720-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

THERMO SWITCH ASSY

3YX-82560-00-00

$83.99

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

IGNITION COIL ASSY

4NK-82310-10-00

Unavailable

BOLT, SOCKET

91317-05016-00

$3.28

BRACKET, IGNITION COIL

4NK-82316-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

CLAMP(6M7)

90464-09M31-00

$8.49

WIRE, SUB LEAD

4NK-82509-00-00

Unavailable

PLUG CAP ASSY

4NK-82370-00-00

Unavailable

PLUG CAP ASSY

4XY-82370-00-00

Unavailable

IGNITOR UNIT ASSY

4NK-82305-10-00

Unavailable

NUT, CROWN(2GM)

90176-06065-00

Unavailable

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

HORN

4NK-83371-00-00

Unavailable

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

SENSOR, SPEED

4NK-83755-01-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

Unavailable

BAND

3MA-82591-00-00

Unavailable
