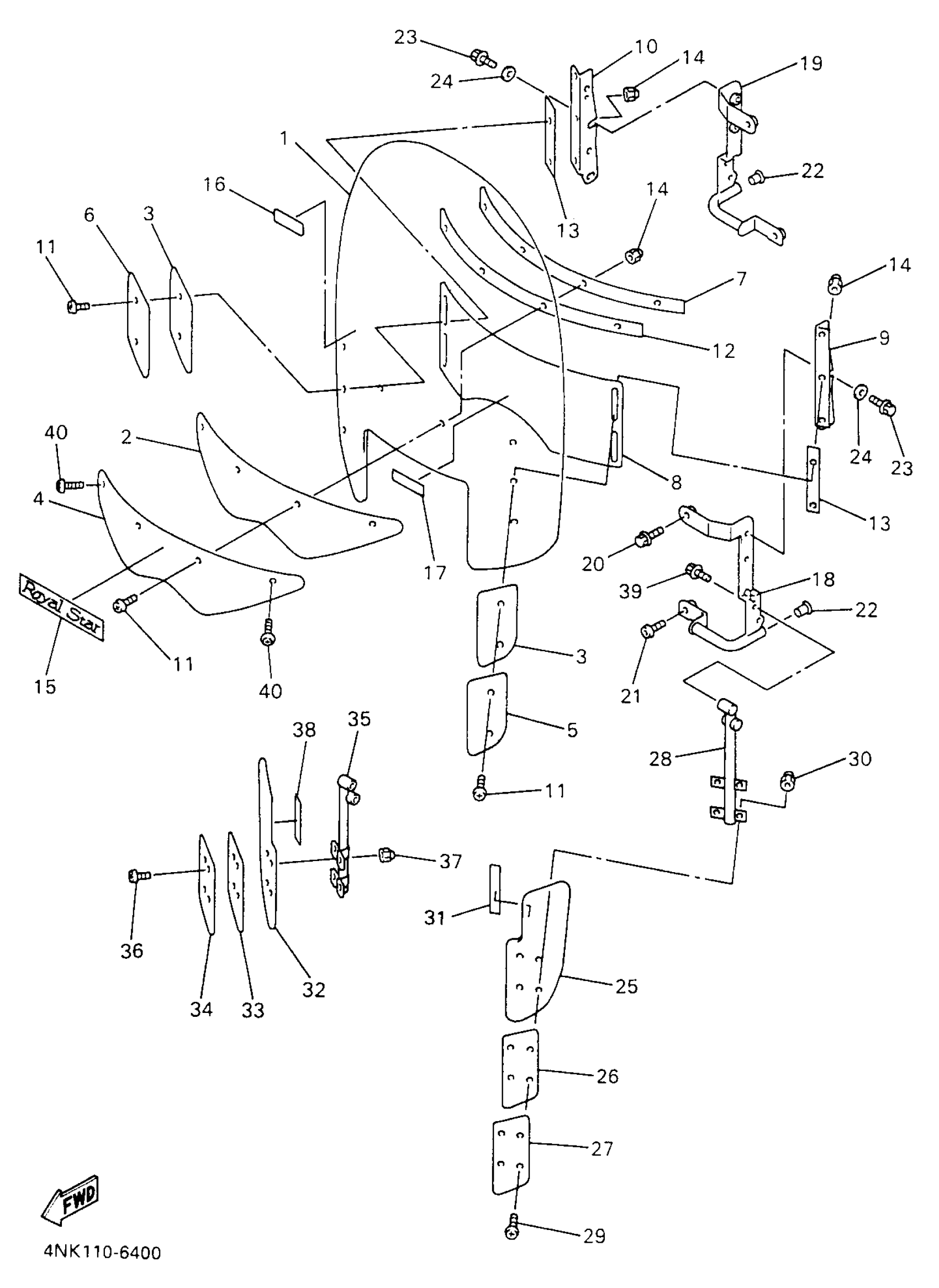

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 COWLING 1 XVZ13ATH Diagram

#

Description

Price

1

WINDSCREEN REPLACEMENT TALL

STR-4NL03-11-00

Unavailable

2

DAMPER 5

4NL-F837J-00-00

Unavailable

3

DAMPER 6

4NL-F837K-00-00

Unavailable

4

PLATE

4NL-F8336-00-00

Unavailable

5

PLATE 2

4NL-F8397-00-00

Unavailable

6

PLATE 1

4NL-F8396-00-00

Unavailable

7

HOLDER

4NL-F8337-00-00

Unavailable

8

COVER, HEADLIGHT

4NL-F838E-00-00

Unavailable

9

BRACKET 1

4NL-F836A-00-00

Unavailable

10

BRACKET 2

4NL-F836E-00-00

Unavailable

11

SCREW, COWLING 1

4NL-F8354-00-00

Unavailable

12

MOLE 1

4NL-F8345-00-00

Unavailable

13

MOLE 2

4NL-F8346-00-00

Unavailable

14

NUT

4NL-F8362-00-00

Unavailable

15

EMBLEM

5GA-28315-00-00

Unavailable

16

LABEL, NOTICE WINDSHIELD 1

2C5-F815K-00-00

Unavailable

17

SEAL

4NL-F8307-00-00

Unavailable

18

STAY 1

4NL-F8356-00-00

Unavailable

19

STAY 2

4NL-F8357-00-00

Unavailable

20

BOLT, FLANGE(4TV)

95814-10025-00

Unavailable

21

BOLT, BUTTON HEAD(3YF)

92014-08035-00

Unavailable

22

PLUG(EU0)

90605-50201-00

Unavailable

23

BOLT, FLANGE

95814-08016-00

Unavailable

24

WASHER, PLATE (3L5)

90201-08772-00

Unavailable

25

PROTECTOR 1

4NL-F834V-00-00

Unavailable

26

DAMPER

4NL-F834E-00-00

Unavailable

27

BRACET 7

4NL-F833A-00-00

Unavailable

28

STAY, GUIDE 3

4NL-F831G-00-00

Unavailable

29

SCREW, COWLING 1

4NL-F8354-00-00

Unavailable

30

NUT

4NL-F8362-00-00

Unavailable

31

SEAL

4NL-F8307-00-00

Unavailable

32

PROTECTOR 2

4NL-F834W-00-00

Unavailable

33

DAMPER

4NL-F834E-00-00

Unavailable

34

BRACET 8

4NL-F833E-00-00

Unavailable

35

STAY, GUIDE 4

4NL-F831H-00-00

Unavailable

36

SCREW, COWLING 1

4NL-F8354-00-00

Unavailable

37

NUT

4NL-F8362-00-00

Unavailable

38

SEAL

4NL-F8307-00-00

Unavailable

39

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

40

BOLT, BUTTON HEAD

4NL-F8355-00-00

Unavailable
