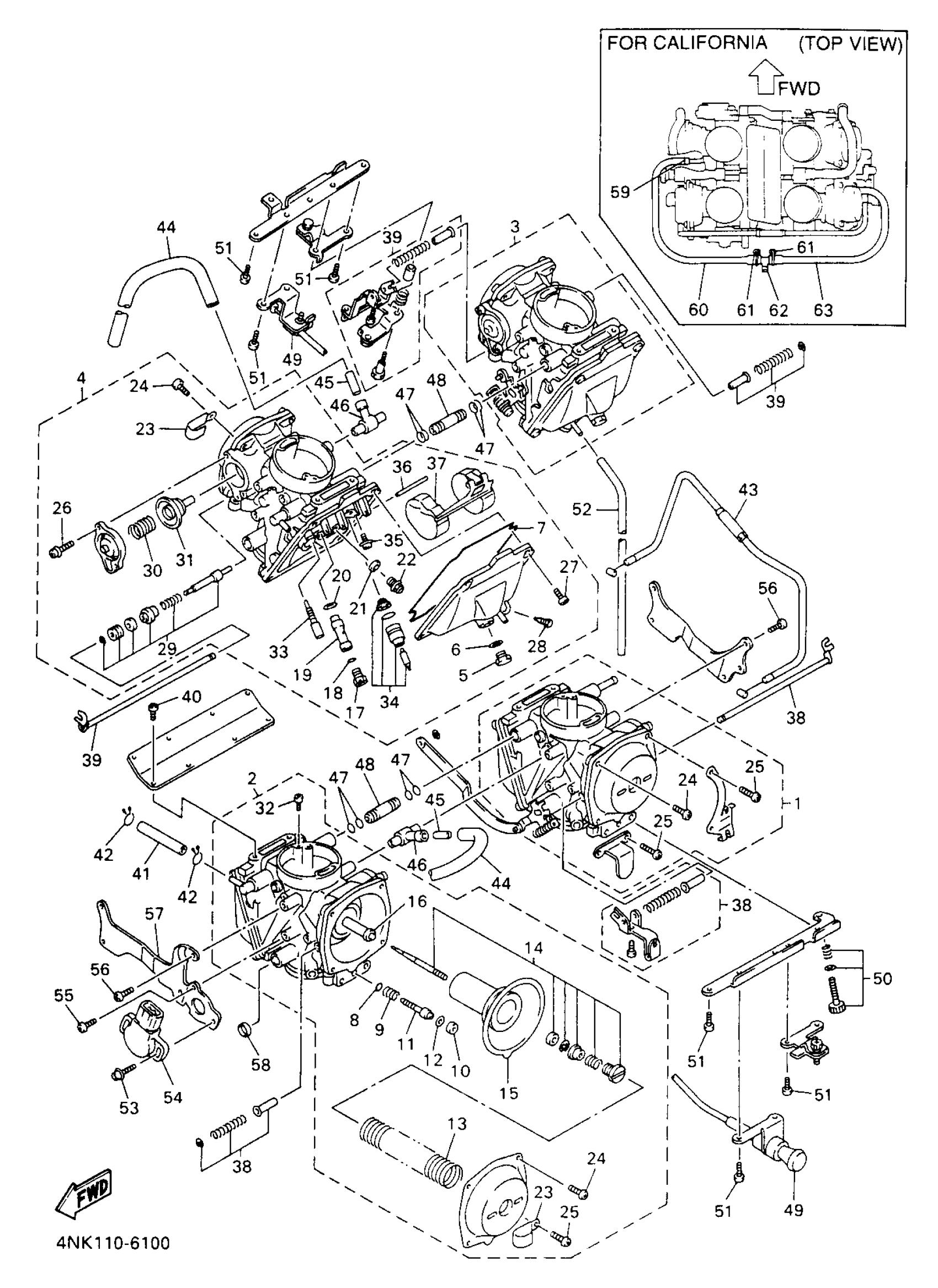

Yamaha XVZ13ATHC (ROYAL STAR TOUR CLASSIC CA) 4NL2 1996 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4NK-14901-01-00

Unavailable

1

CARBURETOR ASSY 1

4NK-14901-11-00

Unavailable

2

CARBURETOR ASSY 2

4NK-14902-01-00

Unavailable

2

CARBURETOR ASSY 2

4NK-14902-10-00

Unavailable

3

CARBURETOR ASSY 3

4NK-14903-01-00

Unavailable

3

CARBURETOR ASSY 3

4NK-14903-11-00

Unavailable

4

CARBURETOR ASSY 4

4NK-14904-01-00

Unavailable

4

CARBURETOR ASSY 4

4NK-14904-11-00

Unavailable

5

PLUG, SCREW

22U-14115-00-00

$16.49

6

.. O-RING

22U-14561-00-00

Unavailable

7

O-RING

1HX-14147-00-00

$22.99

8

O-RING, PILOT SCREW

3H1-14147-00-00

$8.99

9

SPRING

5K7-14134-00-00

$14.49

10

CAP

3F9-14118-00-00

Unavailable

11

PILOT SCREW SET

3KW-14105-00-00

$19.99

12

WASHER, PILOT SCREW

3H1-14962-00-00

Unavailable

13

. SPRING, DIAPHRAGM

4NK-14933-00-00

Unavailable

14

. NEEDLE SET

4NK-1490J-00-00

Unavailable

15

DIAPHRAGM ASSY

4NK-14940-00-00

Unavailable

16

MAIN NOZZLE(0-0)

3DM-14141-30-00

Unavailable

17

JET, MAIN (# 95)

3G2-14231-19-00

Unavailable

18

O-RING

1AE-14227-00-00

Unavailable

19

HOLDER

1AE-14261-00-00

Unavailable

20

GASKET

1AE-14237-00-00

Unavailable

21

WASHER,MAIN JET

137-14153-00-00

Unavailable

22

SCREW

1HX-14565-00-00

Unavailable

23

PLATE

3XV-14243-00-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

25

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

26

SCREW, PAN HEAD

98517-04012-00

Unavailable

27

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

28

PLUG, DRAIN

12R-14191-00-00

Unavailable

29

STARTER SET

4DN-1410A-01-00

Unavailable

30

. SPRING

4NK-14935-00-00

Unavailable

31

DIAPHRAGM ASSY

22V-14940-00-00

Unavailable

32

. JET, MAIN (#115)

1HX-14231-23-00

Unavailable

33

JET, PILOT (# 20)

22F-14142-20-00

Unavailable

34

NEEDLE VALVE SET

3CF-14107-15-00

Unavailable

35

SCREW

1FN-14565-00-00

Unavailable

36

PIN, FLOAT

353-14186-00-00

Unavailable

37

FLOAT

1HX-14985-00-00

Unavailable

38

STARTER LEVER SET, 1

4NK-1490L-00-00

Unavailable

39

STARTER LEVER SET, 1

4NK-1490L-10-00

Unavailable

40

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

41

PIPE

4NK-14396-00-00

Unavailable

42

CLIP

4NK-14137-00-00

Unavailable

43

CABLE

4NK-14130-00-00

Unavailable

44

PIPE

4NK-14349-00-00

Unavailable

45

. RING

1FN-14918-00-00

Unavailable

46

. PIPE

1AE-14197-00-00

Unavailable

47

O-RING

36Y-14147-00-00

Unavailable

48

NIPPLE

1WG-14251-00-00

Unavailable

49

CABLE

4NK-14130-12-00

Unavailable

50

THROTTLE SCREW SET

4NK-14103-00-00

Unavailable

51

SCREW, PAN

98517-05012-00

Unavailable

52

PIPE

3JD-14197-00-00

Unavailable

53

SCREW

4HM-14216-00-00

Unavailable

54

THROTTLE SENSOR ASSY

4NK-85885-00-00

Unavailable

55

SCREW,FLAT

98707-05008-00

Unavailable

56

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

57

BRACKET

4NK-14867-00-00

Unavailable

58

SEAL

4HM-14239-00-00

Unavailable

59

CLIP

55X-14937-00-00

Unavailable

60

HOSE

4NK-14987-00-00

Unavailable

61

CLIP

90467-100A1-00

Unavailable

62

PIPE, JOINT

3H3-24376-00-00

Unavailable

63

HOSE

4NK-14987-10-00

Unavailable
