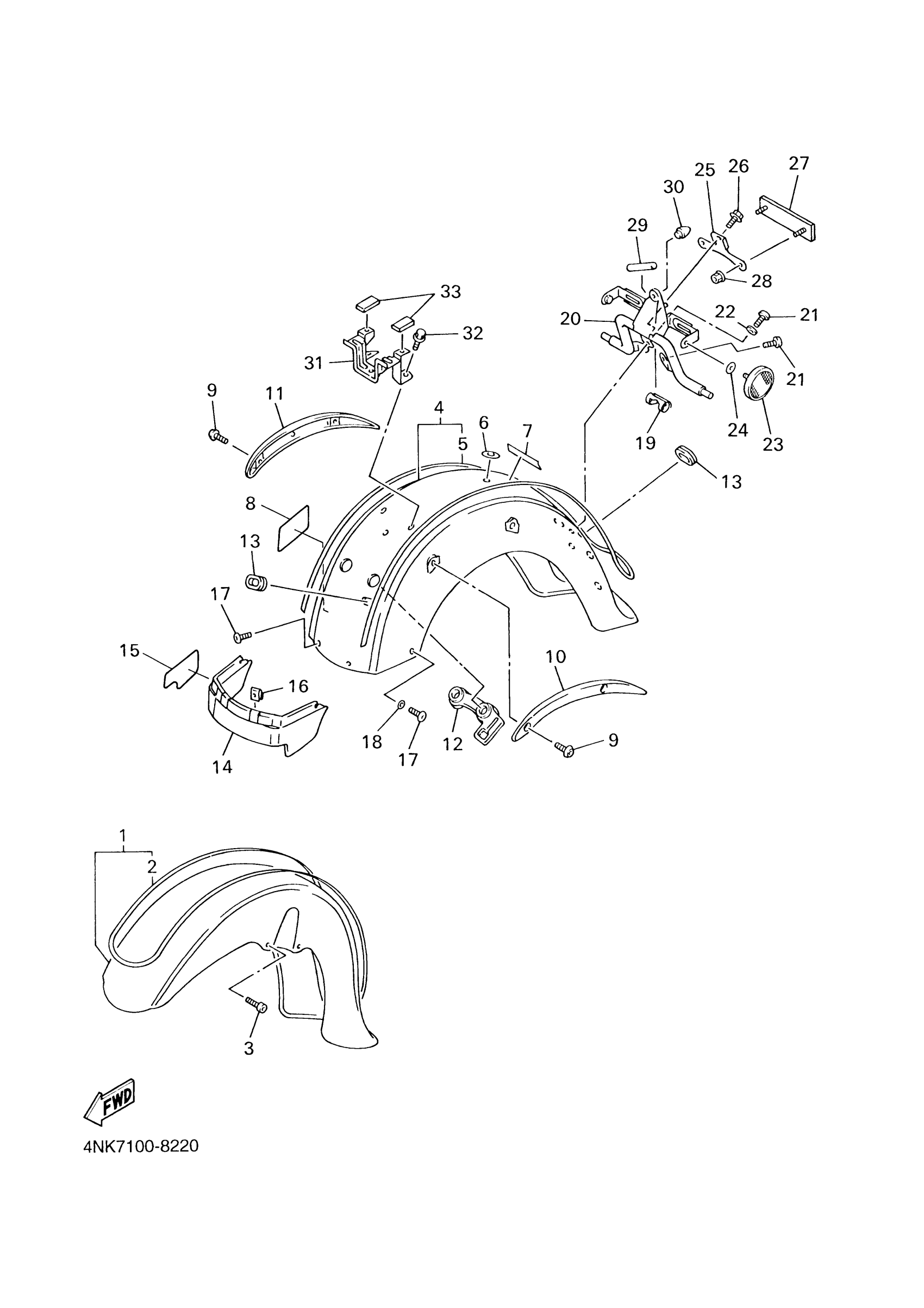

Yamaha XVZ13ALC (ROYAL STAR BOULEVARD CA) 4NKB 1999 FENDER Diagram
#
1
FRONT FENDER ASSY (YAMAHA BLACK)
4NK-Y2150-F0-33
Unavailable
1
FRONT FENDER ASSY (NEW PEARL WHITE) (VERY DARK BLUE METALLIC 9)
4NK-Y2150-G0-0Y
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4YP-21570-00-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (VERY DARK BLUE METALLIC 9)
4YP-21570-10-00
Unavailable
4
REAR FENDER C0MP. (YAMAHA BLACK)
4NK-Y2161-H0-33
Unavailable
4
REAR FENDER C0MP. (NEW PEARL WHITE) (VERY DARK BLUE METALLIC 9)
4NK-Y2161-J0-2Y
Unavailable
5
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
4YP-2165A-00-00
Unavailable
5
.. GRAPHIC SET, REAR FENDER (VERY DARK BLUE METALLIC 9)
4YP-2165A-10-00
Unavailable
8
SEAL
4NK-21268-00-00
Unavailable
10
STAY 1
4NK-2164F-00-00
Unavailable
11
STAY 2
4NK-2164G-00-00
Unavailable
12
DAMPER
4NK-21649-00-00
Unavailable
13
GROMMET (438)
90480-15061-00
Unavailable
14
FLAP (YAMAHA BLACK) (MILKY BROWN)
4NK-21621-00-33
Unavailable
14
FLAP (VERY DARK BLUE METALLIC 9)
4NK-21621-00-P3
Unavailable
15
SEAL
4NK-21269-00-00
Unavailable
16
NUT, SPRING(4ES)
90183-06069-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
18
WASHER, PLATE
90202-06170-00
Unavailable
19
PLUG, BLIND
4NK-83345-00-00
Unavailable
20
STAY, 9
4NK-2317W-00-00
Unavailable
21
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
22
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
23
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
24
WASHER PLATE 829771780000
90201-05033-00
Unavailable
25
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
26
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
27
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
28
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
29
HOSE (583)
90446-07114-00
Unavailable
30
DAMPER 2
5A8-21639-00-00
Unavailable
31
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
32
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
33
DAMPER, SEAT
509-24724-00-00
Unavailable
