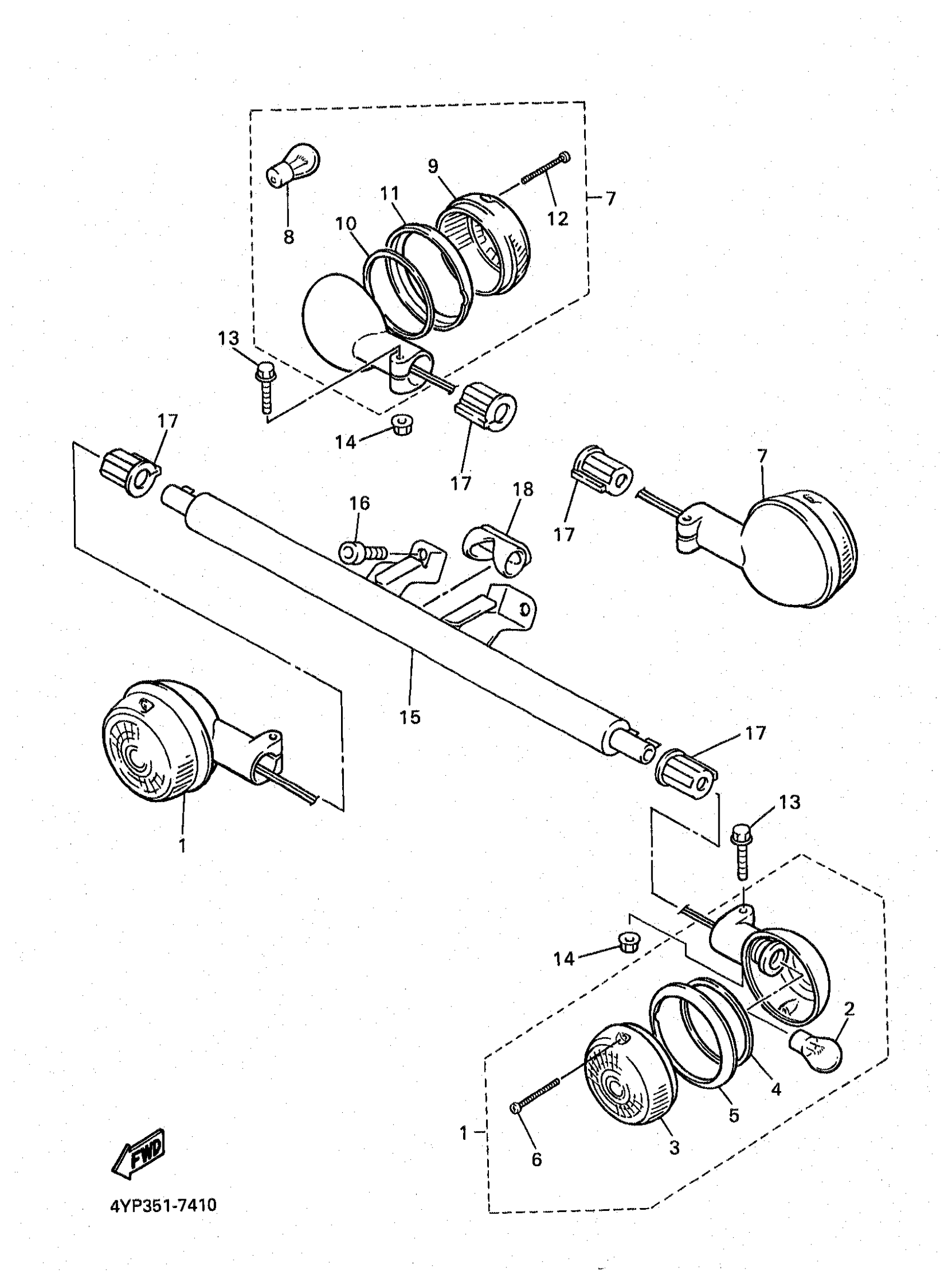

Yamaha XVZ13AKC (ROYAL STAR CA) 1998 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 2

4WM-83320-01-00

$118.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-09-00

Unavailable

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

REAR FLASHER LIGHT ASSY 1

1AA-83330-K9-00

$117.99

8

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

9

LENS, FLASHER

42X-83312-09-00

Unavailable

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

. LENS, RIM

42X-83363-00-00

Unavailable

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

14

NUT, FLANGE(7NB)

95780-06500-00

$2.60

15

STAY, 8

4NK-2317V-00-00

Unavailable

16

BOLT,SOCKET

91314-08016-00

Unavailable

17

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

18

PLUG, BLIND

4NK-83345-00-00

Unavailable
