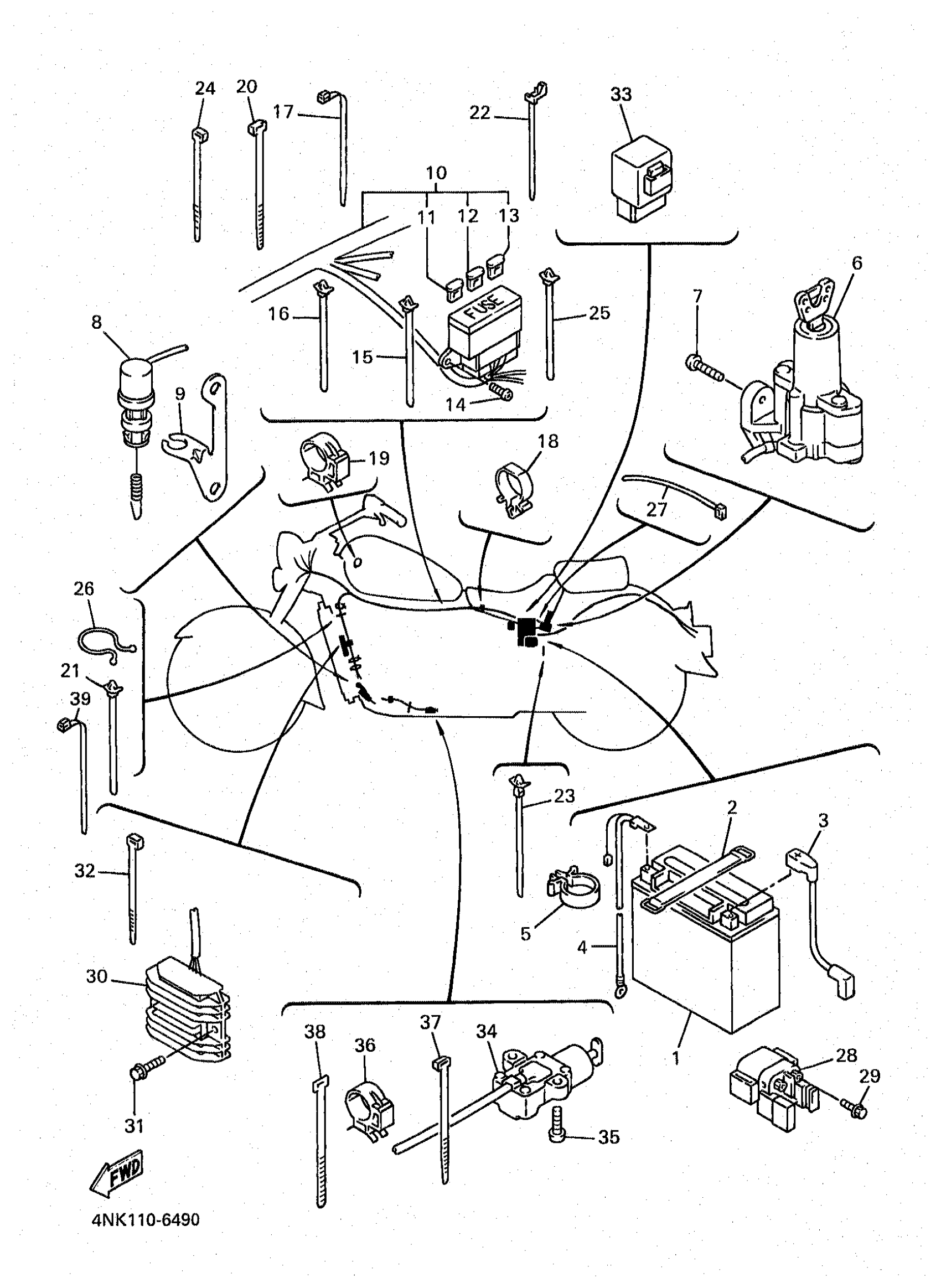

Yamaha XVZ13AKC (ROYAL STAR CA) 1998 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

2

BAND,BATTERY

7H3-82131-00-00

$17.49

3

WIRE, PLUS LEAD

4NK-82115-00-00

$38.99

4

WIRE, MINUS LEAD

4JH-82116-00-00

Unavailable

5

CLAMP(3SK)

90464-13133-00

$8.49

6

MAIN SWITCH ASSY

4NK-82510-01-00

Unavailable

7

SCREW(4HM)

90149-06308-00

$8.49

8

STOP SWITCH ASSY

4NK-82530-00-00

Unavailable

9

STAY, STOP SWITCH

4NK-82539-00-00

Unavailable

10

WIRE HARNESS ASSY

4NK-82590-20-00

Unavailable

11

FUSE (10A)

42X-82151-00-00

$4.32

12

FUSE (12V 15A)

36Y-82151-00-00

$4.94

13

FUSE

1NL-82151-00-00

$6.99

14

SCREW, BINDING

98907-06012-00

$9.49

15

CLAMP(2TV)

90464-10112-00

$8.49

16

CLAMP(2TV)

90464-10112-00

$8.49

17

CLAMP(4FM)

90464-15195-00

Unavailable

18

CLAMP(4NK)

90464-24230-00

Unavailable

19

CLAMP(4GY)

90464-10190-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

CLAMP(2TV)

90464-10112-00

$8.49

22

CLAMP(4GY)

90464-15200-00

Unavailable

23

CLAMP(2TV)

90464-10112-00

$8.49

24

CLAMP

90464-16061-00

Unavailable

25

CLAMP(2TV)

90464-10112-00

$8.49

26

CLAMP (8M1)

90464-30040-00

Unavailable

27

CLAMP

90464-16061-00

Unavailable

28

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

29

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

30

RECTIFIER & REGULATOR ASSY

3VD-81960-01-00

Unavailable

31

BOLT, FLANGE

95817-06020-00

Unavailable

32

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

33

RELAY ASSY

3EN-81950-02-00

Unavailable

34

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

35

SCREW, PAN HEAD

98507-05014-00

Unavailable

36

CLAMP(4GY)

90464-10190-00

Unavailable

37

BAND

1UA-82591-00-00

Unavailable

38

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

39

CLAMP(4FM)

90464-15195-00

Unavailable
