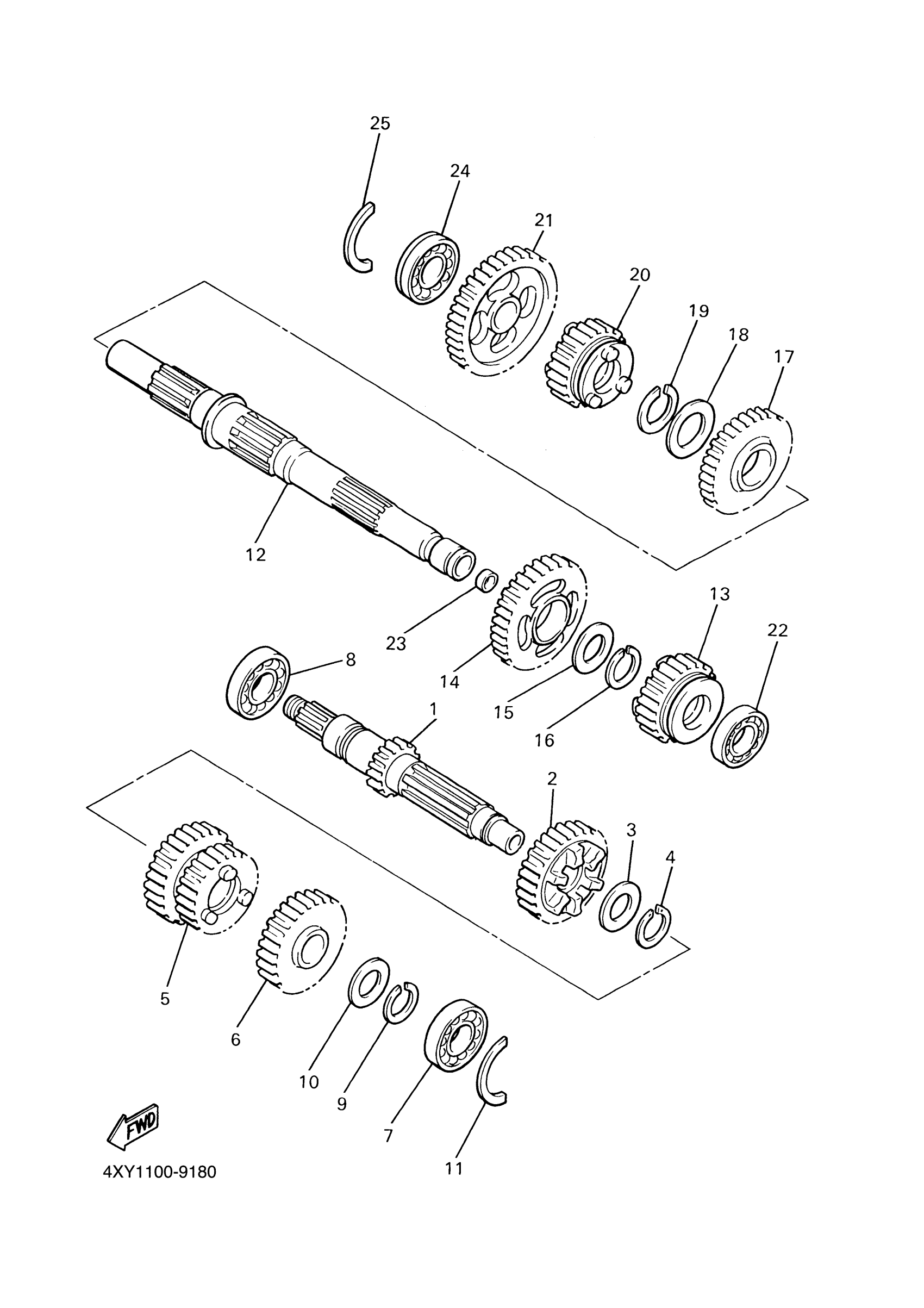

Yamaha XVZ1300TFSPC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYE 2002 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4XY-17411-00-00

Unavailable

2

GEAR, 4TH PINION

4XY-17141-00-00

Unavailable

3

WASHER (4H7)

90209-25196-00

Unavailable

4

CIRCLIP (2H7)

93440-28062-00

$8.49

5

GEAR, 2ND PINION

4XY-17121-00-00

Unavailable

6

GEAR, 5TH PINION

4XY-17151-00-00

Unavailable

7

BEARING (26H)

93306-30430-00

$49.99

8

BEARING (26H)

93306-36401-00

$73.99

9

CIRCLIP (4H7)

93410-23056-00

$7.49

10

WASHER, PLATE(1FK)

90201-232K5-00

Unavailable

11

CIRCLIP (26H)

93440-52118-00

$2.65

12

DRIVE AXLE ASSY

4NK-17402-00-00

Unavailable

13

GEAR, 5TH WHEEL

4XY-17251-00-00

Unavailable

14

GEAR, 2ND WHEEL

4XY-17221-00-00

Unavailable

15

WASHER (26H)

90209-32231-00

Unavailable

16

CIRCLIP (371)

93440-34025-00

Unavailable

17

GEAR, 3RD WHEEL

4XY-17231-00-00

Unavailable

18

WASHER (3J3)

90209-27192-00

Unavailable

19

CIRCLIP (3J3)

93440-30077-00

Unavailable

20

GEAR, 4TH WHEEL

4XY-17241-00-00

Unavailable

21

GEAR, 1ST WHEEL

4XY-17211-00-00

Unavailable

22

BEARING(4NK)

93306-20645-00

Unavailable

23

PLUG (26H)

90331-15039-00

Unavailable

24

BEARING (26H)

93306-20555-00

Unavailable

25

CIRCLIP (26H)

93440-52118-00

$2.65
