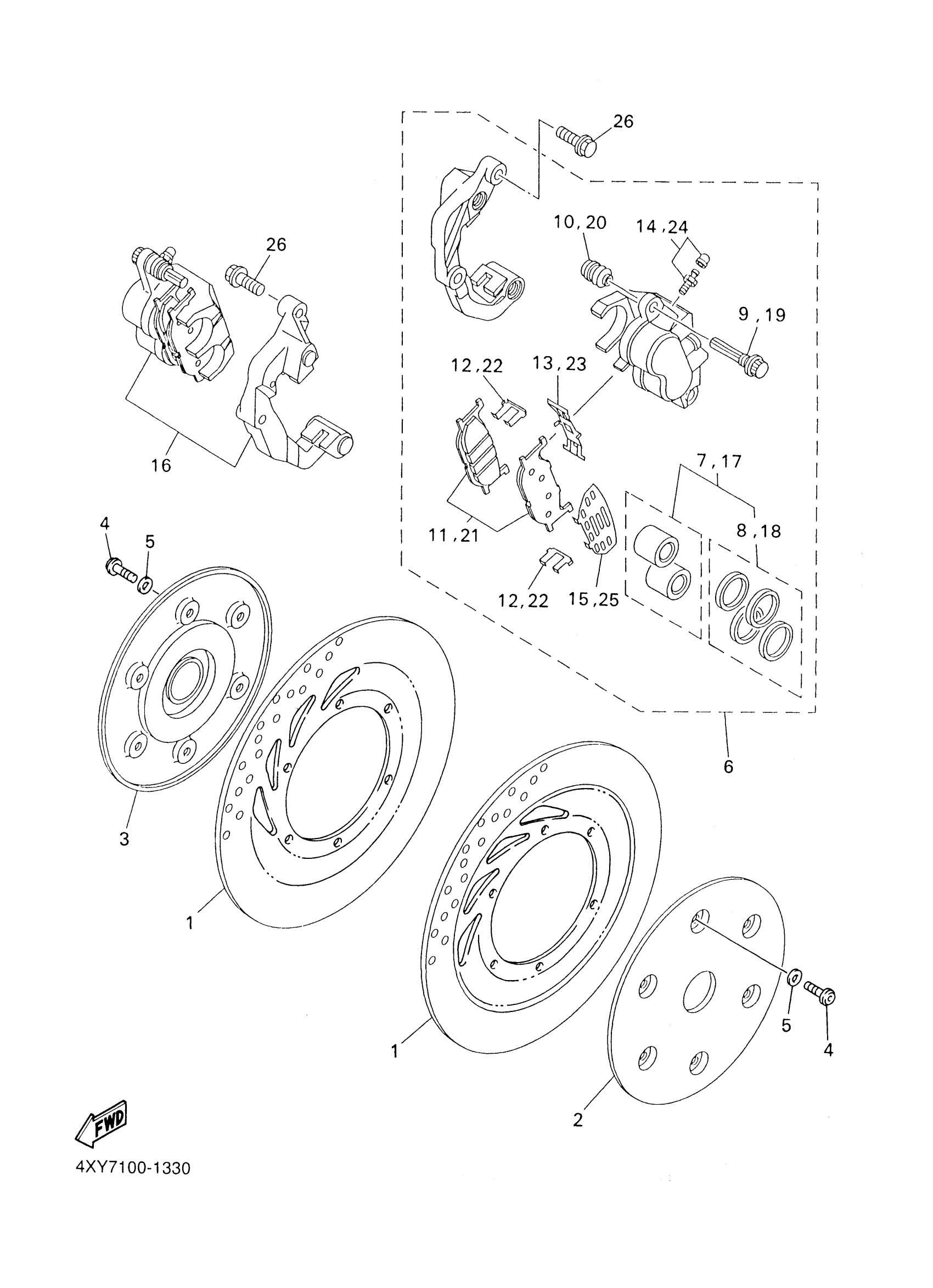

Yamaha XVZ1300TFSPC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYE 2002 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

5BN-2582U-00-00

$309.50

2

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

3

RING, WHEEL 2 (RIGHT)

4NK-2515A-00-00

Unavailable

4

SCREW

90149-08052-00

$5.59

5

WASHER, PLATE

90201-08014-00

$1.37

6

CALIPER ASSY (LEFT)

4WM-2580T-01-00

Unavailable

7

PISTON ASSY, CALIPER

3JB-25802-00-00

$130.33

8

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

9

PIN, SLIDE

5JW-25914-10-00

$17.93

10

BOOT 2

4TT-25937-00-00

$13.33

11

BRAKE PAD KIT

4WM-W0045-00-00

$37.78

12

SUPPORT, PAD

4BP-25919-00-00

$27.53

13

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

14

BLEED SCREW KIT

15B-W0048-00-00

$16.89

15

SHIM, CALIPER

5BN-25827-00-00

Unavailable

16

CALIPER ASSY (RIGHT)

4WM-2580U-01-00

Unavailable

17

PISTON ASSY, CALIPER

3JB-25802-00-00

$130.33

18

CALIPER SEAL KIT

3JB-25803-00-00

$36.93

19

PIN, SLIDE

5JW-25914-10-00

$17.93

20

BOOT 2

4TT-25937-00-00

$13.33

21

BRAKE PAD KIT

4WM-W0045-00-00

$37.78

22

SUPPORT, PAD

4BP-25919-00-00

$27.53

23

SPRING, ANTI RATTLE

3YX-25929-00-00

Unavailable

24

BLEED SCREW KIT

15B-W0048-00-00

$16.89

25

SHIM, CALIPER

5BN-25827-00-00

Unavailable

26

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
