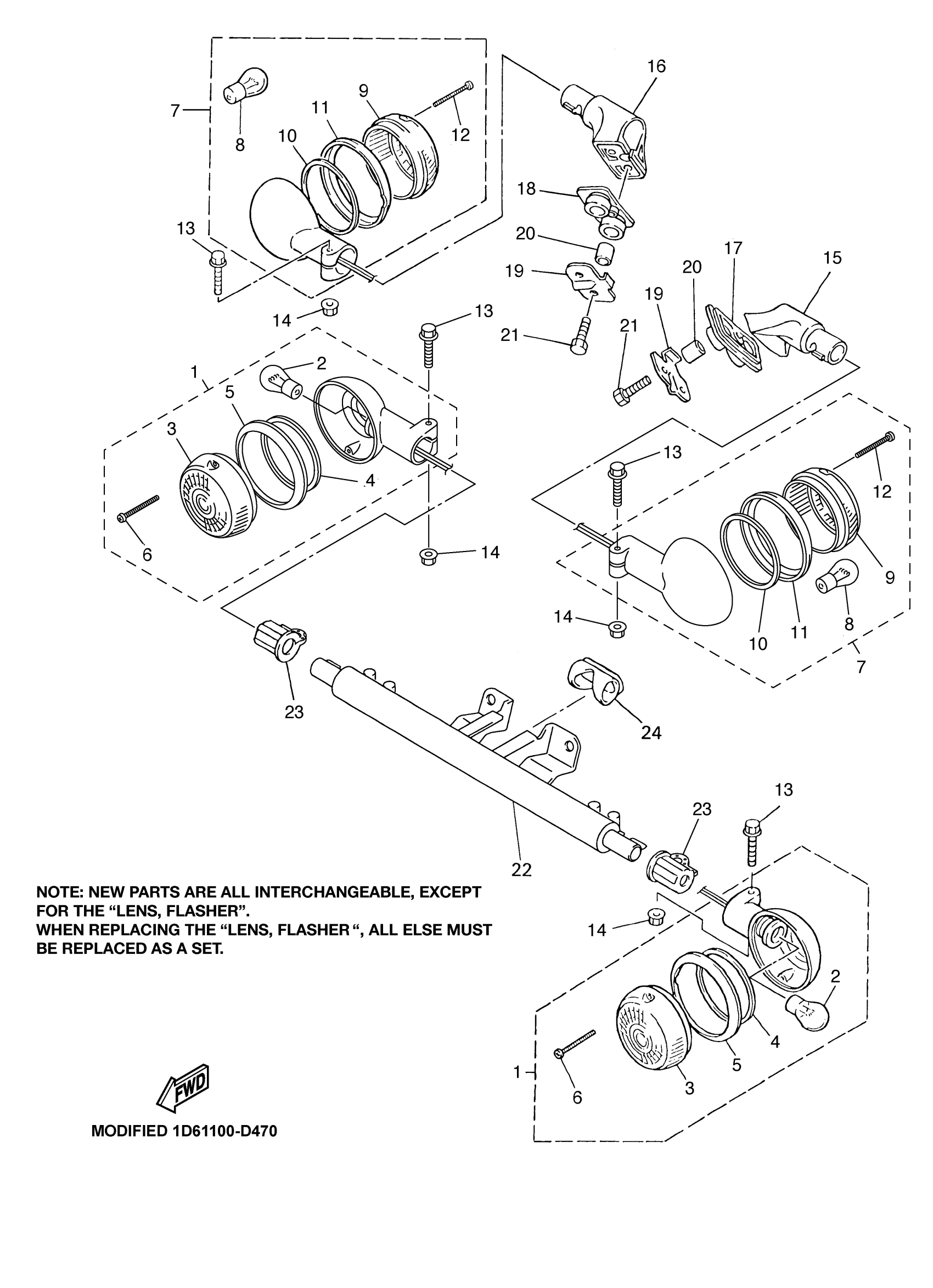

Yamaha XVZ1300TFSPC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYE 2002 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4NK-83310-01-00

Unavailable

1

FRONT FLASHER LIGHT ASSY 2

4NK-83320-01-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

3

LENS, FLASHER

42X-83312-20-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

5

LENS, RIM

1D6-83363-10-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

$131.99

7

FLASHER LIGHT ASSY 2

42X-83340-K1-00

$122.99

8

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

9

LENS, FLASHER

42X-83312-10-00

$15.49

9

LENS, FLASHER

42X-83312-20-00

$15.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-00-00

$28.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

14

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

15

STAY, FLASHER 1

4YE-83318-00-00

Unavailable

16

STAY, FLASHER 2

4YE-83328-00-00

Unavailable

17

BASE, FLASHER 1

4YE-83314-00-00

Unavailable

18

BASE, FLASHER 2

4YE-83324-00-00

Unavailable

19

WASHER, SPECIAL 8

4YE-8334F-00-00

Unavailable

20

COLLAR

90387-06113-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable

22

STAY, 8

4XY-2317V-00-00

Unavailable

23

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

24

PLUG, BLIND

4NK-83345-00-00

Unavailable
