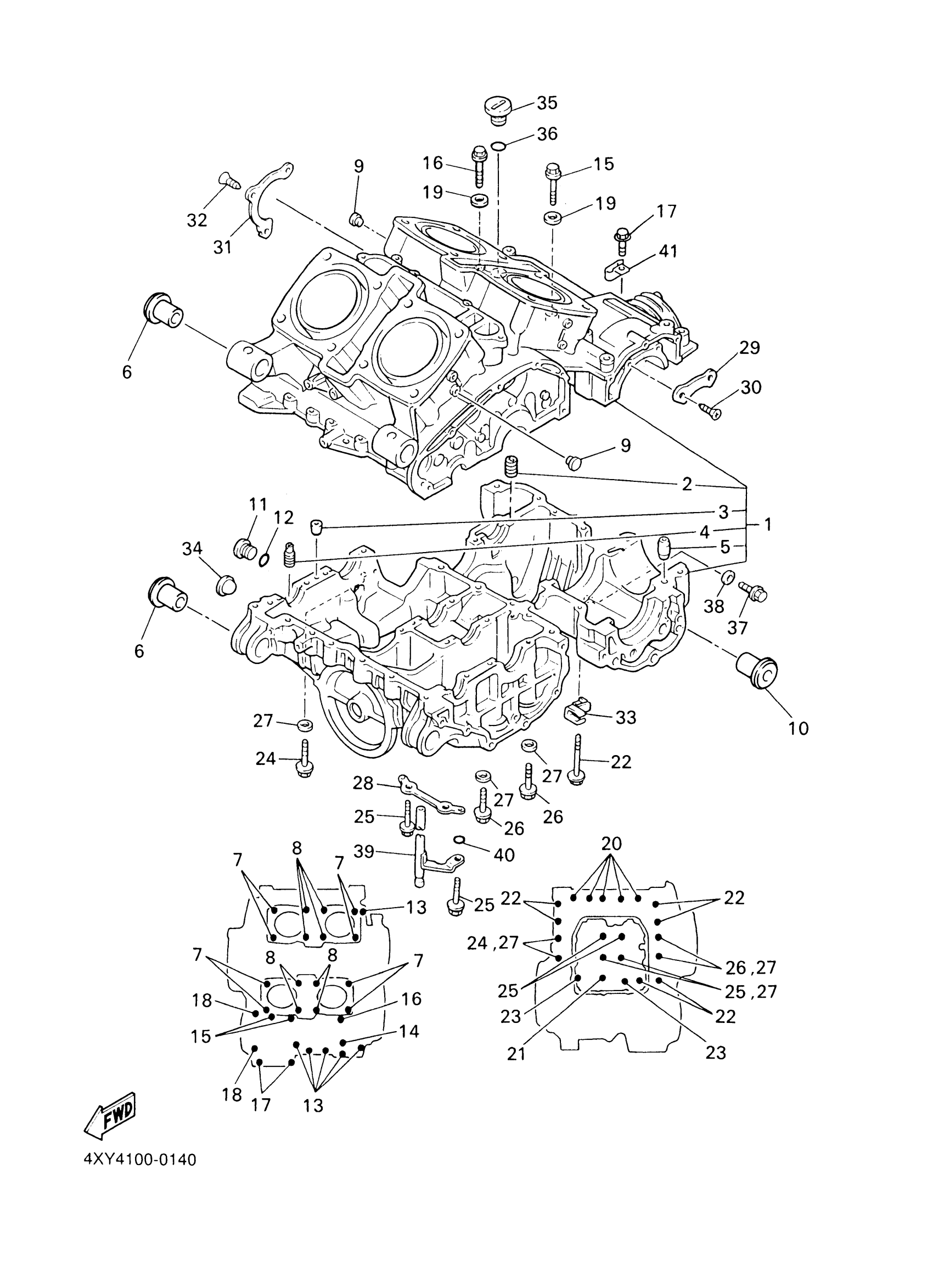

Yamaha XVZ1300TFSPC (ROYAL STAR MIDNIGHT VENTURE CA) 4XYE 2002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4XY-15100-00-00

Unavailable

2

NOZZLE 1

26H-15138-00-00

$9.99

3

NOZZLE 2

26H-15148-00-00

Unavailable

4

NOZZLE

4KM-13572-01-00

$6.99

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

COLLAR

4XY-15541-00-00

$42.99

7

BOLT, STUD (26H)

90116-10411-00

$13.49

8

BOLT, STUD (26H)

90116-10411-00

$13.49

9

PLUG (26H)

90338-11152-00

$18.99

10

COLLAR 2

4XY-15542-00-00

$31.99

11

PLUG

4H7-15189-00-00

$30.99

12

O-RING (25G)

93210-20573-00

$8.49

13

BOLT, FLANGE(4EB)

95814-06045-00

$2.82

14

BOLT, FLANGE(3JP)

95814-06070-00

$8.49

15

BOLT, FLANGE(3JP)

95814-06090-00

Unavailable

16

BOLT, FLANGE

95817-06095-00

Unavailable

17

BOLT, FLANGE

95814-08045-00

Unavailable

18

BOLT, FLANGE

95814-08080-00

Unavailable

19

GASKET (4V2)

90430-06166-00

Unavailable

20

BOLT, FLANGE

95817-08050-00

Unavailable

21

BOLT, WASHER BASED(4JG)

90105-08721-00

Unavailable

22

BOLT, FLANGE

95814-08080-00

Unavailable

23

BOLT, FLANGE(8BT)

95817-08095-00

Unavailable

24

BOLT(3JP)

90109-103G0-00

Unavailable

25

BOLT, WASHER BASED (26H)

90105-10248-00

Unavailable

26

BOLT, WASHER BASED (26H)

90105-10249-00

Unavailable

27

WASHER PLATE 256111740000

90201-10131-00

Unavailable

28

PLATE

26H-15113-00-00

Unavailable

29

PLATE, BEARING COVER

26H-15381-00-00

Unavailable

30

SCREW

90149-08013-00

Unavailable

31

PLATE, BEARING COVER

26H-15383-00-00

Unavailable

32

SCREW, FLAT HEAD(4EM)

98707-06016-00

Unavailable

33

CLAMP (26H)

90465-08233-00

Unavailable

34

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

35

PLUG, OIL

4NK-15363-00-00

Unavailable

36

O-RING(1KT)

93210-27778-00

Unavailable

37

BOLT, FLANGE(4GY)

95817-12016-00

Unavailable

38

WASHER, PLATE

90201-12790-00

Unavailable

39

PIPE, BREATHER

26H-15373-00-00

Unavailable

40

O-RING(26H)

93210-06667-00

Unavailable

41

CLAMP

90461-14150-00

Unavailable
