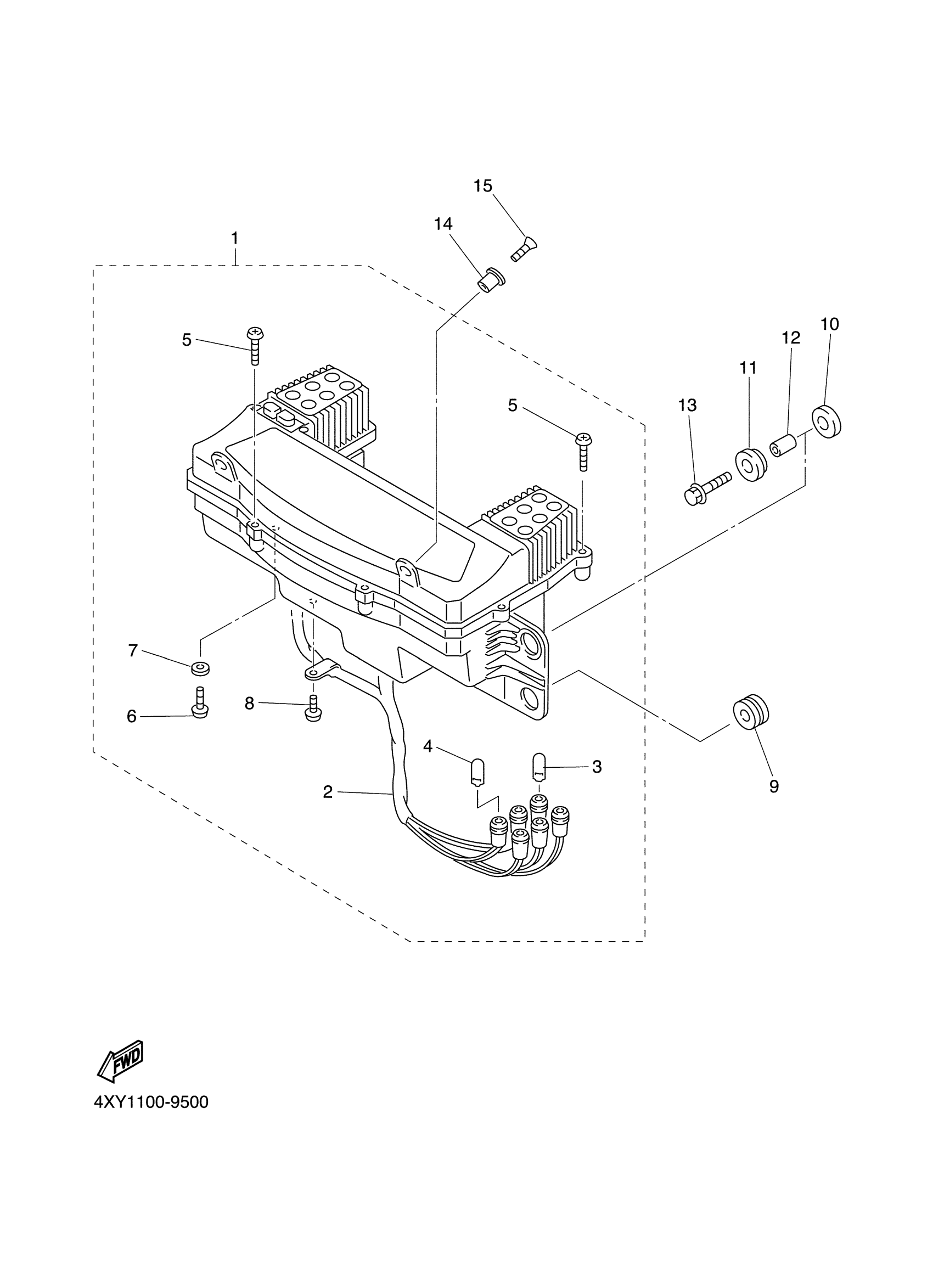

Yamaha XVZ1300TFSMC (ROYAL STAR VENTURE MM CA) 5MC2 2000 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

5MC-83500-00-00

Unavailable

2

SOCKET CORD ASSY

4XY-83509-00-00

Unavailable

3

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

4

BULB (12V-1.7W)

3FV-83517-00-00

$8.99

5

SCREW, TAPPING

97707-30014-00

Unavailable

6

SCREW, PAN HEAD(3HH)

98507-03010-00

$3.55

7

WASHER, SPRING

92990-03100-00

$8.49

8

SCREW, TAPPING(71E)

90164-04023-00

Unavailable

9

GROMMET 839774310000

90480-14023-00

$7.49

10

DAMPER

4XY-8338V-00-00

Unavailable

11

DAMPER 2

4XY-83393-00-00

Unavailable

12

COLLAR

90387-06144-00

$5.60

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

NUT(1KT)

90179-05523-00

$8.49

15

. SCREW, FLAT HEAD

98780-05016-00

Unavailable
