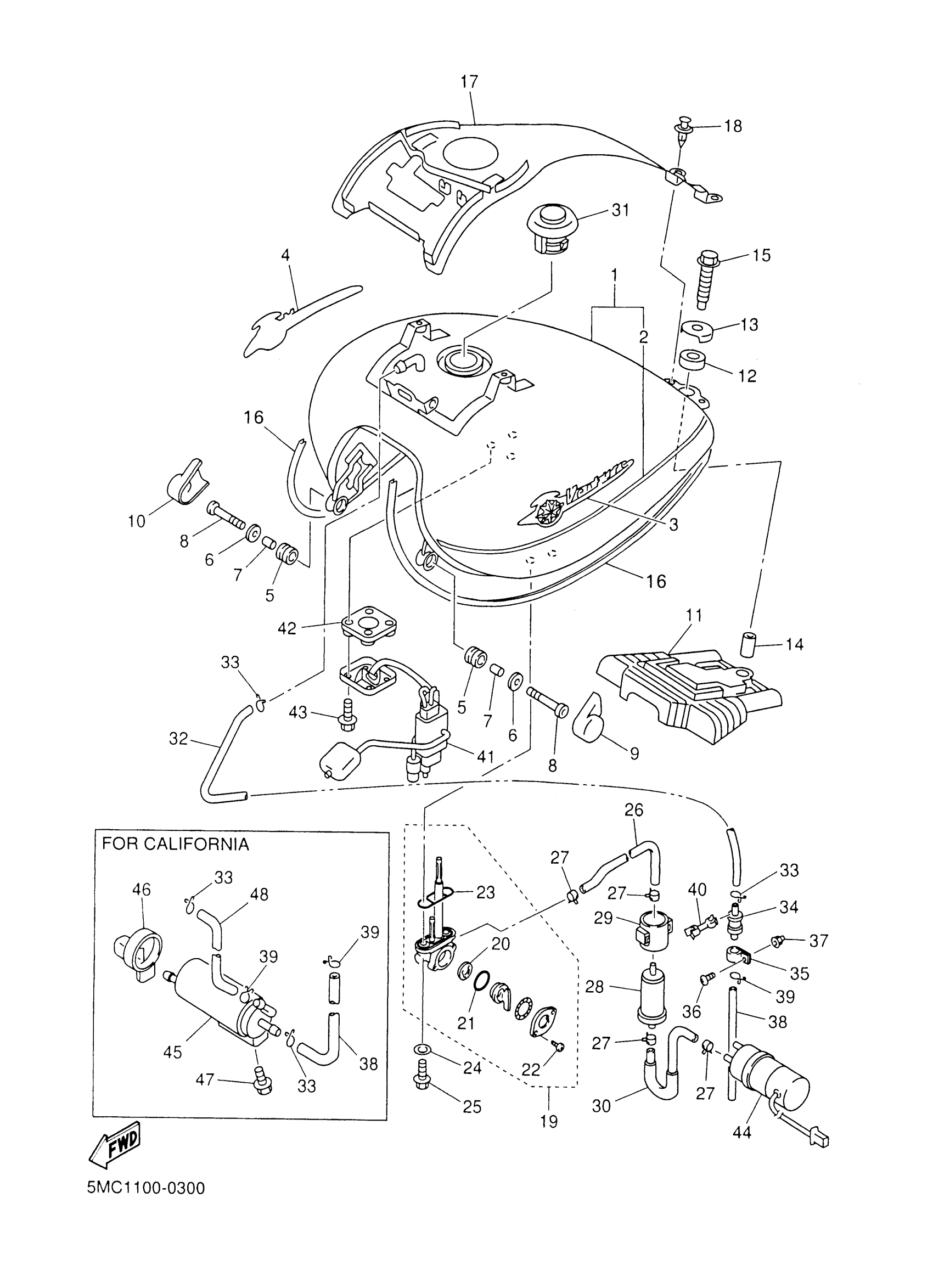

Yamaha XVZ1300TFSMC (ROYAL STAR VENTURE MM CA) 5MC2 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (NEW PEARL WHITE) (CERAMIC IVORY)

4XY-Y2410-10-05

Unavailable

2

. GRAPHIC SET

5MC-24240-00-00

Unavailable

3

EMBLEM

5MC-2416B-00-00

Unavailable

4

EMBLEM

5MC-2417B-00-00

Unavailable

5

GROMMET(4AA)

90480-18549-00

$10.49

6

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

7

COLLAR 849833160000

90387-06027-00

$8.49

8

BOLT, BUTTON

92017-06035-00

$3.13

9

COVER, SIDE 1

4XY-24129-00-00

Unavailable

10

COVER, SIDE 2

4XY-24139-00-00

Unavailable

11

DAMPER, LOCATING 2

4XY-24182-00-00

Unavailable

12

DAMPER, LOCATING 3

4XY-24183-00-00

$8.99

13

WASHER, SPECIAL

42X-24186-00-00

$9.99

14

COLLAR

90387-0813V-00

$4.72

15

BOLT

90109-08002-00

$10.49

16

MOLD, FUEL TANK

4XY-24188-00-00

Unavailable

17

COVER, TOP

5MC-2171A-00-00

Unavailable

18

RIVET(4JH)

90269-07076-00

Unavailable

19

FUEL COCK ASSY 1

4WM-24500-10-00

Unavailable

20

VALVE PACKING

3AC-24523-00-00

Unavailable

21

SEAL, COCK

3AJ-24534-01-00

Unavailable

22

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

23

O-RING

4X8-24512-00-00

Unavailable

24

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

25

SCREW 256241430000

90149-06011-00

Unavailable

26

PIPE, FUEL 1

4XY-24311-00-00

Unavailable

27

CLIP (7K7)

90467-11044-00

Unavailable

28

FILTER ASSY

1FK-24560-10-00

Unavailable

29

BRACKET, FILTER

1FK-24566-00-00

Unavailable

30

PIPE 2

4NK-24312-00-00

Unavailable

31

CAP ASSY

4NK-24602-20-00

Unavailable

32

PIPE 10

4XY-24321-02-00

Unavailable

33

CLIP

90467-100A1-00

Unavailable

33

CLIP

90467-100A1-00

Unavailable

34

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

35

CLAMP

90464-15014-00

Unavailable

36

SCREW, BINDING

98907-05012-00

Unavailable

37

NUT, CROWN(47X)

90176-05054-00

Unavailable

38

HOSE (L400)

90445-116K9-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

CLAMP(2YK)

90464-13103-00

Unavailable

41

SENDER UNIT ASSY, FUEL METER

4XY-85752-11-00

Unavailable

42

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

43

BOLT, WITH WASHER

90119-05071-00

Unavailable

44

FUEL PUMP COMP.

4NK-13907-01-00

Unavailable

45

CANISTER ASSY

4XY-24170-00-00

Unavailable

46

COVER, CANISTER

2JU-2419E-00-00

Unavailable

47

BOLT, FLANGE

95817-06010-00

Unavailable

48

HOSE

90445-113K3-00

Unavailable
