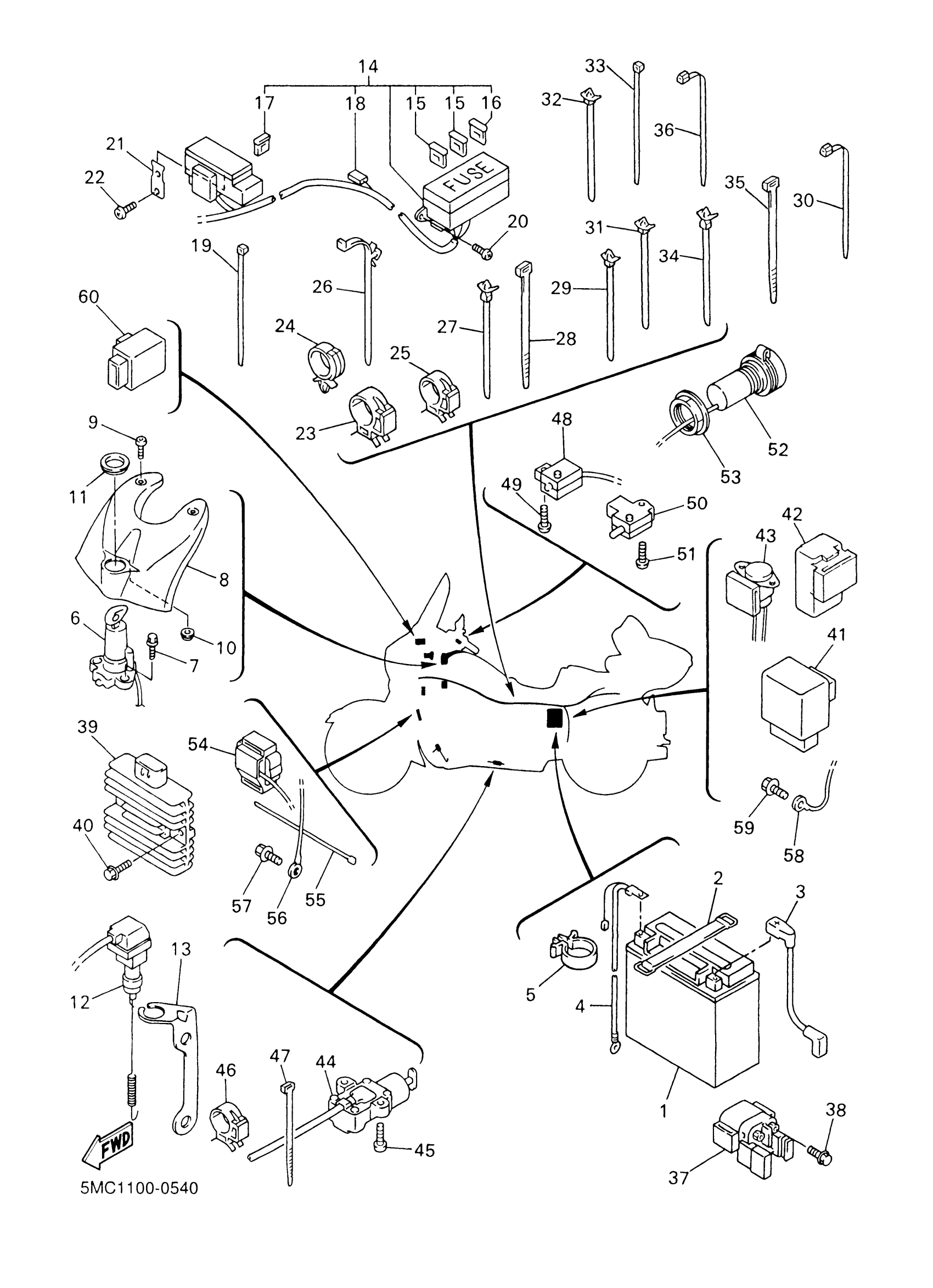

Yamaha XVZ1300TFSMC (ROYAL STAR VENTURE MM CA) 5MC2 2000 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

2

BAND,BATTERY

7H3-82131-00-00

$17.49

3

WIRE, PLUS LEAD

4NK-82115-00-00

$38.99

4

WIRE, MINUS LEAD

1D6-82116-00-00

Unavailable

5

CLAMP(3SK)

90464-13133-00

$8.49

6

MAIN SWITCH STEERING LOCK

4XY-82501-02-00

Unavailable

7

BOLT

90109-08196-00

$8.49

8

COVER, SWITCH

5MC-8291G-00-00

Unavailable

9

SCREW(1XL)

90149-06264-00

$7.49

10

GROMMET(4DN)

90480-01558-00

$4.19

11

GROMMET

4XY-82545-01-00

Unavailable

12

STOP SWITCH ASSY

4XY-82530-01-00

$73.99

13

STAY, STOP SWITCH

4XY-82539-00-00

Unavailable

14

WIRE HARNESS ASSY

4XY-82590-00-00

Unavailable

15

FUSE (10A)

42X-82151-00-00

$4.32

16

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

17

FUSE

1NL-82151-00-00

Unavailable

18

DIODE ASSY

3WP-81980-00-00

Unavailable

19

CLAMP

90464-16061-00

Unavailable

20

SCREW, BINDING

98907-06012-00

Unavailable

21

STAY, RELAY

4XY-81953-00-00

Unavailable

22

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

23

CLAMP(4KM)

90464-25217-00

Unavailable

24

CLAMP(M80)

90464-07209-00

Unavailable

25

CLAMP(4GY)

90464-20191-00

Unavailable

26

CLAMP(4KJ)

90464-20213-00

Unavailable

27

CLAMP(2TV)

90464-10112-00

Unavailable

28

BAND

1UA-82591-00-00

Unavailable

29

CLAMP(2TV)

90464-10112-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable

31

CLAMP(2TV)

90464-10112-00

Unavailable

32

CLAMP(2TV)

90464-10112-00

Unavailable

33

CLAMP

90464-16061-00

Unavailable

34

CLAMP(2TV)

90464-10112-00

Unavailable

35

BAND

1UA-82591-00-00

Unavailable

36

CLAMP

90464-13077-00

Unavailable

37

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

38

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

39

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

Unavailable

40

BOLT, FLANGE

95817-06020-00

Unavailable

41

RELAY ASSY

5EA-81950-01-00

Unavailable

42

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

43

THERMO SWITCH ASSY

3BT-82560-00-00

Unavailable

44

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

45

SCREW, PAN HEAD

98507-05014-00

Unavailable

46

CLAMP(4GY)

90464-10190-00

Unavailable

47

BAND

1UA-82591-00-00

Unavailable

48

FRONT STOP SWITCH ASSY

4XY-83980-10-00

Unavailable

49

SCREW, BINDING

98907-04014-00

Unavailable

50

SWITCH

4XY-82917-00-00

Unavailable

51

SCREW, BINDING

98907-04025-00

Unavailable

52

TERMINAL COMP.

4XY-8254B-00-00

Unavailable

53

NUT

4XY-82114-00-00

Unavailable

54

EMERGENCY STOP SWITCH ASSY

4BH-82576-01-00

Unavailable

55

CLAMP

90464-16061-00

Unavailable

56

WIRE, EARTH LEAD

4XY-8232Y-00-00

Unavailable

57

BOLT, FLANGE

95817-06010-00

Unavailable

58

WIRE, EARTH LEAD

4XY-82519-01-00

Unavailable

59

BOLT, FLANGE

95817-06010-00

Unavailable

60

RELAY ASSY (4XY-00)

4XY-81950-00-00

Unavailable
