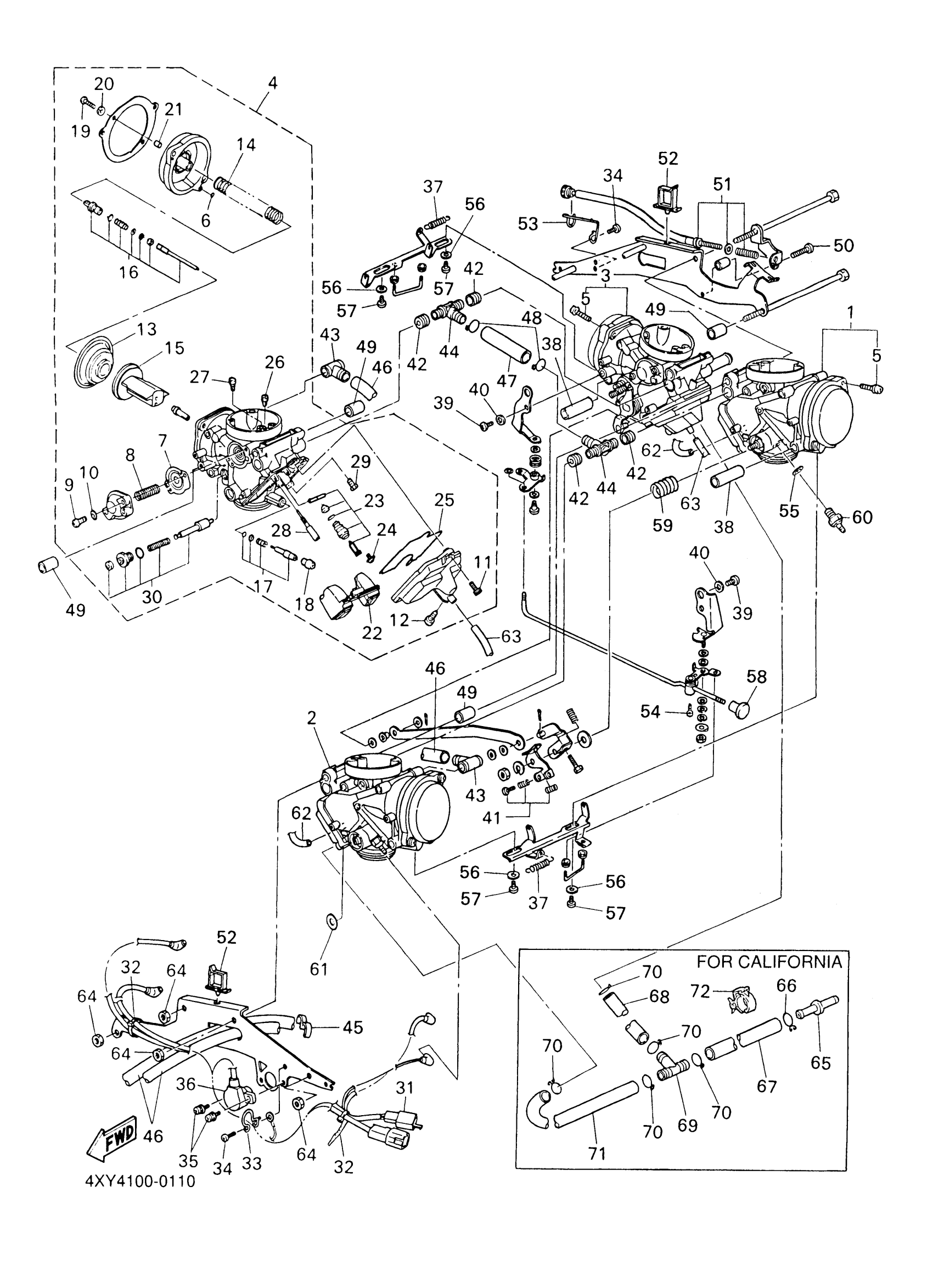

Yamaha XVZ1300TFSMC (ROYAL STAR VENTURE MM CA) 5MC2 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4XY-14901-00-00

Unavailable

1

CARBURETOR ASSY 1

4XY-14901-10-00

Unavailable

2

CARBURETOR ASSY 2

4XY-14902-00-00

Unavailable

2

CARBURETOR ASSY 2

4XY-14902-10-00

Unavailable

3

CARBURETOR ASSY 3

4XY-14903-00-00

Unavailable

3

CARBURETOR ASSY 3

4XY-14903-10-00

Unavailable

4

CARBURETOR ASSY 4

4XY-14904-00-00

Unavailable

4

CARBURETOR ASSY 4

4XY-14904-10-00

Unavailable

5

SCREW

4KM-14216-00-00

$7.99

6

O-RING (493-CARB.)

354-14147-00-00

$15.49

7

DIAPHRAGM ASSY

5AP-14940-00-00

$39.99

8

. SPRING

4XY-14589-00-00

Unavailable

9

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

10

WASHER(6TA)

92907-04100-00

$8.49

11

BOLT, SOCKET

91317-05012-00

$2.55

12

PLUG, DRAIN

4KP-14191-00-00

Unavailable

13

DIAPHRAGM ASSY

5DM-14940-00-00

Unavailable

14

SPRING, DIAPHRAGM

4XY-14933-00-00

Unavailable

15

VALVE, THROTTLE 1

5DM-14112-00-00

Unavailable

16

NEEDLE SET

4XY-1490J-00-00

Unavailable

17

PILOT SCREW SET

4XY-14105-00-00

Unavailable

18

CAP

4XY-14118-00-00

Unavailable

19

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

20

WASHER(3SX)

92907-05100-00

Unavailable

21

RING

4KM-14194-00-00

Unavailable

22

FLOAT

4SV-14985-00-00

Unavailable

23

NEEDLE VALVE SET

4KM-14107-15-00

Unavailable

24

SCREW

1FN-14565-00-00

Unavailable

25

O-RING

4XV-14562-00-00

Unavailable

26

JET, MAIN (# 85)

1HX-14231-17-00

Unavailable

27

JET, MAIN (#140)

1HX-14231-28-00

Unavailable

28

JET, PILOT (# 15)

4KM-14142-15-00

Unavailable

29

JET,MAIN(#120)

3G2-14231-24-00

Unavailable

29

JET,MAIN #117.5

3G2-1423A-74-00

Unavailable

29

JET,MAIN #122.5

3G2-1423A-75-A1

Unavailable

30

STARTER SET

4SV-1410A-00-00

Unavailable

31

WIRE, SUB LEAD

4XY-81517-00-00

Unavailable

32

CLIP, PIPE

35H-14139-00-00

Unavailable

33

CLIP

4XY-14159-00-00

Unavailable

34

SCREW, PAN HEAD(3AH)

98507-05006-00

Unavailable

35

SCREW

4WM-14565-00-00

Unavailable

36

THROTTLE SENSOR ASSY

4XY-85885-01-00

Unavailable

37

SPRING

5DM-14935-00-00

Unavailable

38

PIPE

4XY-14148-00-00

Unavailable

39

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

40

WASHER(3SX)

92907-05100-00

Unavailable

41

STOP SCREW SET

4KM-1490K-00-00

Unavailable

42

SEAL

3EN-14997-00-00

Unavailable

43

PIPE

5DM-14396-10-00

Unavailable

44

NIPPLE

4XY-14251-00-00

Unavailable

45

CLAMP(6M7)

90464-09M31-00

Unavailable

46

PIPE

4XY-14349-00-00

Unavailable

47

PIPE

4XY-14349-10-00

Unavailable

48

CLIP

4NK-14137-00-00

Unavailable

49

PIPE

4XY-14148-10-00

Unavailable

50

SCREW, PAN HEAD

98517-05020-00

Unavailable

51

THROTTLE SCREW SET

4XY-14103-00-00

Unavailable

52

CLIP

4XY-14137-00-00

Unavailable

53

CLIP, PIPE

4XY-14139-00-00

Unavailable

54

SCREW

4XY-14565-09-00

Unavailable

55

WASHER, PLATE

90201-08016-00

Unavailable

56

PACKING

4NK-14327-00-00

Unavailable

57

SCREW

4XY-24453-10-00

Unavailable

58

HOLDER

4XY-14261-00-00

Unavailable

59

SPRING

4XY-14286-00-00

Unavailable

60

HEATER ASSY

5FU-83790-01-00

Unavailable

61

WASHER

4KG-14285-00-00

Unavailable

62

PIPE

3JD-14197-00-00

Unavailable

63

PIPE

3JE-14197-00-00

Unavailable

64

NUT(6TA)

95317-06600-00

Unavailable

65

JOINT

4XY-14568-00-00

Unavailable

66

CLIP

90467-100A1-00

Unavailable

67

PIPE

4XY-14349-20-00

Unavailable

68

HOSE

31H-14987-00-00

Unavailable

69

PIPE, JOINT

3H3-24376-00-00

Unavailable

70

CLIP

3UH-14937-00-00

Unavailable

71

HOSE

3UH-14294-00-00

Unavailable

72

CLAMP(4HM)

90464-15192-00

Unavailable
