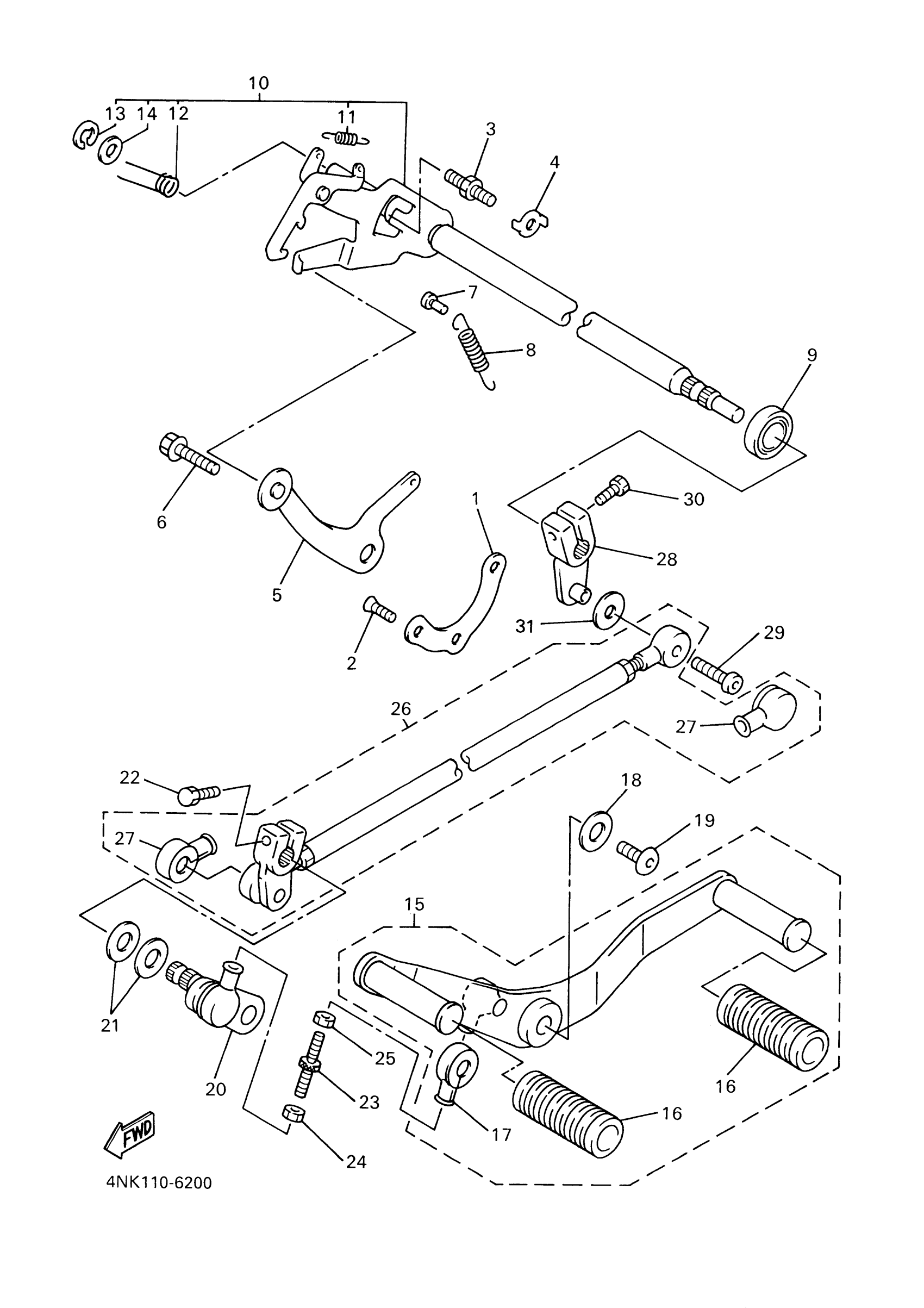

Yamaha XVZ1300TFPC (ROYAL STAR VENTURE CA) 4XYB 2002 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER, SHIFT BAR

26H-18536-00-00

Unavailable

2

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

3

BOLT (1J7)

90109-08441-00

$8.49

4

WASHER, LOCK (583 SHIFT)

90215-08115-00

$7.49

5

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

6

BOLT

90109-06036-00

$9.49

7

HOOK, SPRING

132-16346-00-00

$9.99

8

SPRING, TENSION(4NK)

90507-14064-00

$8.49

9

OIL SEAL (3Y1)

93102-14209-00

$11.49

10

SHIFT SHAFT ASSY

4NK-18101-01-00

Unavailable

11

SPRING, TENSION (4H7)

90506-08227-00

$4.19

12

SPRING, TORSION (26H)

90508-32588-00

Unavailable

13

CIRCLIP

99006-10600-00

$9.49

14

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

15

SHIFT PEDAL ASSY

4XY-18110-00-00

Unavailable

16

COVER, SHIFT PEDAL

4NK-18113-10-00

Unavailable

17

COVER, DUST

2H9-18154-00-00

Unavailable

18

WASHER, PLATE (J10)

90201-06697-00

Unavailable

19

SCREW(3LD)

90149-06280-00

Unavailable

20

SHAFT

4NK-18197-01-00

Unavailable

21

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

22

BOLT(3DM)

97024-06020-00

Unavailable

23

ROD, SHIFT

4NK-18115-00-00

Unavailable

24

NUT

9538R-06700-00

Unavailable

25

NUT (2H9)

90170-06228-00

Unavailable

26

SHIFT LEVER ASSY

4NK-18150-02-00

Unavailable

27

COVER, DUST

2H9-18154-00-00

Unavailable

28

LEVER, SHIFT 3

4NK-18151-01-00

Unavailable

29

SCREW

90149-06182-00

Unavailable

30

BOLT, HEXAGON

97017-06020-00

Unavailable

31

WASHER, PLATE

90201-06104-00

Unavailable
