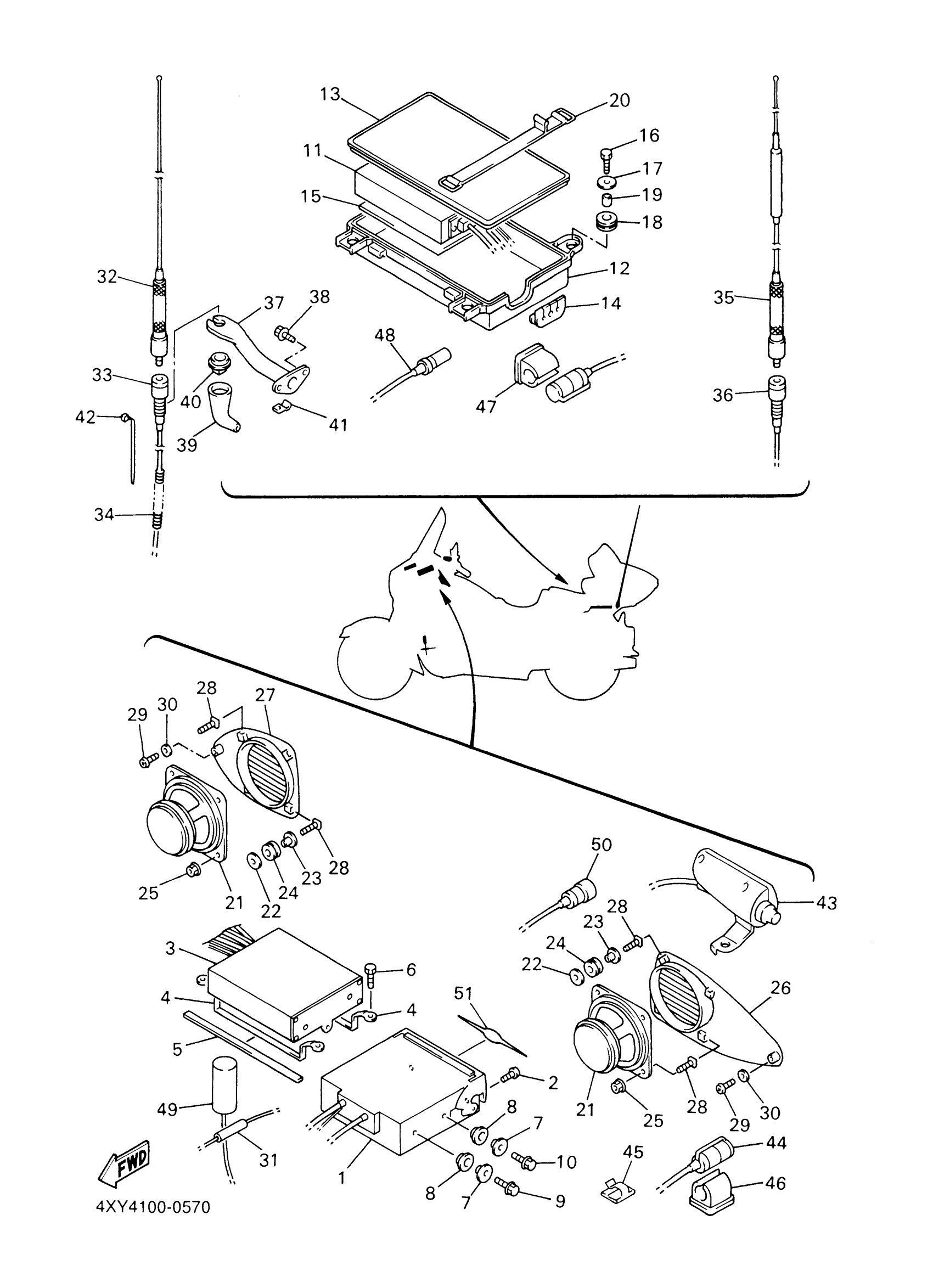

Yamaha XVZ1300TFPC (ROYAL STAR VENTURE CA) 4XYB 2002 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

CASSETTE DECK ASSY

4XY-88150-00-P5

Unavailable

2

SCREW, PAN HEAD

98517-04012-00

$3.88

3

AMP. POWER

4XY-88132-01-00

Unavailable

4

BRACKET, RADIO

4XY-88114-00-00

Unavailable

5

DAMPER

4XY-88149-00-00

$1.46

6

BOLT

97027-05010-00

Unavailable

7

COLLAR (838-84757-00)

90387-06024-00

$11.49

8

GROMMET(1FN)

90480-14429-00

$7.49

9

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

11

BLACK BOX, CB

4XY-88182-01-00

Unavailable

12

COVER 1

4XY-8818B-00-00

Unavailable

13

COVER 2

4XY-8818C-00-00

Unavailable

14

GASKET, CB

4XY-8818E-00-00

Unavailable

15

SEAT 1

4XY-8818D-00-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, PLATE

90201-06020-00

Unavailable

18

GROMMET(1UF)

90480-14450-00

Unavailable

19

COLLAR

90387-07020-00

Unavailable

20

BAND, BATTERY

4J2-82131-01-00

Unavailable

21

SPEAKER 1

4XY-88161-00-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

23

COLLAR (3L6)

90387-06737-00

Unavailable

24

GROMMET (1E5)

90480-13163-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

26

GRILLE, SPEAKER 1

4XY-88163-00-P5

Unavailable

27

GRILLE, SPEAKER 2

4XY-88173-00-P5

Unavailable

28

BOLT

4XY-28333-00-00

Unavailable

29

SCREW, TAPPING (35R)

90167-05016-00

Unavailable

30

WASHER(JF2)

92907-04600-00

Unavailable

31

FILTER, NOISE

4XY-88188-00-00

Unavailable

32

POLE, ANTENNA

4XY-88141-10-00

Unavailable

33

CABLE 1

4XY-88146-10-00

Unavailable

34

TUBE

4XY-82139-00-00

Unavailable

35

POLE, ANTENNA

4XY-88143-10-00

Unavailable

36

CABLE 2

4XY-88147-10-00

Unavailable

37

BRACKET, ANTENNA

4XY-88144-01-00

Unavailable

38

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

39

COVER

4XY-88145-00-00

Unavailable

40

SPACER

4XY-8814A-00-00

Unavailable

41

CLAMP(4GY)

90464-05188-00

Unavailable

42

CLAMP(4FM)

90464-15195-00

Unavailable

43

REMOTE CONTROL 1

4XY-88168-00-00

Unavailable

44

CORD, HEAD SET 1

4XY-88196-00-00

Unavailable

45

CLAMP

90464-07002-00

Unavailable

46

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

47

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

48

CORD, CB

4XY-88186-01-00

Unavailable

49

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

50

CORD, EXTENSION

4XY-88192-01-00

Unavailable

51

EMBLEM 3D

4XY-2839B-10-00

Unavailable
