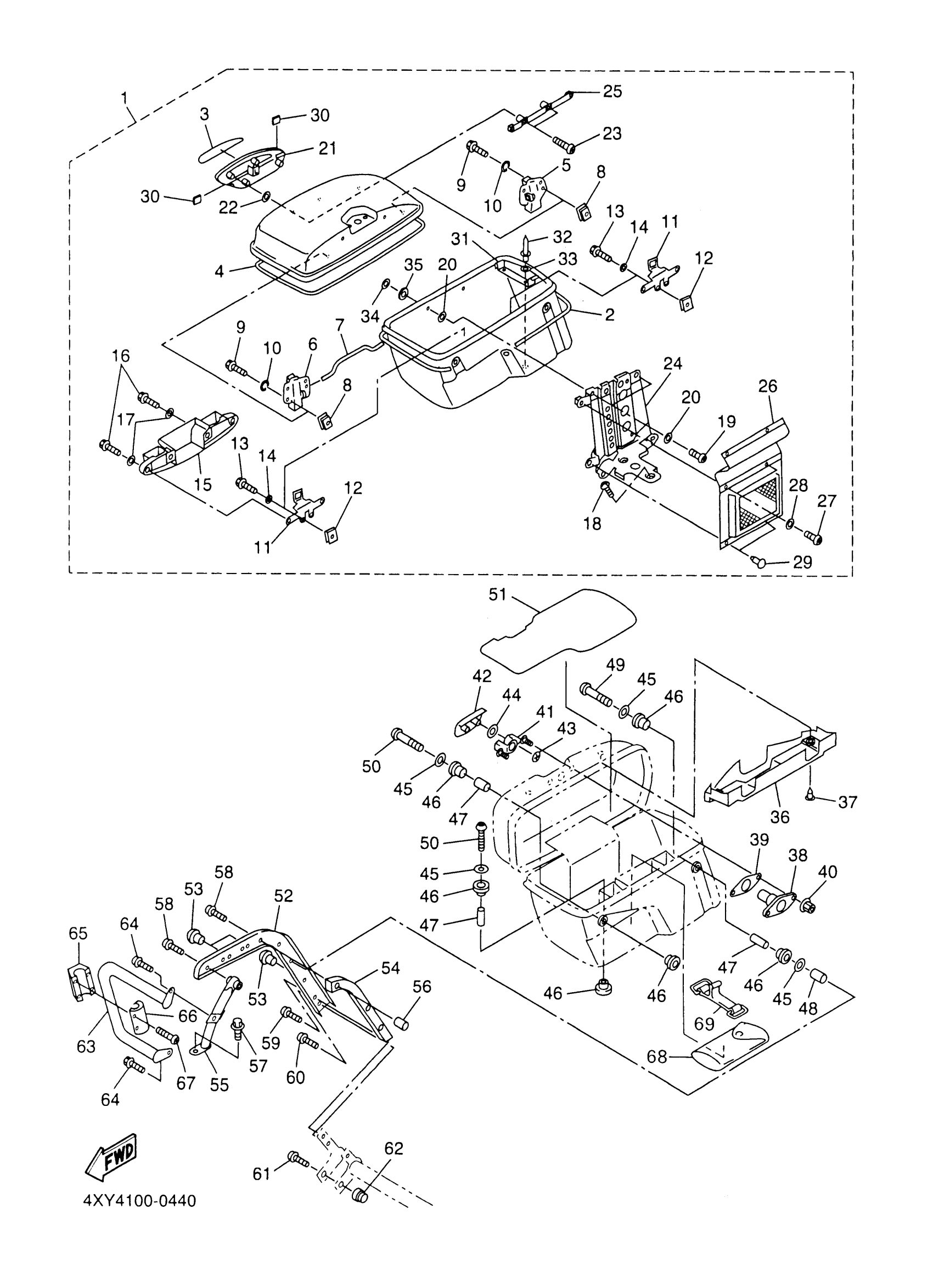

Yamaha XVZ1300TFNC (VENTURE CA) 4XY8 2001 SADDLEBAG 2 Diagram
#
1
SADDLEBAG COMP, 2
4XY-Y2844-U1-1X
Unavailable
1
SADDLEBAG COMP, 2
4XY-Y2844-2A-3X
Unavailable
2
. SADDLEBAG GRAPHIC SET 2
4XY-2840J-30-00
Unavailable
2
. SADDLEBAG GRAPHIC SET 2 (BRIGHT CHERRY RED)
4XY-2840J-50-00
Unavailable
3
ORNAMENT 2
4XY-2847B-50-00
Unavailable
4
SEAL 1
4XY-28428-00-00
Unavailable
11
HOOK 2
4XY-28498-00-00
Unavailable
15
COVER 3
4XY-2843J-00-00
Unavailable
16
BOLT, BUTTON HEAD
92017-05008-00
Unavailable
18
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
19
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
20
WASHER PLATE (664)
90201-05556-00
Unavailable
21
HING 3
4XY-28454-10-00
Unavailable
22
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
23
BOLT, BUTTON HEAD
92017-05020-00
Unavailable
24
REINFORCEMENT 2
4XY-28437-00-00
Unavailable
25
PLATE 5
4XY-2847H-00-00
Unavailable
26
STOPPER, OPEN
4XY-2845M-00-00
Unavailable
27
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
29
RIVET(81E)
90269-05055-00
Unavailable
30
PLATE, RUBBER 4
4XY-28499-00-00
Unavailable
31
PLATE
4XY-2843L-00-00
Unavailable
32
YBS34-46A RIVET
90267-32003-00
Unavailable
33
WASHER(3SX)
92907-03600-00
Unavailable
34
WASHER (853)
90201-08326-00
Unavailable
35
SEAL 2
4XY-28429-00-00
Unavailable
36
COVER LOCK ASSY 2
4XY-2849K-00-00
Unavailable
37
RIVET
90269-06081-00
Unavailable
38
LOCK ASSY 3
4XY-W2843-00-00
Unavailable
39
PLATE, RUBBER 5
4XY-2845J-00-00
Unavailable
40
NUT, S/L FLANGE
95607-05200-00
Unavailable
41
PLATE 6
4XY-2849H-00-00
Unavailable
42
COVER 6
4XY-2843C-00-00
Unavailable
43
NUT SPRING 116283170100
90183-04005-00
Unavailable
44
DAMPER
4KJ-28371-00-00
Unavailable
45
WASHER (23T)
90201-065G8-00
Unavailable
46
GROMMET(1NL)
90480-20447-00
Unavailable
47
COLLAR(82M)
90387-084R5-00
Unavailable
48
COLLAR
90387-0811N-00
Unavailable
49
BOLT, BUTTON HEAD
92017-06055-00
Unavailable
50
BOLT, BUTTON
92017-06035-00
Unavailable
51
SEAT 2
4XY-2848K-01-00
Unavailable
52
FRAME, SADDLEBAG 2
4XY-28474-00-00
Unavailable
53
PLUG
90338-07259-00
Unavailable
54
DAMPER 2
4YE-28416-00-00
Unavailable
55
STAY, FRONT GUARD 2
4YE-28414-02-00
Unavailable
56
COLLAR
90387-0811N-00
Unavailable
57
BOLT, FLANGE
95817-08014-00
Unavailable
58
BOLT, BUTTON HEAD(4TR)
92014-08040-00
Unavailable
59
BOLT, BUTTON
92014-08016-00
Unavailable
60
BOLT, BUTTON
92014-08020-00
Unavailable
61
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
62
NUT, CAP
95307-08800-00
Unavailable
63
GUARD, SADDLEBAG 2
4XY-2842K-00-00
Unavailable
64
BOLT, FLANGE
95814-08016-00
Unavailable
65
REFLECTOR, REAR 1
4YE-85131-00-00
Unavailable
66
BRACKET, REFLECTOR 1
4YE-85132-00-00
Unavailable
67
SCREW, TAPPING(3NX)
97707-30514-00
Unavailable
68
TOOL KIT
4XY-28100-01-00
Unavailable
69
BAND
55K-2811G-00-00
Unavailable
