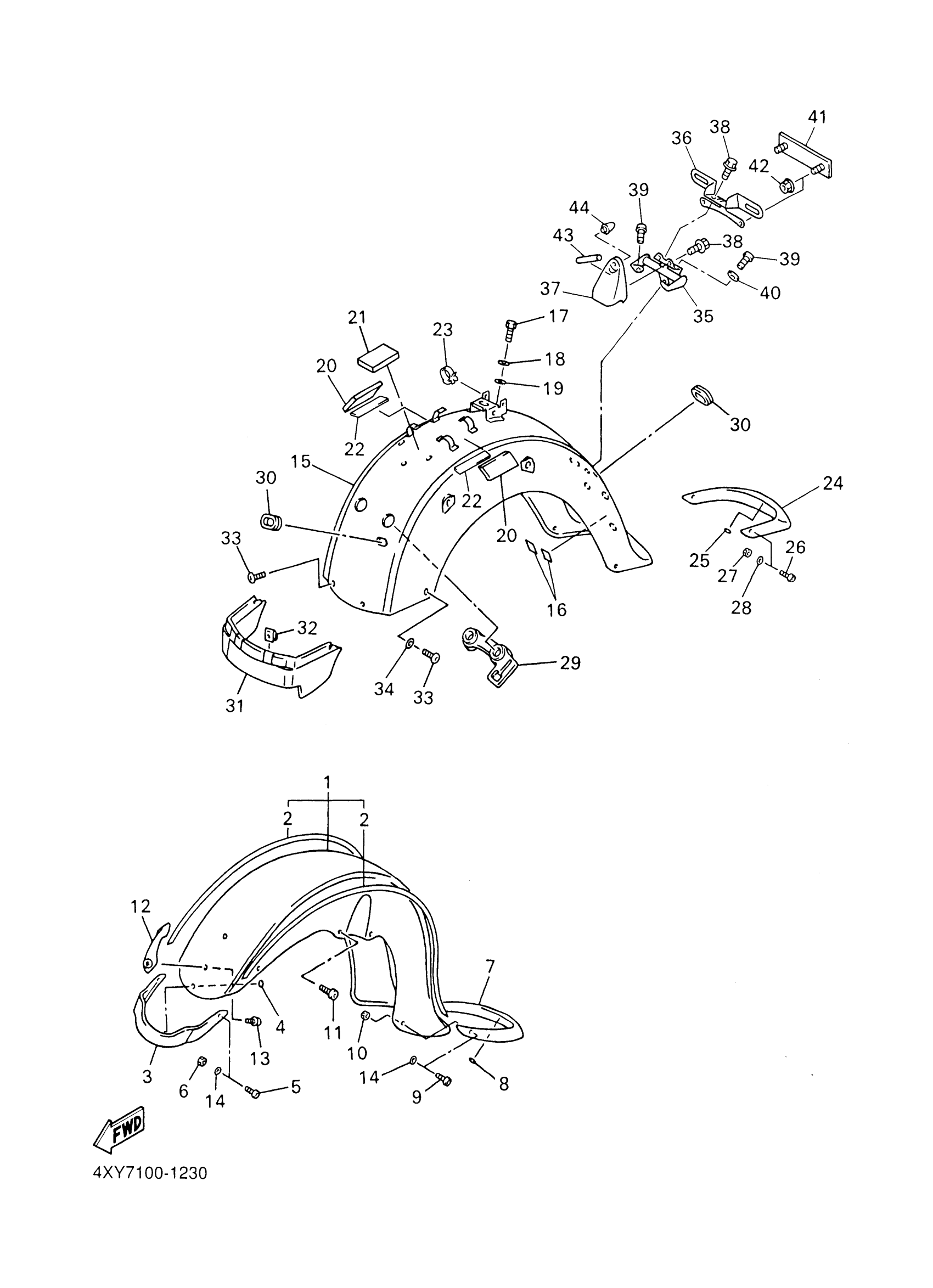

Yamaha XVZ1300TFNC (VENTURE CA) 4XY8 2001 FENDER Diagram
#
1
FRONT FENDER ASSY
4NL-Y2150-N0-2Y
Unavailable
1
FRONT FENDER COMP.
4NL-W2151-R1-4Y
Unavailable
2
. GRAPHIC SET, FRONT FENDER (LIGHT GREENISH GRAY METALLIC 6)
4XY-21570-30-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (BRIGHT CHERRY RED)
4XY-21570-50-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
12
MASCOT
4NL-21577-10-00
Unavailable
14
SEAL 1
4NL-21575-10-00
Unavailable
15
REAR FENDER COMP. (BRIGHT CHERRY RED)
4XY-21610-10-FW
Unavailable
15
REAR FENDER COMP. (LIGHT GREENISH GRAY METALLIC 6)
4XY-21610-10-P2
Unavailable
16
PROTECTOR
3MA-27491-00-00
Unavailable
17
BOLT, HEXAGON
97017-08016-00
Unavailable
18
WASHER(6TC)
92907-08200-00
Unavailable
19
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
20
DAMPER 2
4XY-21639-00-00
Unavailable
21
DAMPER
4XY-21649-00-00
Unavailable
22
DAMPER 1
4XY-21638-00-00
Unavailable
23
CLAMP(4TR)
90464-18246-00
Unavailable
24
FLAP
4NL-21621-10-00
Unavailable
28
SEAL 1
4NL-21575-10-00
Unavailable
29
DAMPER
4NK-21649-00-00
Unavailable
30
GROMMET (438)
90480-15061-00
Unavailable
31
FLAP (BRIGHT CHERRY RED)
4NK-21621-00-FW
Unavailable
31
FLAP (LIGHT GREENISH GRAY METALLIC 6)
4NK-21621-00-P5
Unavailable
32
NUT, SPRING(4ES)
90183-06069-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
WASHER, PLATE
90202-06170-00
Unavailable
35
STAY, 9
4XY-2317W-00-00
Unavailable
36
BRACKET, LICENSE
4XY-84751-00-00
Unavailable
37
BRACKET
4XY-84703-00-00
Unavailable
38
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
39
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
40
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
41
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
42
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
43
HOSE (583)
90446-07114-00
Unavailable
44
DAMPER 2
5A8-21639-00-00
Unavailable
