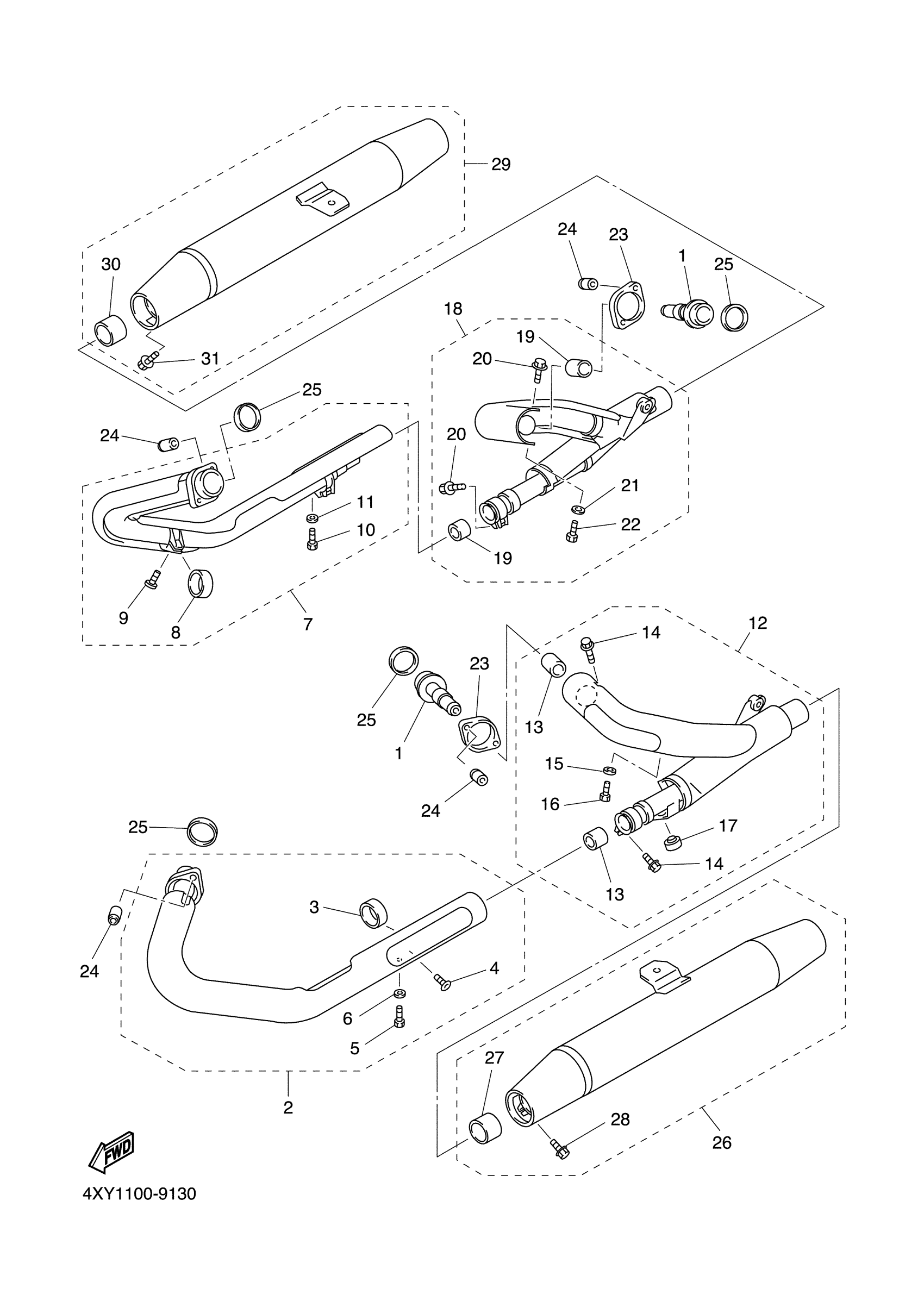

Yamaha XVZ1300TFNC (VENTURE CA) 4XY8 2001 EXHAUST Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE

4YE-14614-00-00

Unavailable

2

EXHAUST PIPE ASSY 2

4NK-14620-01-00

$349.38

3

GASKET, MUFFLER

4NK-14714-00-00

$20.47

4

BOLT, BUTTON

92017-08025-00

$5.75

5

BOLT (FJ1)

97080-06008-00

$1.61

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

EXHAUST PIPE ASSY 4

4NK-14650-01-00

Unavailable

8

GASKET, MUFFLER

4NK-14714-00-00

$20.47

9

BOLT, BUTTON

92017-08025-00

$5.75

10

BOLT (FJ1)

97080-06008-00

$1.61

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

CHAMBER ASSY

4XY-14730-00-00

Unavailable

13

GASKET, MUFFLER

4BH-14714-00-00

$37.04

14

BOLT, FLANGE(2UJ)

95024-08020-00

$6.22

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

BOLT (FJ1)

97080-06008-00

$1.61

17

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

18

CHAMBER ASSY

4XY-14730-10-00

Unavailable

19

GASKET, MUFFLER

4BH-14714-00-00

$37.04

20

BOLT, FLANGE(2UJ)

95024-08020-00

$6.22

21

WASHER, PLAIN (646)

92990-06600-00

$1.84

22

BOLT (FJ1)

97080-06008-00

$1.61

23

NUT, RING

4KG-14612-01-00

Unavailable

24

NUT

90179-08442-00

Unavailable

25

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable

26

MUFFLER ASSY 1

4XY-14710-01-00

Unavailable

27

GASKET, MUFFLER

3XW-14714-00-00

Unavailable

28

BOLT, FLANGE(4PU)

95814-08025-00

Unavailable

29

MUFFLER ASSY 2

4XY-14720-01-00

Unavailable

30

GASKET, MUFFLER

3XW-14714-00-00

Unavailable

31

BOLT, FLANGE(4PU)

95814-08025-00

Unavailable
