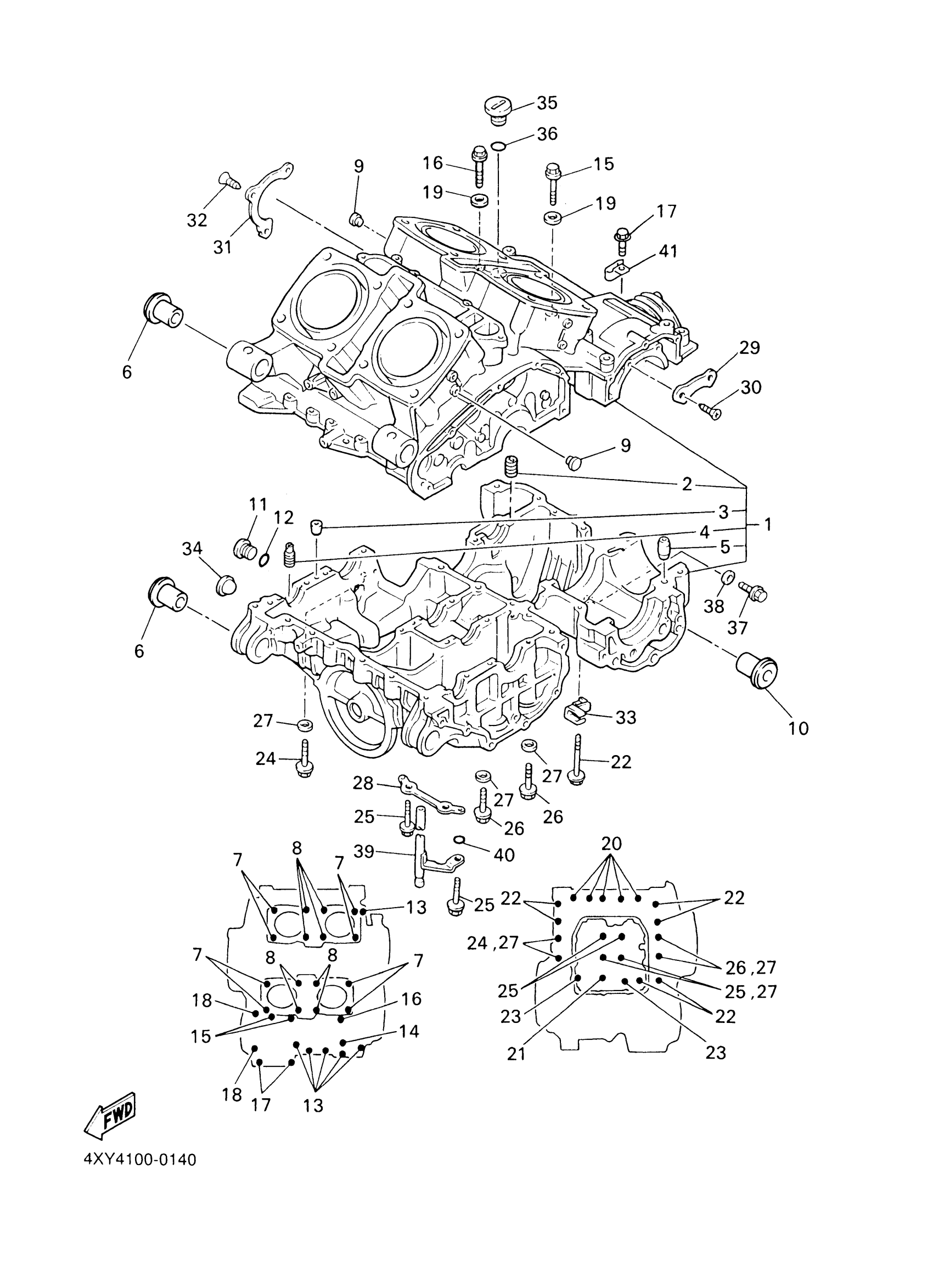

Yamaha XVZ1300TFNC (VENTURE CA) 4XY8 2001 CRANKCASE Diagram
#
1
CRANKCASE ASSY
4XY-15100-00-00
Unavailable
3
NOZZLE 2
26H-15148-00-00
Unavailable
15
BOLT, FLANGE(3JP)
95814-06090-00
Unavailable
16
BOLT, FLANGE
95817-06095-00
Unavailable
17
BOLT, FLANGE
95814-08045-00
Unavailable
18
BOLT, FLANGE
95814-08080-00
Unavailable
19
GASKET (4V2)
90430-06166-00
Unavailable
20
BOLT, FLANGE
95817-08050-00
Unavailable
21
BOLT, WASHER BASED
90105-084A1-00
Unavailable
22
BOLT, FLANGE
95814-08080-00
Unavailable
23
BOLT, FLANGE(8BT)
95817-08095-00
Unavailable
24
BOLT(3JP)
90109-103G0-00
Unavailable
25
BOLT, WASHER BASED (26H)
90105-10248-00
Unavailable
26
BOLT, WASHER BASED (26H)
90105-10249-00
Unavailable
27
WASHER PLATE 256111740000
90201-10131-00
Unavailable
28
PLATE
26H-15113-00-00
Unavailable
29
PLATE, BEARING COVER
26H-15381-00-00
Unavailable
30
SCREW
90149-08013-00
Unavailable
31
PLATE, BEARING COVER
26H-15383-00-00
Unavailable
32
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
33
CLAMP (26H)
90465-08233-00
Unavailable
34
GAUGE, LEVEL
2H7-15361-00-00
Unavailable
35
PLUG, OIL
4NK-15363-00-00
Unavailable
36
O-RING(1KT)
93210-27778-00
Unavailable
37
BOLT, FLANGE(4GY)
95817-12016-00
Unavailable
38
WASHER, PLATE
90201-12790-00
Unavailable
39
PIPE, BREATHER
26H-15373-00-00
Unavailable
40
O-RING(26H)
93210-06667-00
Unavailable
41
CLAMP
90461-14150-00
Unavailable
