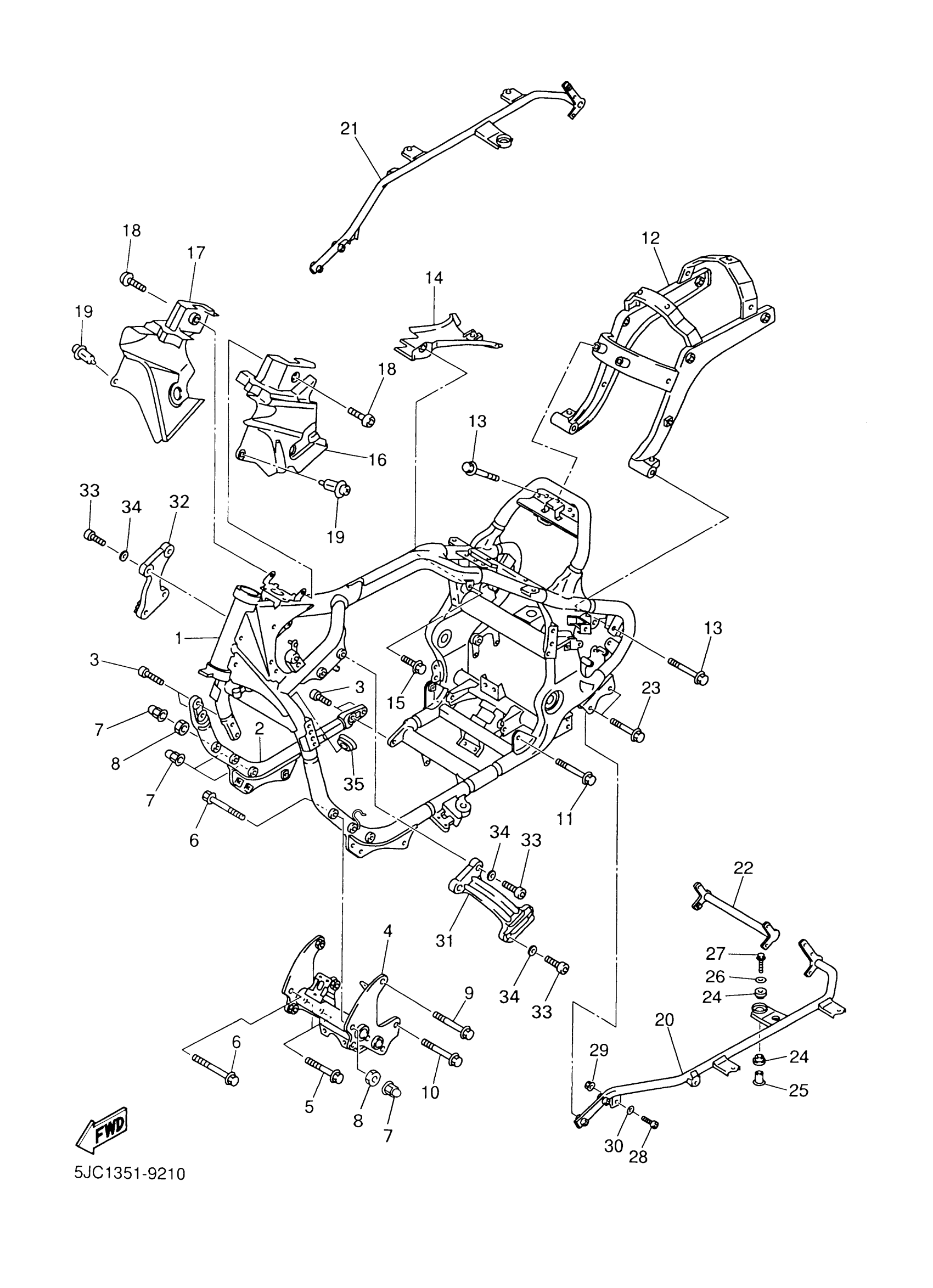

Yamaha XVZ1300TFMC (ROYAL STAR VENTURE CA) 4XY5 2000 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4XY-21110-00-33

Unavailable

2

DOWN TUBE COMP.2

4XY-21150-00-33

$276.99

3

BOLT, SOCKET

91317-10030-00

$9.49

4

CROSS BAR COMPLETE

4XY-2141V-00-00

Unavailable

5

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

6

BOLT, FLANGE

95817-10080-00

$5.60

7

NUT, CROWN(2GG)

90176-10075-00

$8.49

8

NUT

90170-10206-00

$5.60

9

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

10

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

11

BOLT, WASHER BASED (26H)

90105-12252-00

$11.49

12

REAR FRAME COMP.

4XY-21190-02-00

Unavailable

13

BOLT, FLANGE

95817-10035-00

$9.49

14

COVER 2

4XY-2117M-00-00

Unavailable

15

BOLT, WITH WASHER

90119-06236-00

$8.49

16

COVER, SIDE 5

4XY-2171E-00-00

Unavailable

17

COVER, SIDE 6

4XY-2171X-00-00

Unavailable

18

SCREW, BINDING (10V)

90154-05013-00

Unavailable

19

RIVET

90269-06001-00

Unavailable

20

STAY, MUFFLER 1

4XY-21445-00-00

Unavailable

21

STAY, MUFFLER 2

4XY-21446-00-00

Unavailable

22

STAY, MUFFLER 3

4YE-2144F-01-00

Unavailable

23

BOLT, WASHER BASED(36Y)

90105-08310-00

Unavailable

24

DAMPER, MUFFLER

36Y-14747-00-00

Unavailable

25

COLLAR

4G0-14638-00-00

Unavailable

26

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

27

BOLT, FLANGE

95814-10040-00

Unavailable

28

BOLT, SOCKET

91317-08035-00

Unavailable

29

NUT, SELF-LOCKING

90185-08169-00

Unavailable

30

WASHER (853)

90201-08326-00

Unavailable

31

STAY, ENGINE 2

4XY-21315-00-00

Unavailable

32

STAY, ENGINE 3

4XY-21316-00-00

Unavailable

33

BOLT, SOCKET

91314-10035-00

Unavailable

34

WASHER, PLATE

92990-10600-00

Unavailable

35

GROMMET(41Y)

90480-01401-00

Unavailable
