Description

Price

1

SINGLE SEAT ASSY

4YE-24710-00-00

Unavailable

2

PAD, SEAT

22W-24741-00-00

$8.99

3

DAMPER, SEAT

509-24724-00-00

$10.99

4

BRACKET, SEAT

4NK-24728-00-00

$11.99

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

SEAT LOCK ASSY

50W-W247E-00-00

Unavailable

7

PLATE

4NK-24792-00-00

Unavailable

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

CABLE, SEAT LOCK

4YE-2478E-00-00

Unavailable

10

SEAT LOCK ASSY

4YE-W2470-00-00

Unavailable

11

BOLT, BUTTON

92017-05012-00

$3.55

12

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

13

COVER

4NK-24796-00-00

$66.99

14

PLUG(1FN)

90338-23172-00

$12.49

15

PLUG

90338-36258-00

Unavailable

16

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

17

RIVET

90269-06001-00

Unavailable

18

PLATE, EPA 2 (CALIFORNIA)

4YE-2179R-30-00

Unavailable

18

PLATE, EPA 1 (NON CALIFORNIA)

4YE-2179V-30-00

Unavailable

19

TANDEM SEAT ASSY

4YE-24750-00-00

Unavailable

20

PAD, SEAT

22W-24741-00-00

$8.99

21

STAY, SEAT

4NK-2471A-00-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

$1.23

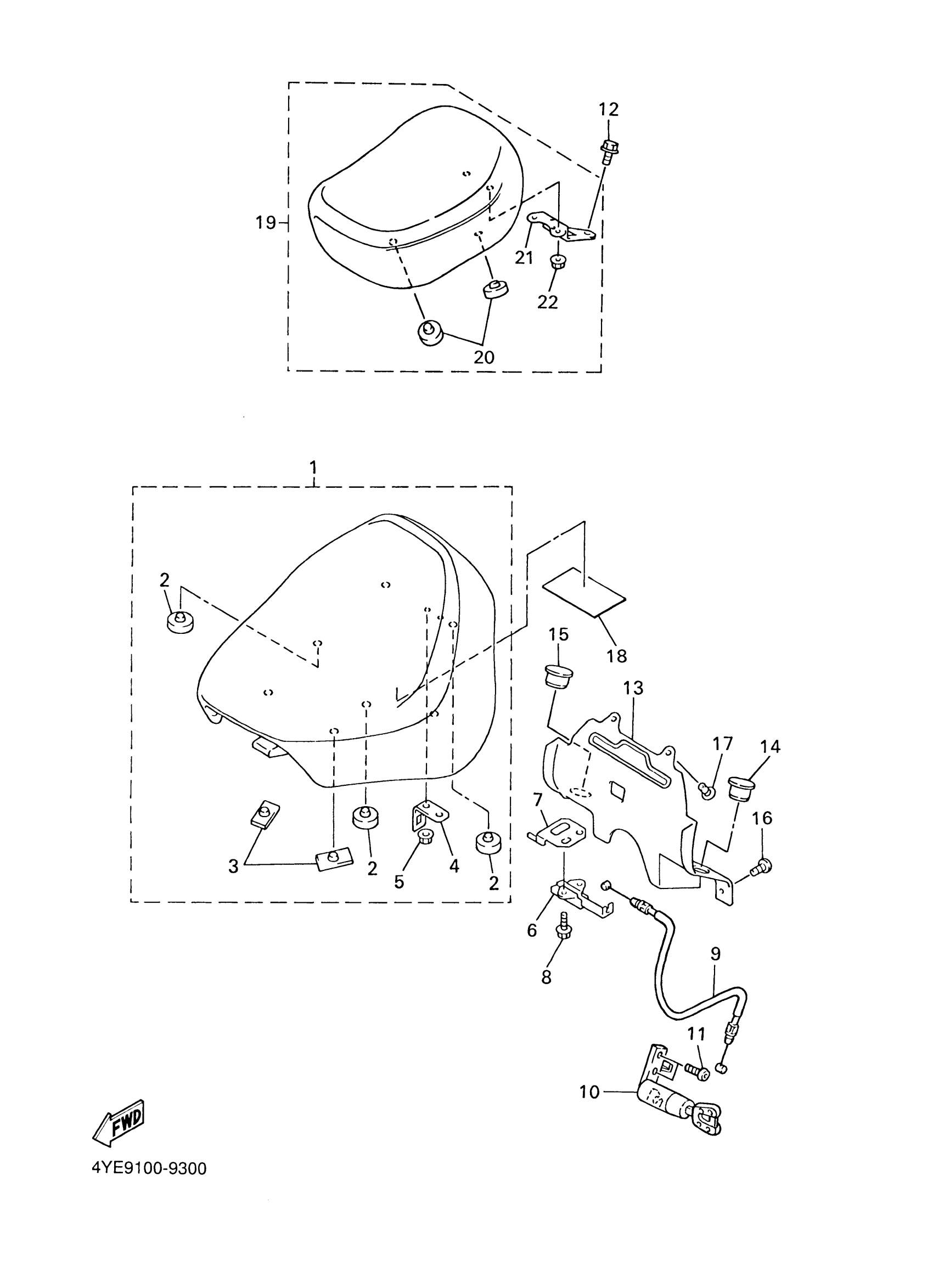

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 SEAT Diagram

SINGLE SEAT ASSY

PAD, SEAT

DAMPER, SEAT

BRACKET, SEAT

NUT, FLANGE(4MV)

SEAT LOCK ASSY

PLATE

BOLT, FLANGE

CABLE, SEAT LOCK

SEAT LOCK ASSY

BOLT, BUTTON

BOLT, FLANGE(2UJ)

COVER

PLUG(1FN)

PLUG

BOLT,HEX. SOCKET BUTTON

RIVET

PLATE, EPA 2 (CALIFORNIA)

PLATE, EPA 1 (NON CALIFORNIA)

TANDEM SEAT ASSY

PAD, SEAT

STAY, SEAT

NUT, FLANGE(4MV)
