Description

Price

1

REAR ARM COMP.

4YE-W2211-00-35

Unavailable

2

BEARING (26H)

93332-00051-00

Unavailable

2

BEARING (26H)

93332-00051-00

Unavailable

3

OIL SEAL(39X)

93106-28023-00

$12.49

4

COLLAR (26H)

90387-204H5-00

$16.99

5

DAMPER

2AL-84553-00-00

$11.99

6

SHAFT, PIVOT 2

4NK-2214H-00-00

Unavailable

7

SHAFT, PIVOT

4NK-22141-09-00

Unavailable

8

NUT

26H-22143-00-00

Unavailable

9

COVER

2H7-2219X-00-00

$35.99

10

BOOT, RUBBER

26H-22189-00-00

Unavailable

11

BOLT (682)

97013-08025-00

$8.49

12

.. WASHER, PLATE

92990-08600-00

Unavailable

13

PLUG (4X7)

90338-20113-00

Unavailable

14

ARM, RELAY

4NK-2217A-00-00

Unavailable

15

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

16

COLLAR (34L)

90387-122J6-00

Unavailable

17

BOLT(2AL)

90109-104E4-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

19

ARM 1

4NK-2217M-00-00

Unavailable

20

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

21

COLLAR(4BH)

90387-126Y1-00

Unavailable

22

BOLT(4BH)

90101-12749-00

Unavailable

23

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

24

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

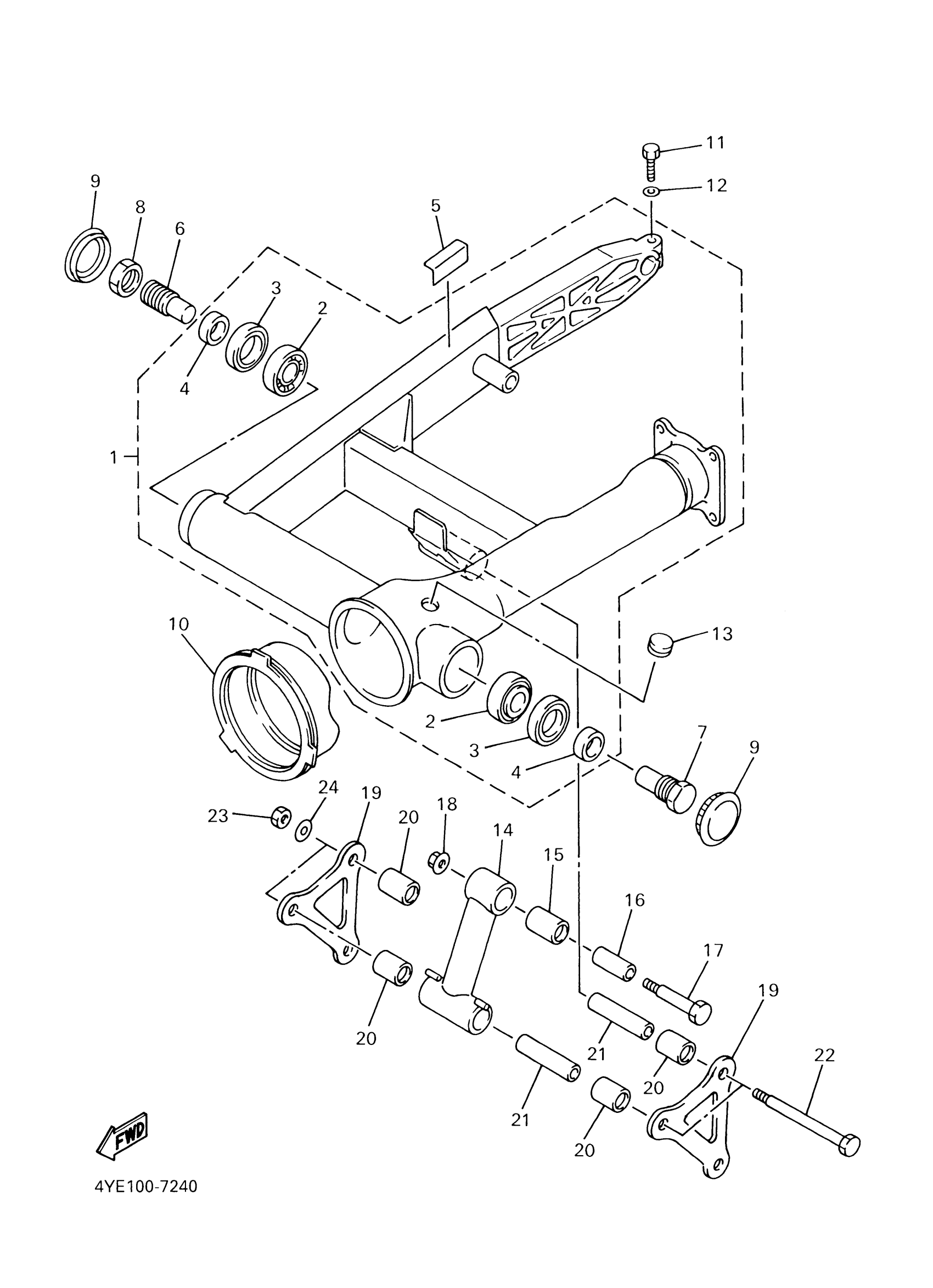

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 REAR ARM Diagram

REAR ARM COMP.

BEARING (26H)

BEARING (26H)

OIL SEAL(39X)

COLLAR (26H)

DAMPER

SHAFT, PIVOT 2

SHAFT, PIVOT

NUT

COVER

BOOT, RUBBER

BOLT (682)

.. WASHER, PLATE

PLUG (4X7)

ARM, RELAY

BEARING, CYLINDRICAL(2GH)

COLLAR (34L)

BOLT(2AL)

NUT, SELF-LOCKING(JN5)

ARM 1

BEARING, CYLINDRICAL(2GH)

COLLAR(4BH)

BOLT(4BH)

NUT, SELF LOCKING (23X)

WASHER, PLATE (4N0)
