Description

Price

1

MASTER CYLINDER SUB ASSY

4NK-W2587-02-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

PLUG(42H)

90338-06162-00

$11.49

15

HOSE, BRAKE 1

4NK-25872-01-00

$99.99

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

JOINT

4NK-25885-00-00

Unavailable

19

BOLT,SOCKET

91317-06020-00

Unavailable

20

HOSE, BRAKE 2

4NK-25873-01-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

4NK-25875-00-00

Unavailable

24

HOLDER, BRAKE HOSE

4NK-25886-00-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

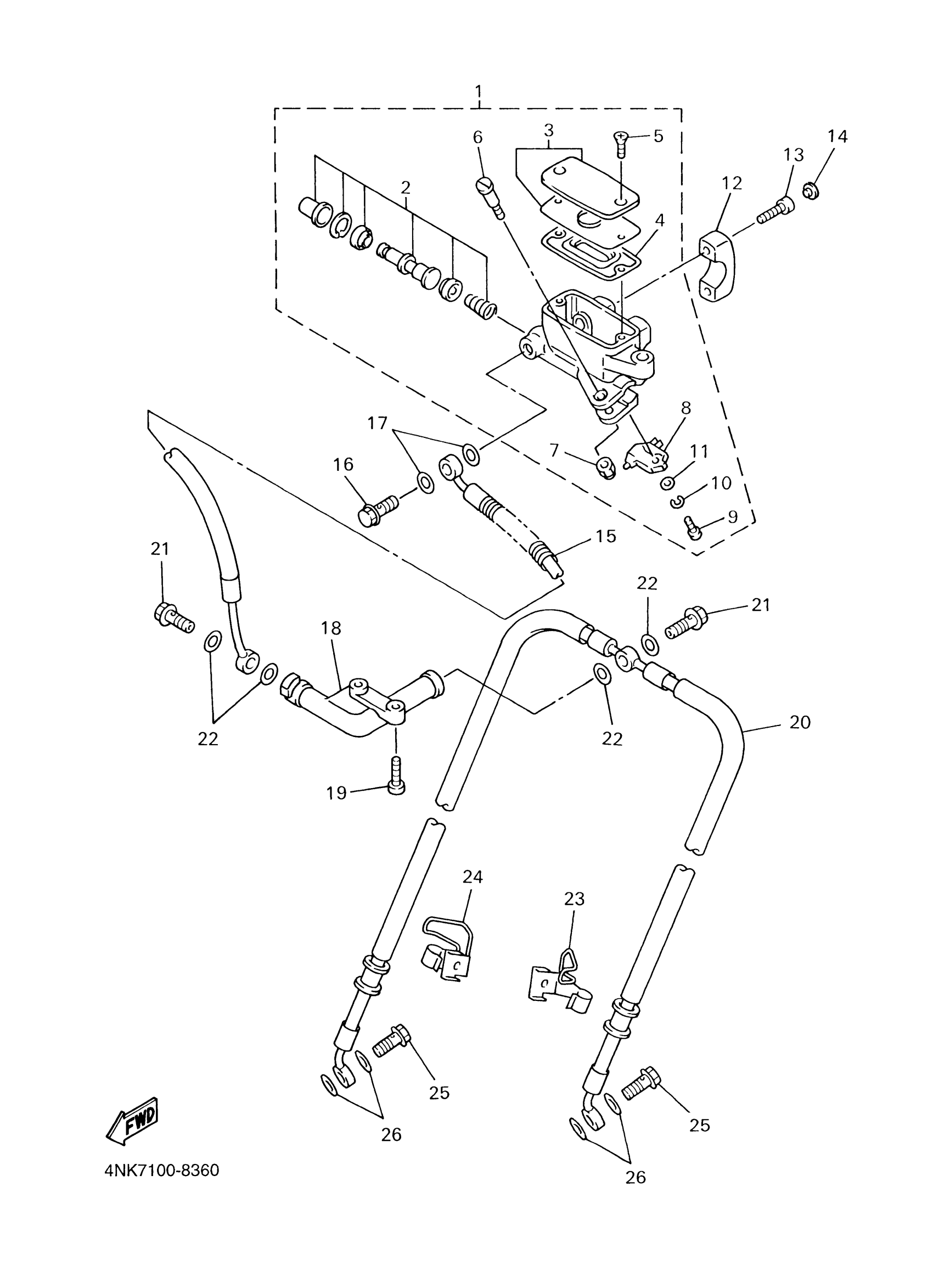

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MASTER

RESERVOIR CAP SET

DIAPHRAGM, RESERVOIR

SCREW

BOLT, LEVER

NUT, U(4NK)

FRONT STOP SWITCH ASSY

SCREW, PAN HEAD

WASHER(6TA)

WASHER(JF2)

BRACKET, MASTER CYLINDER

BOLT,SOCKET HEAD

PLUG(42H)

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

JOINT

BOLT,SOCKET

HOSE, BRAKE 2

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

HOLDER, BRAKE HOSE

BOLT, UNION(3GM)

WASHER, PLATE(481)
