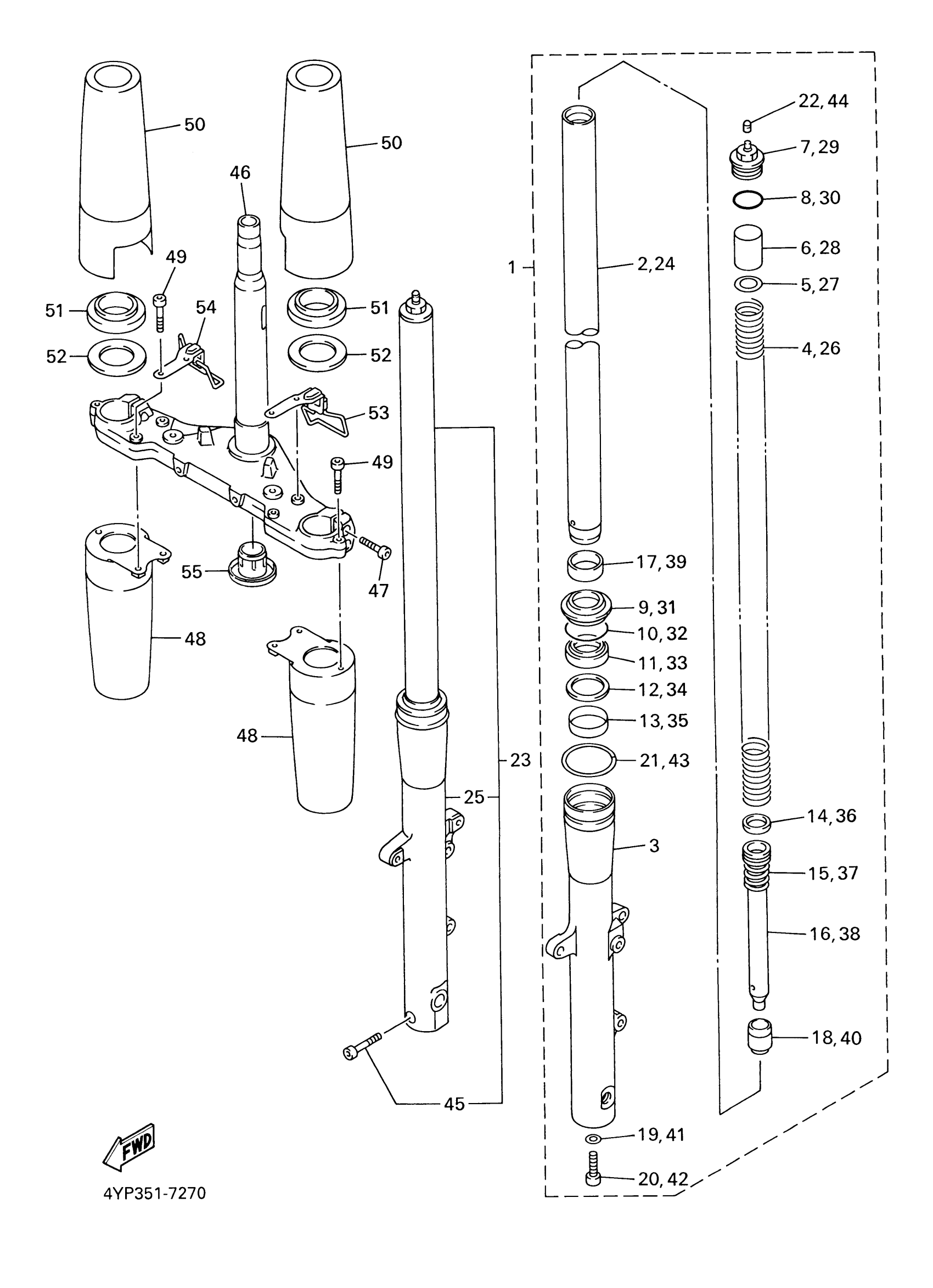

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4YP-23102-00-00

Unavailable

2

. INNER TUBE COMP 1

4NK-23110-00-00

Unavailable

3

. TUBE, OUTER (LEFT)

4NK-23126-00-00

Unavailable

4

SPRING, FRONT FORK

4NK-23141-01-00

Unavailable

5

. SEAT, SPRING UPPER

4NK-23142-00-00

Unavailable

6

. SPACER

4NK-23118-01-00

Unavailable

7

. BOLT, CAP

4YP-23111-00-00

Unavailable

8

O-RING

4NK-23147-00-00

$6.99

9

SEAL, DUST

4NK-23144-00-00

Unavailable

10

RING, SNAP

34L-23153-00-00

Unavailable

11

OIL SEAL

4NK-23145-00-00

$27.99

12

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

13

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

14

RING, PISTON

4NK-23157-00-00

$9.99

15

SPRING, REBOUND

4NK-23151-00-00

Unavailable

16

. PISTON, FRONT FORK

4NK-23171-00-00

Unavailable

17

METAL, SLIDE 2

4NK-23135-01-00

Unavailable

18

. SPACER, OIL LOCK

4NK-23166-00-00

Unavailable

19

GASKET

3MA-23163-10-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

21

GUIDE, BOOT

4NK-23193-00-00

Unavailable

22

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

23

FRONT FORK ASSY (R.H)

4YP-23103-00-00

Unavailable

24

. INNER TUBE COMP 1

4NK-23110-00-00

Unavailable

25

. TUBE, OUTER (RIGHT)

4NK-23136-00-00

Unavailable

26

SPRING, FRONT FORK

4NK-23141-01-00

Unavailable

27

. SEAT, SPRING UPPER

4NK-23142-00-00

Unavailable

28

. SPACER

4NK-23118-01-00

Unavailable

29

. BOLT, CAP

4YP-23111-00-00

Unavailable

30

O-RING

4NK-23147-00-00

$6.99

31

SEAL, DUST

4NK-23144-00-00

Unavailable

32

RING, SNAP

34L-23153-00-00

Unavailable

33

OIL SEAL

4NK-23145-00-00

$27.99

34

WASHER, OIL SEAL

4NK-23146-00-00

$9.99

35

METAL, SLIDE 1

4NK-23125-00-00

Unavailable

36

RING, PISTON

4NK-23157-00-00

$9.99

37

SPRING, REBOUND

4NK-23151-00-00

Unavailable

38

. PISTON, FRONT FORK

4NK-23171-00-00

Unavailable

39

METAL, SLIDE 2

4NK-23135-01-00

Unavailable

40

. SPACER, OIL LOCK

4NK-23166-00-00

Unavailable

41

GASKET

3MA-23163-10-00

Unavailable

42

BOLT, HEXAGON SOCKET HEAD

4NK-23181-00-00

Unavailable

43

GUIDE, BOOT

4NK-23193-00-00

Unavailable

44

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

45

BOLT, SOCKET

91314-08035-00

Unavailable

46

UNDER BRACKET COMP.

4YP-23340-00-00

Unavailable

47

BOLT, SOCKET

91317-08030-00

Unavailable

48

COVER, LOWER 1

4NK-23123-00-00

Unavailable

49

BOLT, HEXAGON SOCKET HEAD

4NK-23181-10-00

Unavailable

50

COVER, UPPER 1

4NK-23121-00-00

Unavailable

51

GASKET

4NK-23163-00-00

Unavailable

52

WASHER, FELT

4NK-23165-00-00

Unavailable

53

GUIDE, CABLE

4NK-2331E-00-00

Unavailable

54

GUIDE, CABLE

4NK-23389-00-00

Unavailable

55

COVER, LOWER 1

4KM-23123-01-00

Unavailable
