Description

Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

3

RING, WHEEL 2 (RIGHT)

4NK-2515A-00-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

5

CALIPER ASSY (LEFT

4NK-2580T-01-00

Unavailable

6

PISTON ASSY, CALIPER

1NL-W0057-00-00

$210.99

7

CALIPER SEAL KIT

1NL-W0047-00-00

$69.99

8

BRAKE PAD KIT

4NK-W0045-01-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

COVER, DUST

1KT-25836-01-00

$17.49

11

PIN, PAD

3HE-25924-00-00

Unavailable

12

CLIP, PAD PIN

3GM-25925-00-00

$11.99

13

SUPPORT, PAD

2GH-25919-00-00

Unavailable

14

CALIPER ASSY (RIGH

4NK-2580U-01-00

Unavailable

15

PISTON ASSY, CALIPER

1NL-W0057-00-00

$210.99

16

CALIPER SEAL KIT

1NL-W0047-00-00

$69.99

17

BRAKE PAD KIT

4NK-W0045-01-00

Unavailable

18

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

19

COVER, DUST

1KT-25836-01-00

$17.49

20

PIN, PAD

3HE-25924-00-00

Unavailable

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

SUPPORT, PAD

2GH-25919-00-00

Unavailable

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

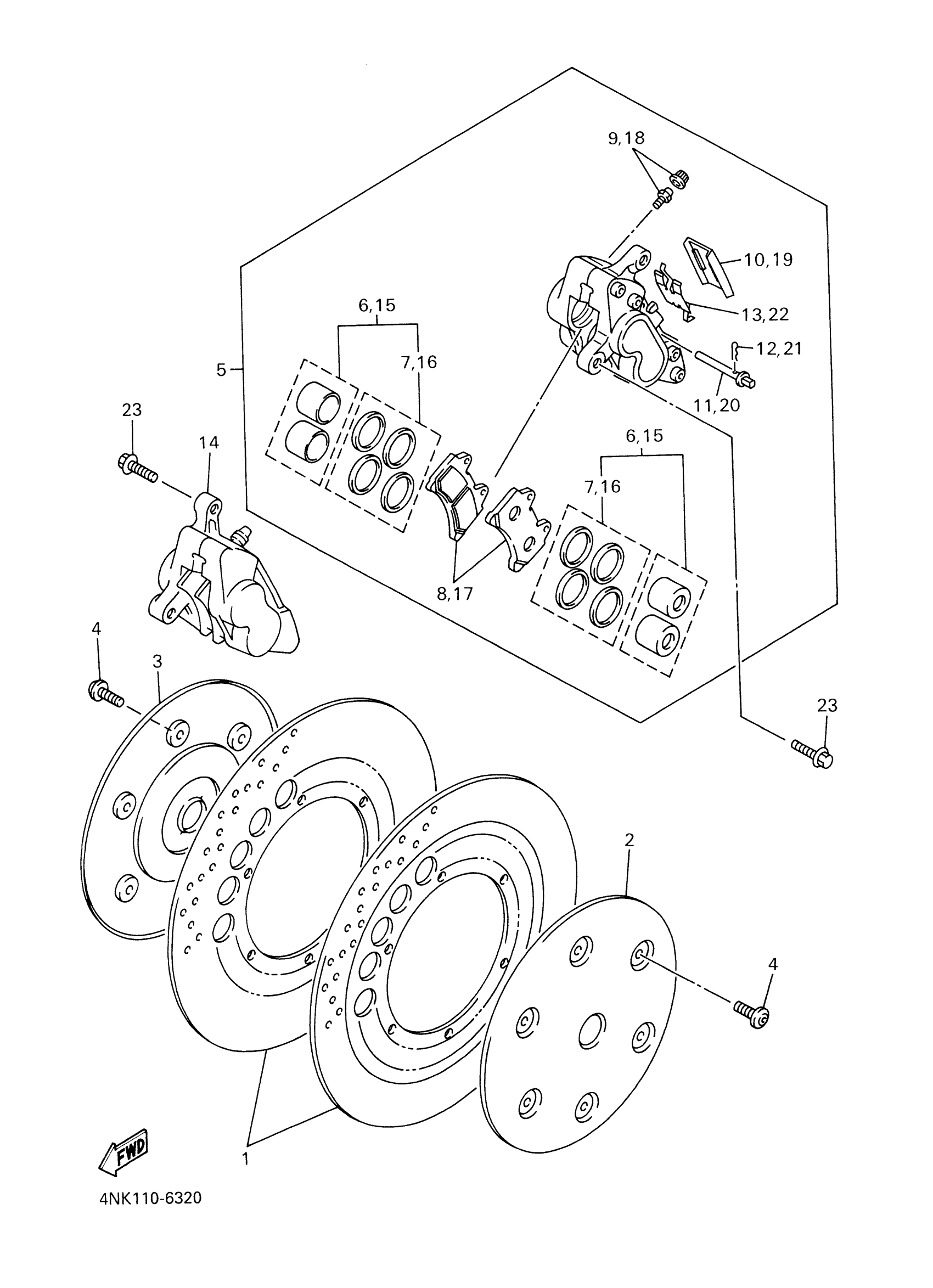

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

RING, WHEEL 1 (LEFT)

RING, WHEEL 2 (RIGHT)

BOLT,HEX. SOCKET BUTTON

CALIPER ASSY (LEFT

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BRAKE PAD KIT

BLEED SCREW KIT

COVER, DUST

PIN, PAD

CLIP, PAD PIN

SUPPORT, PAD

CALIPER ASSY (RIGH

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BRAKE PAD KIT

BLEED SCREW KIT

COVER, DUST

PIN, PAD

CLIP, PAD PIN

SUPPORT, PAD

BOLT, WASHER BASED(3VD)
