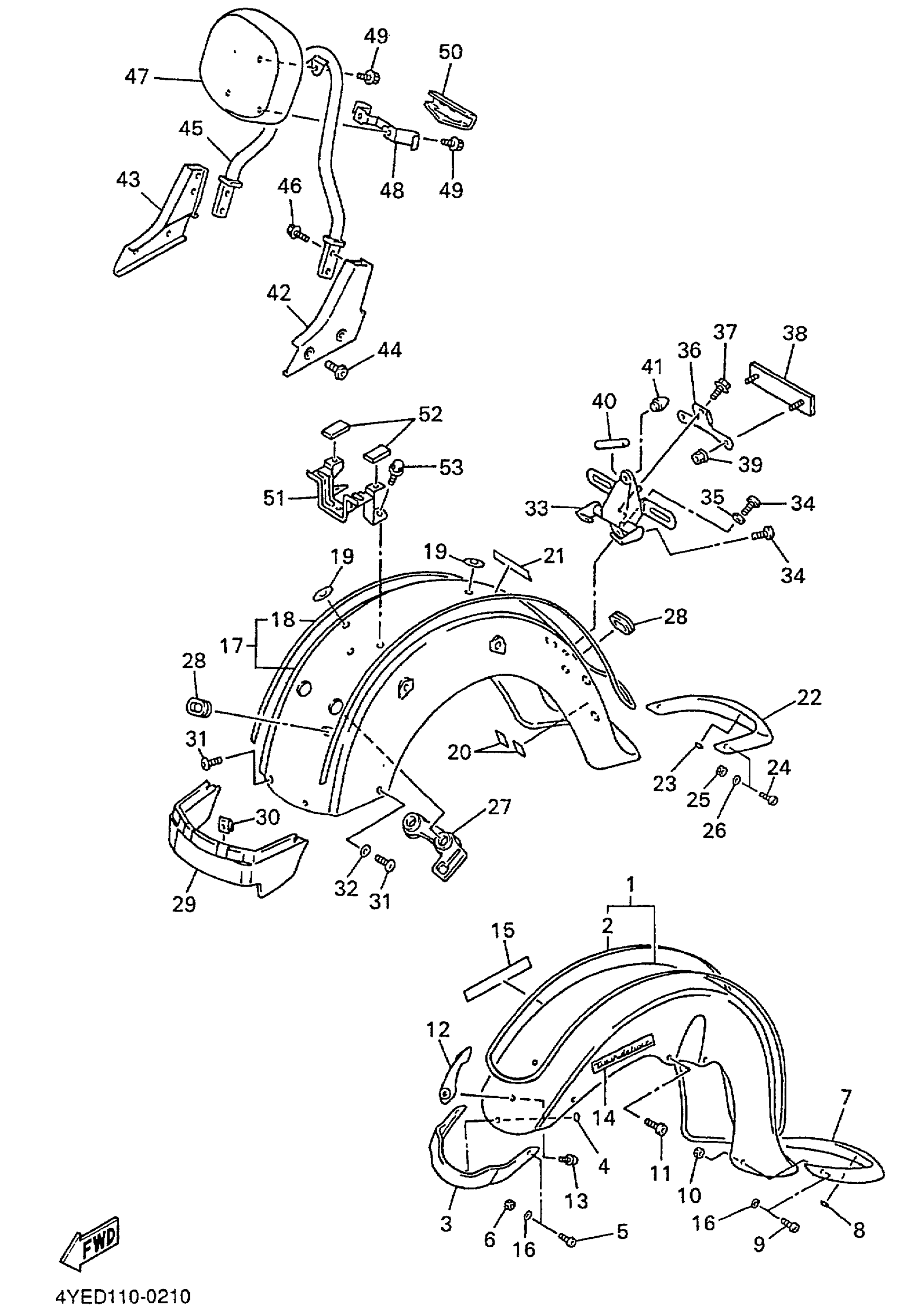

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 FENDER Diagram
#
1
FRONT FENDER ASSY
4NL-Y2150-L0-33
Unavailable
2
. GRAPHIC SET, FRONT FENDER
4NK-21570-90-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
12
MASCOT
4NL-21577-10-00
Unavailable
14
EMBLEM 3
4YE-2152A-00-00
Unavailable
15
EMBLEM
4YE-21578-00-00
Unavailable
16
SEAL 1
4NL-21575-10-00
Unavailable
17
REAR FENDER COMP. (YAMAHA BLACK)
4YE-Y2161-50-33
Unavailable
18
. GRAPHIC SET, REAR FENDER
4NK-2165A-90-00
Unavailable
19
SEAL 2
4NK-21735-00-00
Unavailable
20
PROTECTOR
3MA-27491-00-00
Unavailable
21
EMBLEM, YAMAHA
99247-00080-00
Unavailable
22
FLAP
4NL-21621-10-00
Unavailable
26
SEAL 1
4NL-21575-10-00
Unavailable
27
DAMPER
4NK-21649-00-00
Unavailable
28
GROMMET (438)
90480-15061-00
Unavailable
29
FLAP (YAMAHA BLACK) (MILKY BROWN)
4NK-21621-00-33
Unavailable
30
NUT, SPRING(4ES)
90183-06069-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
32
WASHER, PLATE
90202-06170-00
Unavailable
33
STAY, 9
4YE-2317W-00-00
Unavailable
34
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
35
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
36
BRACKET, REFLECTOR
4NK-21641-00-00
Unavailable
37
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
38
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
39
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
40
HOSE (583)
90446-07114-00
Unavailable
41
DAMPER 2
5A8-21639-00-00
Unavailable
42
GRIP 1
4YE-F164A-00-00
Unavailable
43
GRIP 2
4YE-F164E-00-00
Unavailable
44
BOLT, BUTTON HEAD
92014-08014-00
Unavailable
45
STAY 1
4NL-F164F-10-00
Unavailable
46
BOLT, FLANGE (3JPE)
95024-08016-00
Unavailable
47
BACK REST ASSY
4YE-2840F-01-00
Unavailable
48
STAY 2
4NL-F164G-00-00
Unavailable
49
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
50
EMBLEM
5GA-24786-01-00
Unavailable
51
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
52
DAMPER, SEAT
509-24724-00-00
Unavailable
53
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
