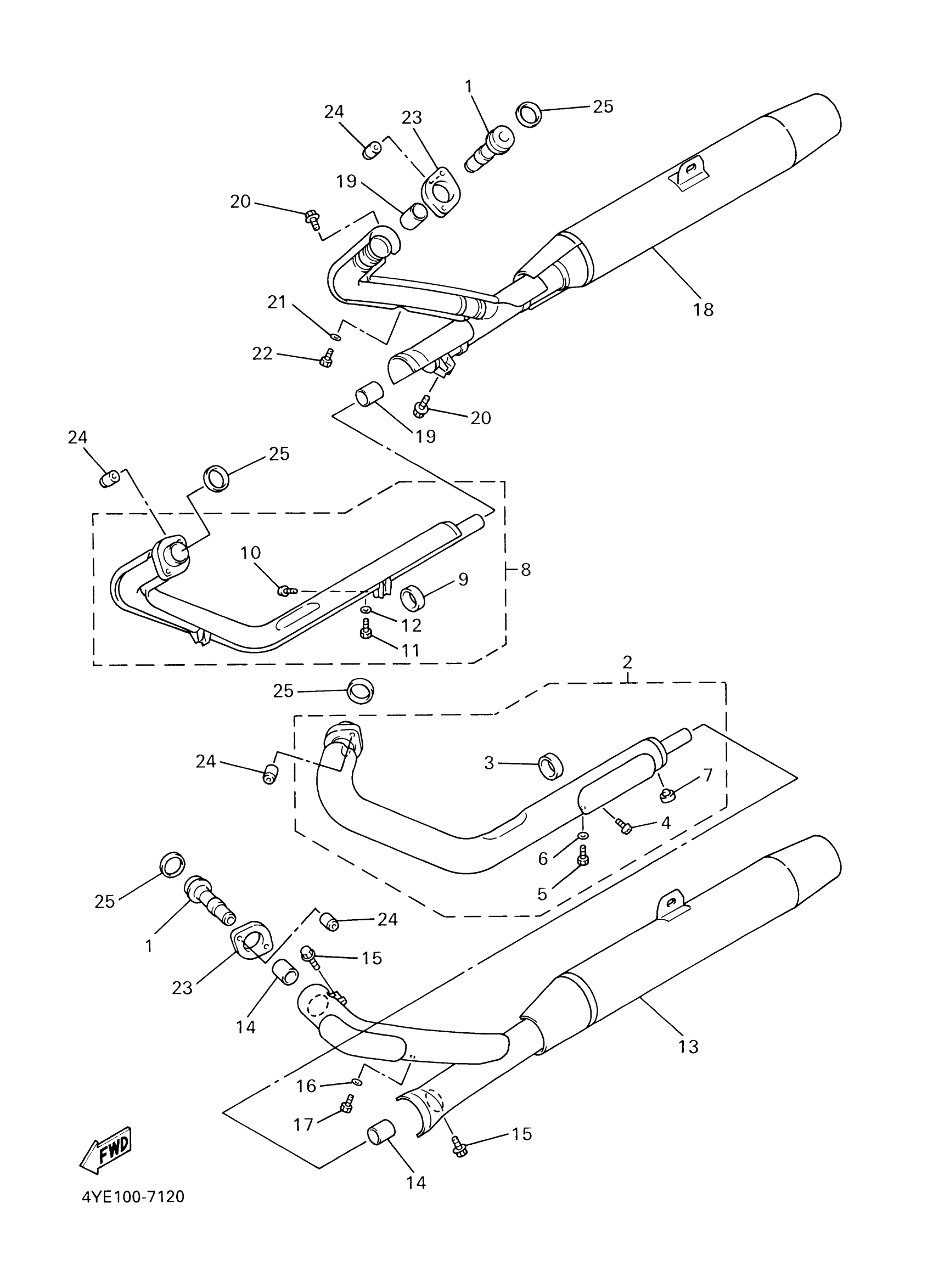

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 EXHAUST Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE

4YE-14614-00-00

Unavailable

2

EXHAUST PIPE ASSY 2

4YE-14620-00-00

Unavailable

3

GASKET, MUFFLER

4NK-14714-00-00

$27.99

4

BOLT, BUTTON

92017-08025-00

$8.49

5

BOLT (FJ1)

97080-06008-00

$2.34

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

STOPPER, MAIN STAND

116-27114-00-00

$10.99

8

EXHAUST PIPE ASSY 4

4YE-14650-00-00

Unavailable

9

GASKET, MUFFLER

4NK-14714-00-00

$27.99

10

BOLT, BUTTON

92017-08025-00

$8.49

11

BOLT (FJ1)

97080-06008-00

$2.34

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

MUFFLER COMP. 1

4YE-14703-01-00

Unavailable

14

GASKET, MUFFLER

4BH-14714-00-00

$45.99

15

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

16

WASHER, PLAIN (646)

92990-06600-00

$2.80

17

BOLT (FJ1)

97080-06008-00

$2.34

18

MUFFLER COMP. 2

4YE-14704-01-00

Unavailable

19

GASKET, MUFFLER

4BH-14714-00-00

$45.99

20

BOLT, FLANGE(2UJ)

95024-08020-00

$8.49

21

WASHER, PLAIN (646)

92990-06600-00

$2.80

22

BOLT (FJ1)

97080-06008-00

$2.34

23

NUT, RING

4KG-14612-01-00

Unavailable

24

NUT

90179-08442-00

Unavailable

25

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable
