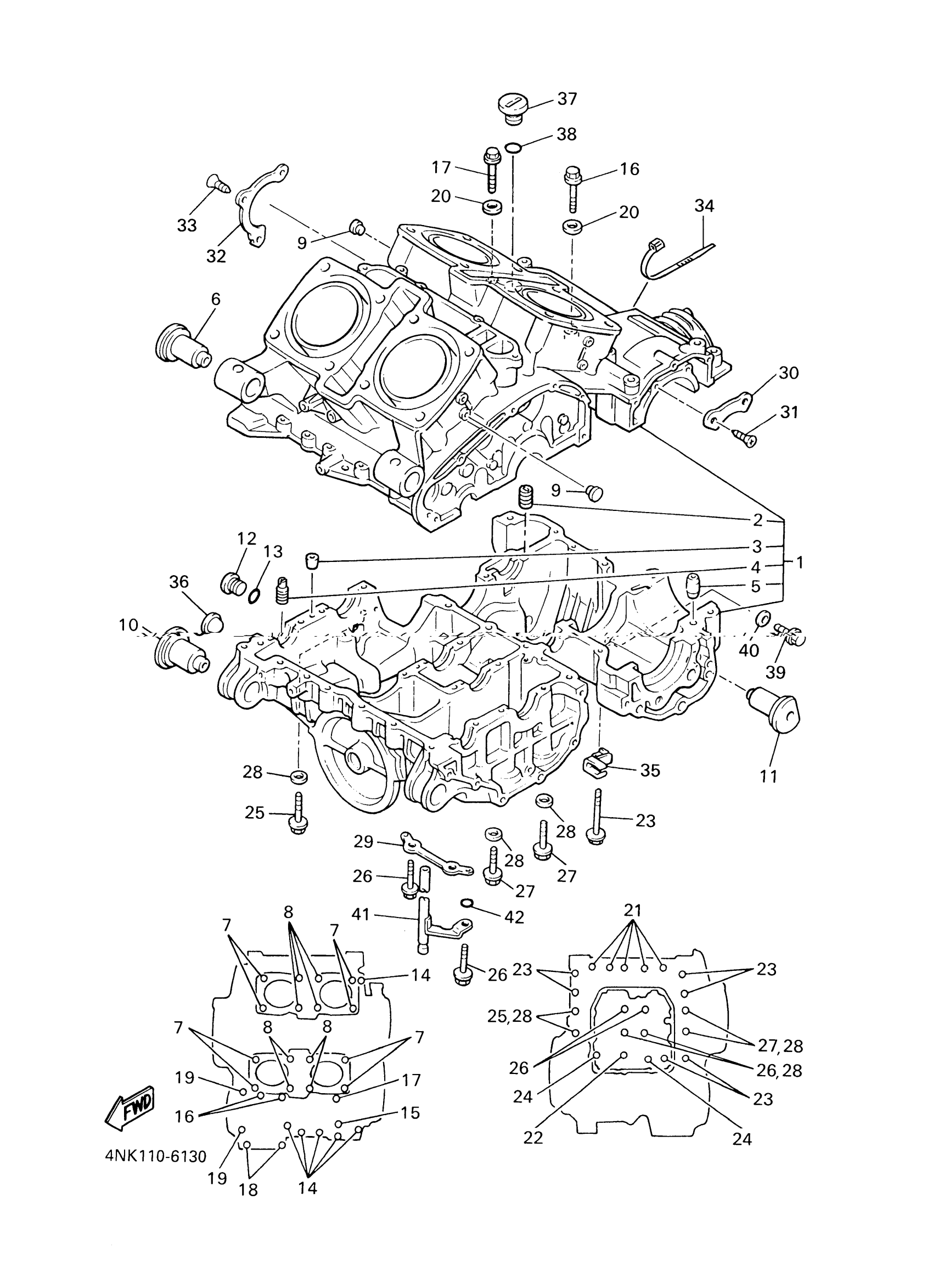

Yamaha XVZ1300LTMC (ROYAL STAR TOUR DELUXE CA) 4YEE 2000 CRANKCASE Diagram

CRANKCASE ASSY

4NK-15100-00-00

Unavailable

NOZZLE 1

26H-15138-00-00

$9.99

NOZZLE 2

26H-15148-00-00

Unavailable

. NOZZLE 1

4NK-15138-00-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

$29.99

BOLT, STUD (26H)

90116-10411-00

$13.49

BOLT, STUD (26H)

90116-10411-00

$13.49

PLUG (26H)

90338-11152-00

$18.99

DAMPER, ENGINE MOUNT 3

1AA-15336-01-00

$29.99

DAMPER, ENGINE MOUNT 2

1AA-15326-00-00

Unavailable

PLUG

4H7-15189-00-00

$30.99

O-RING (713)

93210-22382-00

$8.49

BOLT, FLANGE(4EB)

95814-06045-00

$2.82

BOLT, FLANGE(3JP)

95814-06070-00

$8.49

BOLT, FLANGE(3JP)

95814-06090-00

Unavailable

BOLT, FLANGE

95817-06095-00

Unavailable

BOLT, FLANGE

95814-08045-00

Unavailable

BOLT, FLANGE

95814-08080-00

Unavailable

GASKET (4V2)

90430-06166-00

Unavailable

BOLT, FLANGE

95817-08050-00

Unavailable

BOLT, WASHER BASED

90105-084A1-00

Unavailable

BOLT, FLANGE

95814-08080-00

Unavailable

BOLT, FLANGE(8BT)

95817-08095-00

Unavailable

BOLT(3JP)

90109-103G0-00

Unavailable

BOLT, WASHER BASED (26H)

90105-10248-00

Unavailable

BOLT, WASHER BASED (26H)

90105-10249-00

Unavailable

WASHER PLATE 256111740000

90201-10131-00

Unavailable

PLATE

26H-15113-00-00

Unavailable

PLATE, BEARING COVER

26H-15381-00-00

Unavailable

SCREW

90149-08013-00

Unavailable

PLATE, BEARING COVER

26H-15383-00-00

Unavailable

SCREW, FLAT HEAD(4EM)

98707-06016-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP (26H)

90465-08233-00

Unavailable

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

PLUG, OIL

4NK-15363-00-00

Unavailable

O-RING(1KT)

93210-27778-00

Unavailable

BOLT, FLANGE(4GY)

95817-12016-00

Unavailable

WASHER, PLATE

90201-12790-00

Unavailable

PIPE, BREATHER

26H-15373-00-00

Unavailable

O-RING(26H)

93210-06667-00

Unavailable
