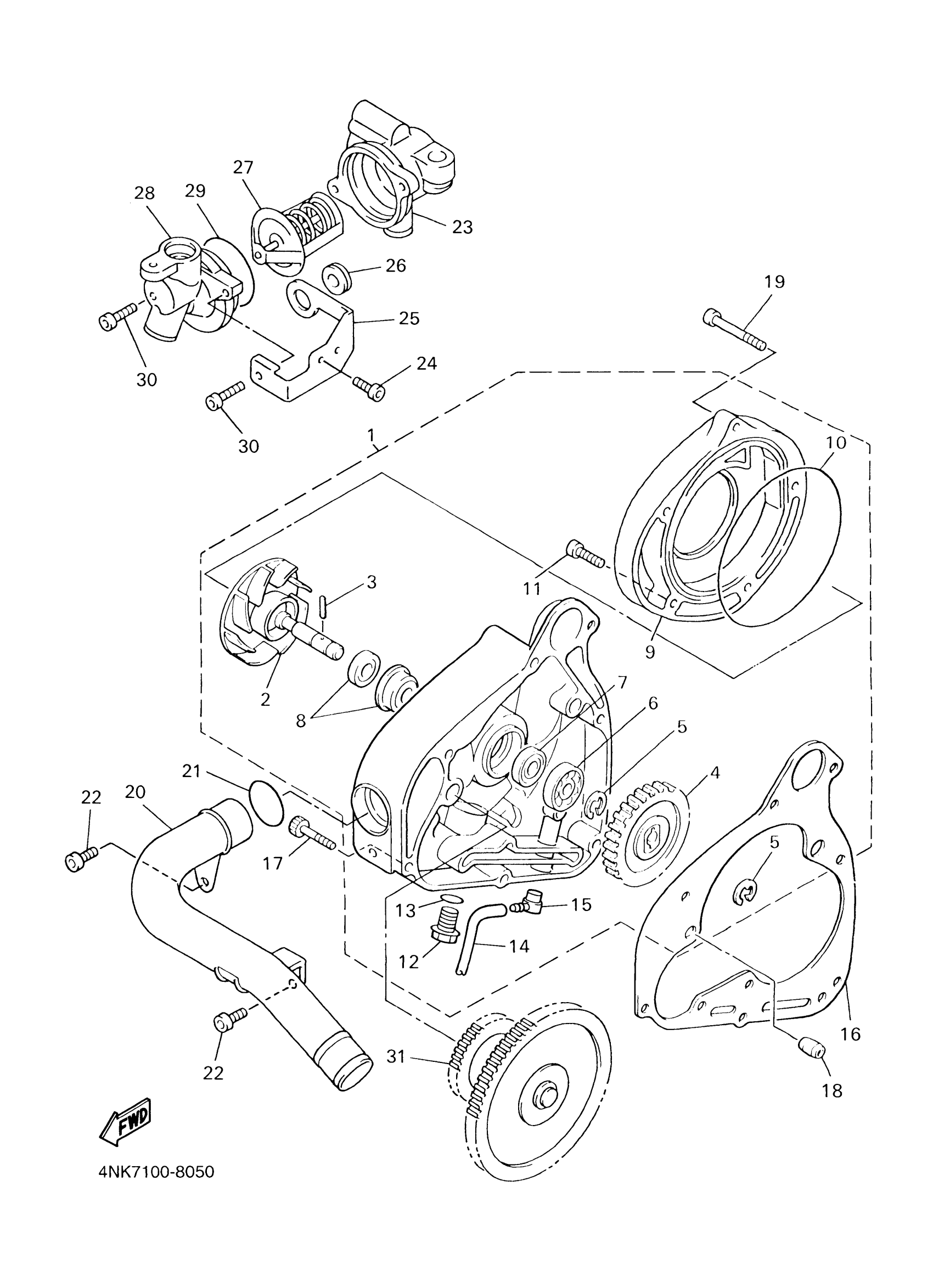

Yamaha XVZ1300ATMC (ROYAL STAR TOUR CLASSIC CA) 5EJB 2000 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

4NK-12420-03-00

Unavailable

2

INPELLER SHAFT ASSY

1FK-12450-00-00

$122.99

3

PIN, DOWEL

93603-14026-00

$8.49

4

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

5

CIRCLIP(10W)

99009-10400-00

$4.73

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

7

OIL SEAL (J10)

93101-10090-00

$8.49

8

SEAL, MECHANICAL

11H-12438-10-00

$62.99

9

COVER, HOUSING

4NK-Y124E-02-00

$311.99

10

O-RING (26H)

93211-16591-00

$15.99

11

BOLT, SOCKET

91314-06030-00

$8.49

12

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

13

GASKET

214-11198-01-00

$3.17

14

HOSE (L200)

90445-05N13-00

$8.49

15

NOZZLE

353-13552-01-00

$9.99

16

GASKET, WATER PUMP

4NK-12449-00-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

BOLT, SOCKET

91314-06080-00

Unavailable

20

PIPE 3

4NK-12483-00-00

Unavailable

21

O-RING(1LT)

93210-23787-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

23

HOUSING, THERMOSTAT

4NK-12417-00-00

Unavailable

24

BOLT,SOCKET

91317-06016-00

Unavailable

25

BRACKET 1

4NK-1244E-00-00

Unavailable

26

GROMMET (4L0)

90480-18276-00

Unavailable

27

THERMOSTAT ASSY

1AE-12410-01-00

Unavailable

28

COVER, THERMOSTAT

4NK-12413-00-00

Unavailable

29

O-RING (620)

93210-49046-00

Unavailable

30

BOLT,SOCKET

91317-06020-00

Unavailable

31

IMPELLER SHAFT ASSY

4NK-12450-00-00

Unavailable
