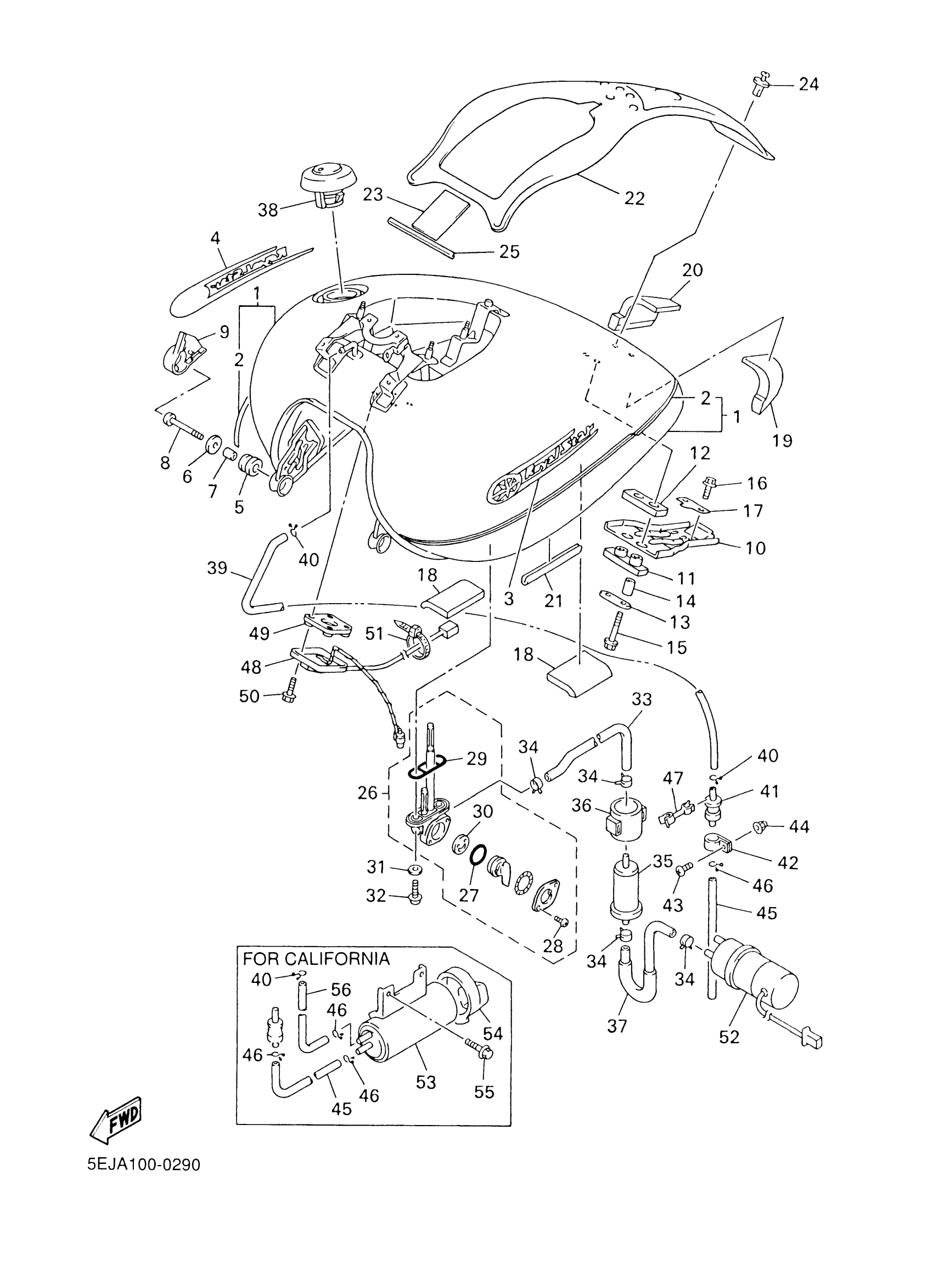

Yamaha XVZ1300ATMC (ROYAL STAR TOUR CLASSIC CA) 5EJB 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (YAMAHA BLACK)

4NK-Y2410-10-04

Unavailable

2

. GRAPHIC SET

4YE-24240-60-00

Unavailable

3

EMBLEM 1

4NK-24161-00-00

Unavailable

4

EMBLEM 2

4NK-24162-00-00

Unavailable

5

GROMMET(4AA)

90480-18549-00

$10.49

6

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

7

COLLAR 849833160000

90387-06027-00

$8.49

8

BOLT, BUTTON

92017-06035-00

$3.13

9

COVER, SIDE 1

4NK-24129-00-00

Unavailable

10

BRACKET, FUEL TANK 1

4NK-24191-00-00

Unavailable

11

DAMPER, LOCATING 1

2GH-24181-00-00

Unavailable

12

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

13

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

14

COLLAR (1T2)

90387-07598-00

$5.60

15

BOLT, FLANGE

95817-06025-00

Unavailable

16

BOLT, FLANGE

95817-06014-00

Unavailable

17

WASHER, SPECIAL

4NK-24186-00-00

Unavailable

18

DAMPER, LOCATING 1

4NK-24181-00-00

Unavailable

19

DAMPER, LOCATING 2

4NK-24182-00-00

Unavailable

20

DAMPER, LOCATING 3

4NK-24183-00-00

Unavailable

21

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

22

COVER, TOP

5EJ-F171A-00-00

Unavailable

23

DAMPER, PLATE 1

5EJ-2414H-00-00

Unavailable

24

RIVET(4JH)

90269-07076-00

Unavailable

25

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

26

FUEL COCK ASSY 1

4WM-24500-10-00

Unavailable

27

SEAL, COCK

3AJ-24534-01-00

Unavailable

28

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

29

O-RING

4X8-24512-00-00

Unavailable

30

VALVE PACKING

3AC-24523-00-00

Unavailable

31

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

32

SCREW 256241430000

90149-06011-00

Unavailable

33

PIPE, FUEL 1

4NK-24311-01-00

Unavailable

34

CLIP (7K7)

90467-11044-00

Unavailable

35

FILTER ASSY

1FK-24560-10-00

Unavailable

36

BRACKET, FILTER

1FK-24566-00-00

Unavailable

37

PIPE 2

4NK-24312-00-00

Unavailable

38

CAP ASSY

4NK-24602-20-00

Unavailable

39

PIPE 10

4NK-24321-02-00

Unavailable

40

CLIP

90467-100A1-00

Unavailable

40

CLIP

90467-100A1-00

Unavailable

41

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

42

CLAMP

90464-15014-00

Unavailable

43

SCREW, BINDING

98907-05012-00

Unavailable

44

NUT, CROWN(47X)

90176-05054-00

Unavailable

45

HOSE (L400)

90445-116K9-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

47

CLAMP(2YK)

90464-13103-00

Unavailable

48

SENDER UNIT ASSY,

4NK-85752-01-00

Unavailable

49

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

50

BOLT, WITH WASHER

90119-05071-00

Unavailable

51

CLAMP(4FM)

90464-15195-00

Unavailable

52

FUEL PUMP COMP.

4NK-13907-01-00

Unavailable

53

CANISTER ASSY

1UL-24170-00-00

Unavailable

54

COVER, CANISTER

2JU-2419E-00-00

Unavailable

55

BOLT, FLANGE

95817-06010-00

Unavailable

56

HOSE

90445-113K3-00

Unavailable
