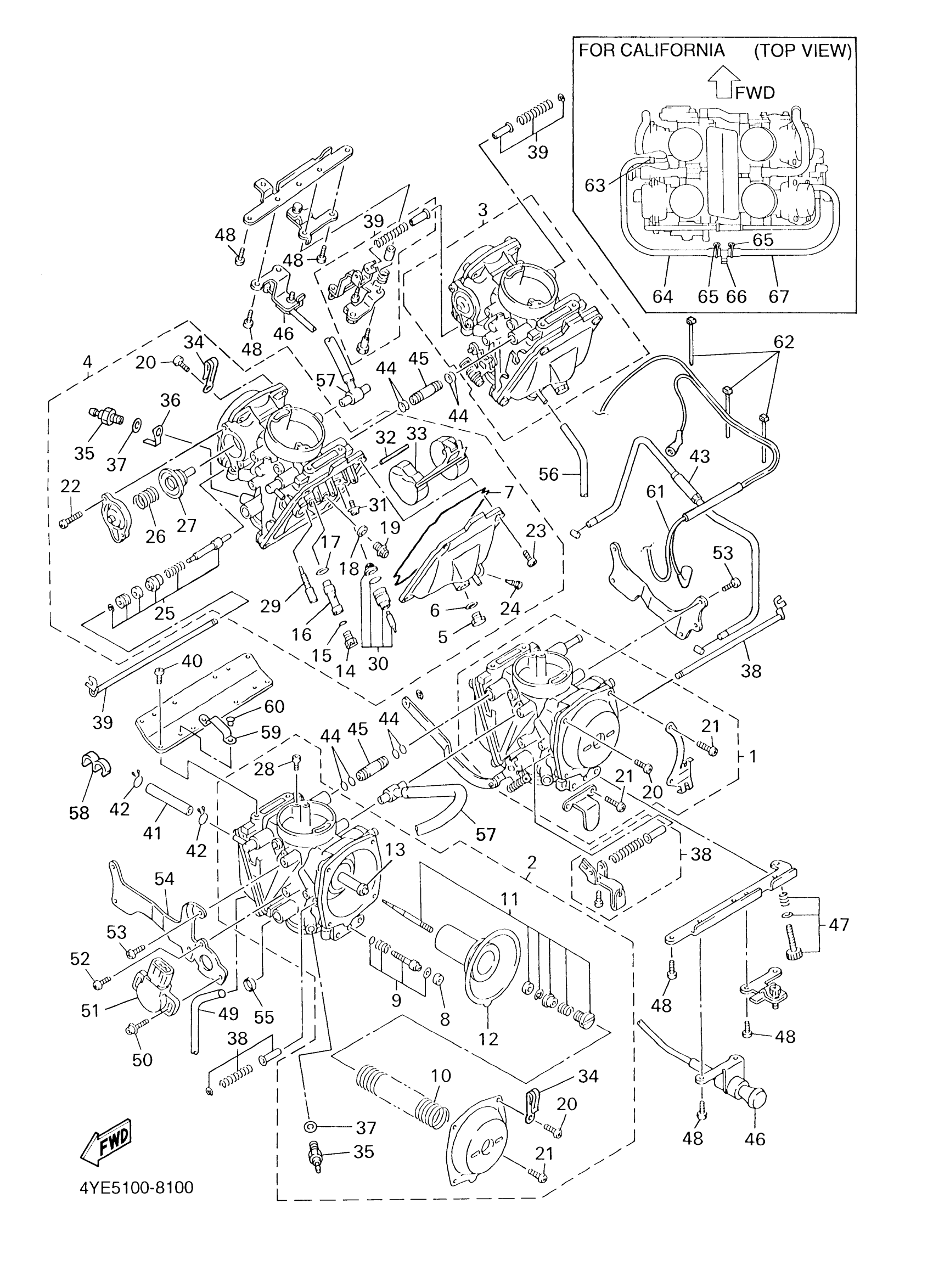

Yamaha XVZ1300ATMC (ROYAL STAR TOUR CLASSIC CA) 5EJB 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4NK-14901-20-00

Unavailable

1

CARBURETOR ASSY 1

4NK-14901-30-00

Unavailable

2

CARBURETOR ASSY 2

4NK-14902-20-00

Unavailable

2

CARBURETOR ASSY 2

4NK-14902-30-00

Unavailable

3

CARBURETOR ASSY 3

4NK-14903-20-00

Unavailable

3

CARBURETOR ASSY 3

4NK-14903-30-00

Unavailable

4

CARBURETOR ASSY 4

4NK-14904-20-00

Unavailable

4

CARBURETOR ASSY 4

4NK-14904-30-00

Unavailable

5

PLUG, SCREW

22U-14115-00-00

$16.49

6

.. O-RING

22U-14561-00-00

Unavailable

7

O-RING

1HX-14147-00-00

$22.99

8

CAP

3F9-14118-00-00

Unavailable

9

PILOT SCREW SET

3KW-14105-00-00

$19.99

10

. SPRING, DIAPHRAGM

3KW-14933-00-00

Unavailable

11

. NEEDLE SET

4NK-1490J-00-00

Unavailable

12

DIAPHRAGM ASSY

4NK-14940-00-00

Unavailable

13

MAIN NOZZLE(0-0)

3DM-14141-30-00

Unavailable

14

JET, MAIN (# 95)

3G2-14231-19-00

Unavailable

15

O-RING

1AE-14227-00-00

Unavailable

16

HOLDER

1AE-14261-00-00

Unavailable

17

GASKET

1AE-14237-00-00

Unavailable

18

WASHER,MAIN JET

137-14153-00-00

Unavailable

19

SCREW

1HX-14565-00-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

21

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

22

SCREW, PAN HEAD

98517-04012-00

Unavailable

23

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

24

PLUG, DRAIN

12R-14191-00-00

Unavailable

25

STARTER SET

4DN-1410A-01-00

Unavailable

26

. SPRING

4NK-14935-00-00

Unavailable

27

DIAPHRAGM ASSY

22V-14940-00-00

Unavailable

28

. JET, MAIN (1175)

1HX-1423A-74-00

Unavailable

29

JET, PILOT (#17.5)

22F-14142-17-00

Unavailable

30

NEEDLE VALVE SET

3CF-14107-15-00

Unavailable

31

SCREW

1FN-14565-00-00

Unavailable

32

PIN, FLOAT

353-14186-00-00

Unavailable

33

FLOAT

1HX-14985-00-00

Unavailable

34

PLATE

3XV-14243-00-00

Unavailable

35

HEATER ASSY

4EB-83790-00-00

Unavailable

36

TERMINAL 1

4DH-82103-00-00

Unavailable

37

WASHER, PLATE

90201-08016-00

Unavailable

38

STARTER LEVER SET, 1

4NK-1490L-00-00

Unavailable

39

STARTER LEVER SET, 1

4NK-1490L-10-00

Unavailable

40

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

41

PIPE

4NK-14396-00-00

Unavailable

42

CLIP

4NK-14137-00-00

Unavailable

43

CABLE

4NK-14130-00-00

Unavailable

44

O-RING

36Y-14147-00-00

Unavailable

45

NIPPLE

1WG-14251-00-00

Unavailable

46

CABLE

4NK-14130-12-00

Unavailable

47

THROTTLE SCREW SET

4NK-14103-00-00

Unavailable

48

SCREW, PAN

98517-05012-00

Unavailable

49

PIPE

3JD-14197-00-00

Unavailable

50

SCREW

4KM-24453-00-00

Unavailable

51

THROTTLE SENSOR ASSY

4NK-85885-00-00

Unavailable

52

SCREW,FLAT

98707-05008-00

Unavailable

53

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

54

BRACKET

4NK-14867-00-00

Unavailable

55

SEAL

4HM-14239-00-00

Unavailable

56

PIPE

3JE-14197-00-00

Unavailable

57

PIPE

4NK-14349-20-00

Unavailable

58

CLAMP(6M7)

90464-09M31-00

Unavailable

59

PLATE

4NK-14243-00-00

Unavailable

60

PIN, FLOAT

4NK-14386-00-00

Unavailable

61

WIRE, SUB LEAD

4WY-81517-00-00

Unavailable

62

CLIP, PIPE

35H-14139-00-00

Unavailable

63

CLIP

55X-14937-00-00

Unavailable

64

HOSE

4NK-14987-00-00

Unavailable

65

CLIP

90467-100A1-00

Unavailable

66

PIPE, JOINT

3H3-24376-00-00

Unavailable

67

HOSE

4NK-14987-10-00

Unavailable
