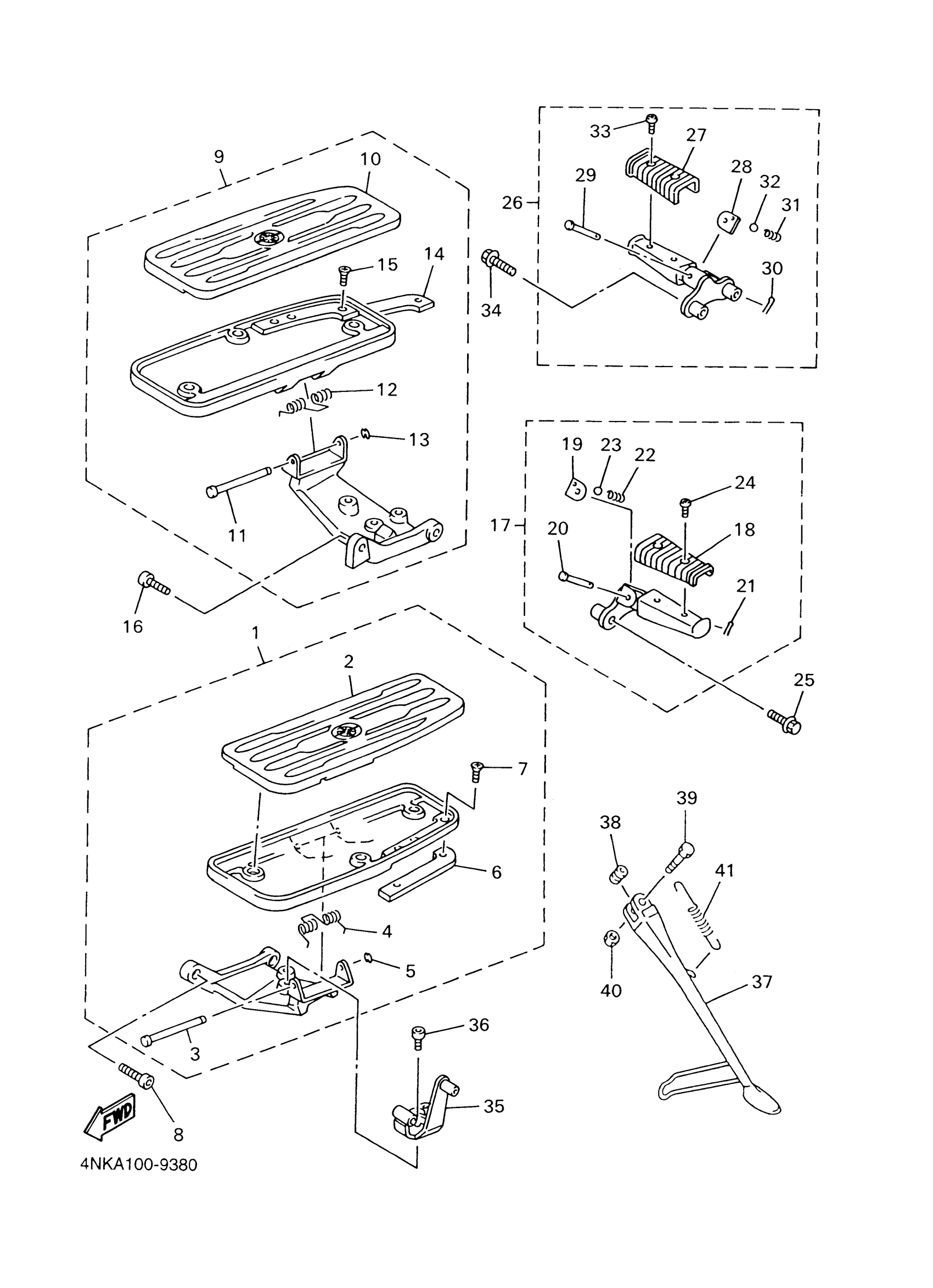

Yamaha XVZ1300ANC (ROYAL STAR BOULEVARD CA) 4NKH 2001 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

4XY-27410-10-00

Unavailable

2

COVER, FOOTREST

4XY-27413-01-00

Unavailable

3

SHAFT

3D8-27427-00-00

$7.99

4

SPRING, RETURN

4NK-27426-00-00

$6.99

5

CIRCLIP(53L)

99001-06600-00

$1.01

6

MOLE 1

4NK-27496-00-00

$25.99

7

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

8

BOLT, SOCKET

91317-10030-00

$9.49

9

FRONT FOOTREST ASSY (RIGHT)

4XY-27420-10-00

Unavailable

10

COVER, FOOTREST

4XY-27423-01-00

Unavailable

11

SHAFT

3D8-27427-00-00

$7.99

12

SPRING, RETURN

4NK-27426-00-00

$6.99

13

CIRCLIP(53L)

99001-06600-00

$1.01

14

MOLE 2

4NK-27497-00-00

Unavailable

15

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

16

BOLT, SOCKET

91317-10030-00

$9.49

17

REAR FOOTREST ASSY 1

4NK-27430-00-00

Unavailable

18

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

19

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

20

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

21

PIN, COTTER

91490-16020-00

Unavailable

22

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

23

BALL

93501-04011-00

Unavailable

24

SCREW, PAN

98517-06012-00

Unavailable

25

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

26

REAR FOOTREST ASSY 2

4NK-27440-00-00

Unavailable

27

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

28

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

29

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

30

PIN, COTTER

91490-16020-00

Unavailable

31

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

32

BALL

93501-04011-00

Unavailable

33

SCREW, PAN

98517-06012-00

Unavailable

34

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

35

BRACKET 3

4NK-27443-00-00

Unavailable

36

BOLT, SOCKET

91317-08014-00

Unavailable

37

STAND, SIDE

4NK-27311-01-00

Unavailable

38

COLLAR(4NK)

90387-1007K-00

Unavailable

39

BOLT(M35)

90101-10776-00

Unavailable

40

NUT, U

90185-10037-00

Unavailable

41

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
