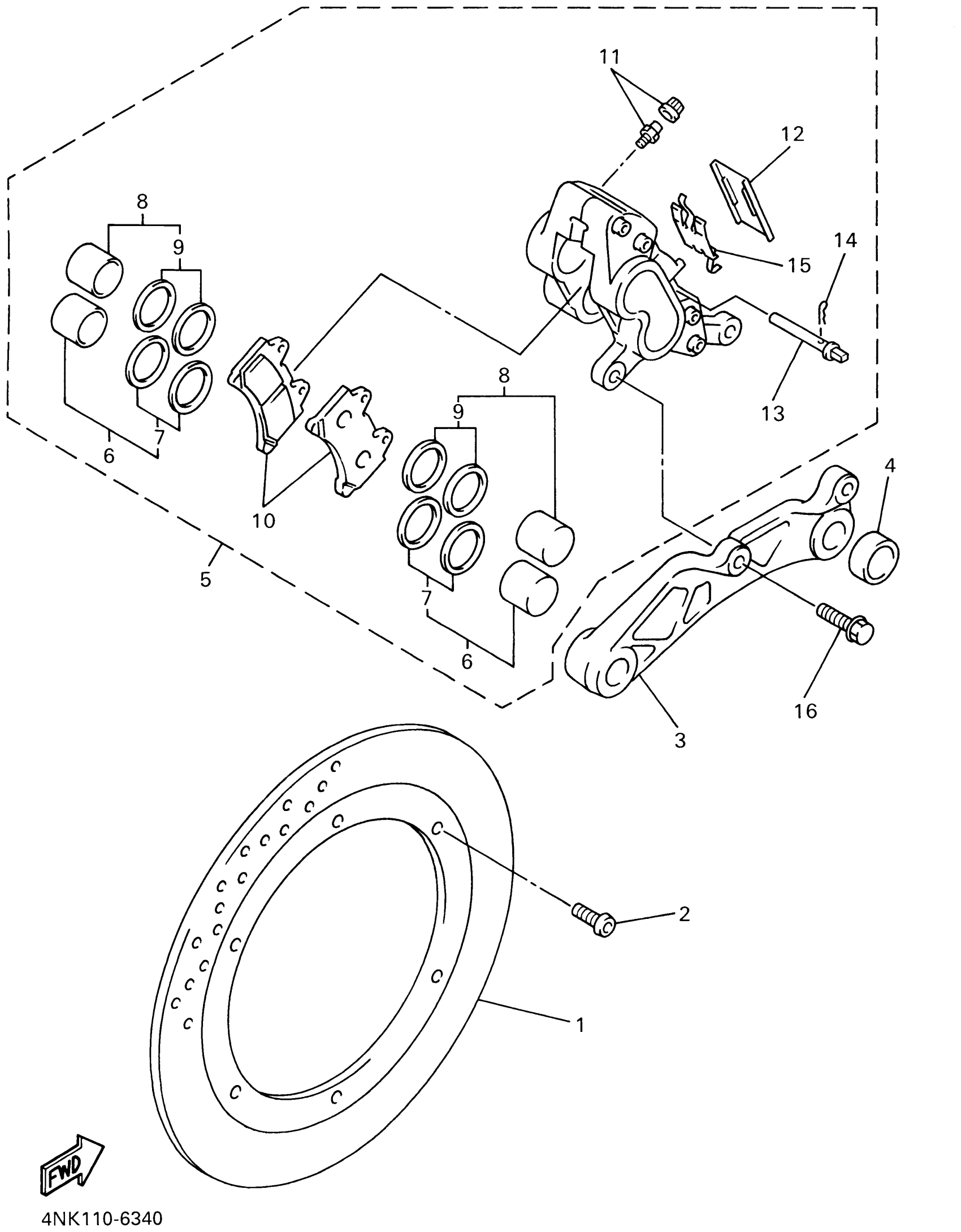

Yamaha XVZ1300ANC (ROYAL STAR BOULEVARD CA) 4NKH 2001 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4NK-2582W-00-00

$392.99

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

BRACKET, CALIPER

4NK-25819-00-00

Unavailable

DAMPER, BRAKE

4NK-25673-00-00

Unavailable

CALIPER ASSY, REAR 2

4NK-2580W-01-00

Unavailable

PISTON ASSY, CALIPER

1KT-25802-00-00

$193.99

CALIPER SEAL KIT

1KT-25803-00-00

$58.99

PISTON ASSY, CALIPER

4NK-25802-00-00

Unavailable

CALIPER SEAL KIT

4NK-25803-00-00

$62.99

BRAKE PAD KIT 2

4NK-W0046-00-00

$57.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

1NL-25836-01-00

$36.99

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

SUPPORT, PAD

1NL-25919-00-00

$24.99

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
