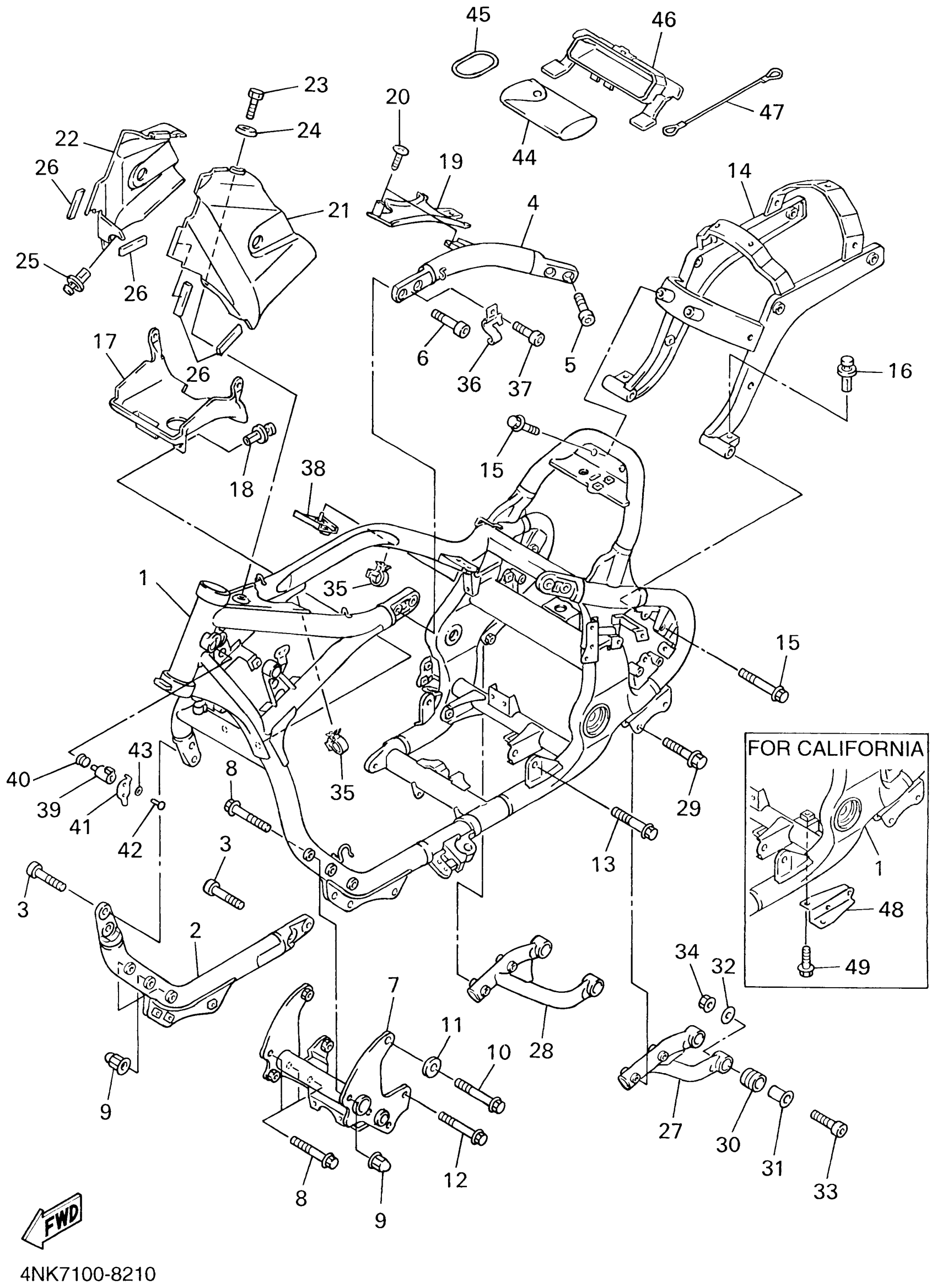

Yamaha XVZ1300ANC (ROYAL STAR BOULEVARD CA) 4NKH 2001 FRAME Diagram
#
1
FRAME COMP.
4NK-21110-11-33
Unavailable
1
FRAME COMP.
4YU-21110-01-33
Unavailable
4
FRAME, REAR
4NK-21120-10-33
Unavailable
7
CROSS BAR COMPLETE
4NK-2141V-00-00
Unavailable
8
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
11
WASHER(4NK)
90209-12341-00
Unavailable
14
REAR FRAME COMP.
4XY-21190-02-00
Unavailable
15
BOLT, WASHER BASED (2H9)
90105-10115-00
Unavailable
16
RIVET(4JH)
90269-07076-00
Unavailable
17
COVER
4NK-2117F-00-00
Unavailable
18
RIVET(52W)
90269-05049-00
Unavailable
19
COVER 2
4NK-2117M-01-00
Unavailable
20
SCREW, TRUSS TAP.
97707-60016-00
Unavailable
21
COVER, SIDE 5
4NK-2171E-00-33
Unavailable
22
COVER, SIDE 6
4NK-2171X-00-33
Unavailable
23
BOLT(4TW)
97017-05016-00
Unavailable
24
WASHER
90209-06012-00
Unavailable
25
RIVET(4JH)
90269-07076-00
Unavailable
26
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
27
STAY, MUFFLER 1
4NK-21445-00-00
Unavailable
28
STAY, MUFFLER 2
4NK-21446-00-00
Unavailable
29
BOLT, FLANGE
98514-08045-00
Unavailable
30
DAMPER, FOOTREST 2
36Y-27424-01-00
Unavailable
31
COLLAR
90387-10048-00
Unavailable
32
WASHER, PLATE (4X7)
90201-105A2-00
Unavailable
33
BOLT,SOCKET
91317-10040-00
Unavailable
34
NUT(6TD)
95337-10600-00
Unavailable
35
CLAMP(4GY)
90464-20191-00
Unavailable
36
CLAMP
4NK-82594-00-00
Unavailable
37
BOLT,SOCKET
91317-06010-00
Unavailable
38
PROTECTOR
4NK-2117G-00-00
Unavailable
39
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
40
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
41
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
42
RIVET 214234830000
90269-04003-00
Unavailable
43
WASHER, CONICAL SPRING (3J3)
90208-04029-00
Unavailable
44
TOOL KIT
4NK-28100-00-00
Unavailable
45
O-RING (4X7)
93210-62446-00
Unavailable
46
BOX, TOOL
4NK-28173-00-00
Unavailable
47
HANGER, HELMET
4YE-21398-00-00
Unavailable
48
BRACKET, CANISTER
4NK-2134X-00-00
Unavailable
49
BOLT, FLANGE
95817-06012-00
Unavailable
