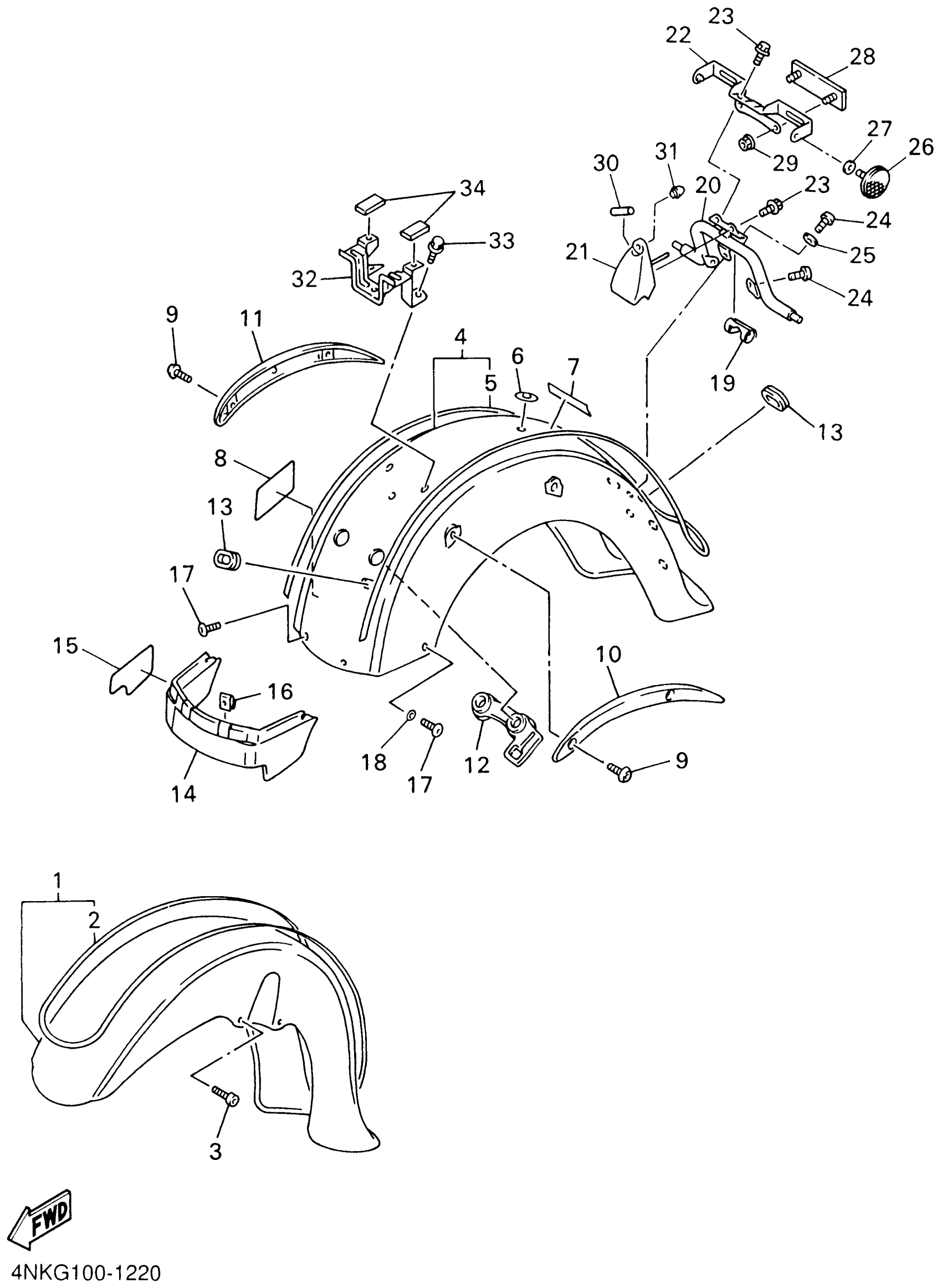

Yamaha XVZ1300ANC (ROYAL STAR BOULEVARD CA) 4NKH 2001 FENDER Diagram
#
1
FRONT FENDER ASSY
4NK-Y2150-H0-33
Unavailable
2
. GRAPHIC SET, FRONT FENDER
4NK-21570-90-00
Unavailable
4
REAR FENDER COMP.
4NK-Y2161-K0-33
Unavailable
5
. GRAPHIC SET, REAR FENDER
4NK-2165A-90-00
Unavailable
8
SEAL
4NK-21268-00-00
Unavailable
10
STAY 1
4NK-2164F-00-00
Unavailable
11
STAY 2
4NK-2164G-00-00
Unavailable
12
DAMPER
4NK-21649-00-00
Unavailable
14
FLAP (YAMAHA BLACK) (MILKY BROWN)
4NK-21621-00-33
Unavailable
15
SEAL
4NK-21269-00-00
Unavailable
16
NUT, SPRING(4ES)
90183-06069-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
18
WASHER, PLATE
90202-06170-00
Unavailable
19
PLUG, BLIND
4NK-83345-00-00
Unavailable
20
STAY, 9
5KS-2317W-00-00
Unavailable
21
BRACKET
5KS-84703-00-00
Unavailable
22
BRACKET, LICENSE
5KS-84751-30-00
Unavailable
23
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
24
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
25
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
26
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
27
WASHER PLATE 829771780000
90201-05033-00
Unavailable
28
REAR REFLECTOR ASSY
8Y7-85130-00-00
Unavailable
29
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
30
HOSE (583)
90446-07114-00
Unavailable
31
DAMPER 2
5A8-21639-00-00
Unavailable
32
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
33
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
34
DAMPER, SEAT
509-24724-00-00
Unavailable
