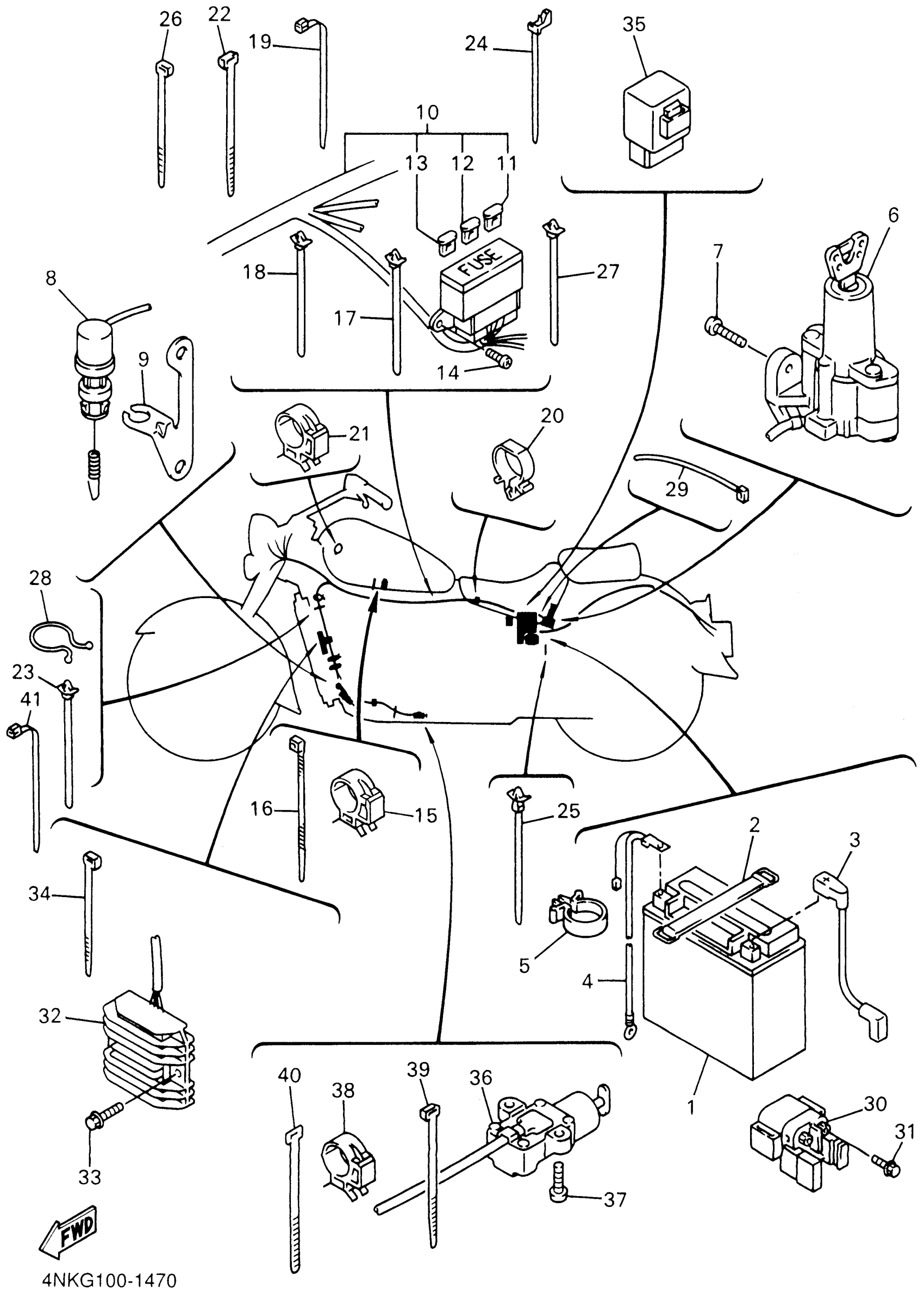

Yamaha XVZ1300ANC (ROYAL STAR BOULEVARD CA) 4NKH 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

2

BAND,BATTERY

7H3-82131-00-00

$14.97

3

WIRE, PLUS LEAD

4NK-82115-00-00

Unavailable

4

WIRE, MINUS LEAD

4JH-82116-00-00

Unavailable

5

CLAMP(3SK)

90464-13133-00

$6.08

6

MAIN SWITCH ASSY

4NK-82510-01-00

Unavailable

7

SCREW(4HM)

90149-06308-00

$6.58

8

STOP SWITCH ASSY

4NK-82530-00-00

Unavailable

9

STAY, STOP SWITCH

4NK-82539-00-00

Unavailable

10

WIRE HARNESS ASSY

4NK-82590-30-00

Unavailable

11

FUSE (10A)

42X-82151-00-00

$2.07

12

FUSE (12V 15A)

36Y-82151-00-00

$3.79

13

FUSE

1NL-82151-00-00

$6.23

14

SCREW, BINDING

98907-06012-00

$6.65

15

CLAMP(4GY)

90464-20191-00

$6.87

16

CLAMP

90465-10098-00

$1.68

17

CLAMP(2TV)

90464-10112-00

Unavailable

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

Unavailable

20

CLAMP(4NK)

90464-24230-00

Unavailable

21

CLAMP(4GY)

90464-10190-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

CLAMP(2TV)

90464-10112-00

Unavailable

24

CLAMP(4GY)

90464-15200-00

Unavailable

25

CLAMP(2TV)

90464-10112-00

Unavailable

26

CLAMP

90464-16061-00

Unavailable

27

CLAMP(2TV)

90464-10112-00

Unavailable

28

CLAMP (8M1)

90464-30040-00

Unavailable

29

CLAMP

90464-16061-00

Unavailable

30

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

31

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

32

RECTIFIER & REGULATOR ASSY

3VD-81960-01-00

Unavailable

33

BOLT, FLANGE

95817-06020-00

Unavailable

34

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

35

RELAY ASSY

3EN-81950-02-00

Unavailable

36

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

37

SCREW, PAN HEAD

98507-05014-00

Unavailable

38

CLAMP(4GY)

90464-10190-00

Unavailable

39

BAND

1UA-82591-00-00

Unavailable

40

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

41

CLAMP(4FM)

90464-15195-00

Unavailable
